DocuColor 12/DCCS50
PL 18.1
Finisher/Sorter
Reissue

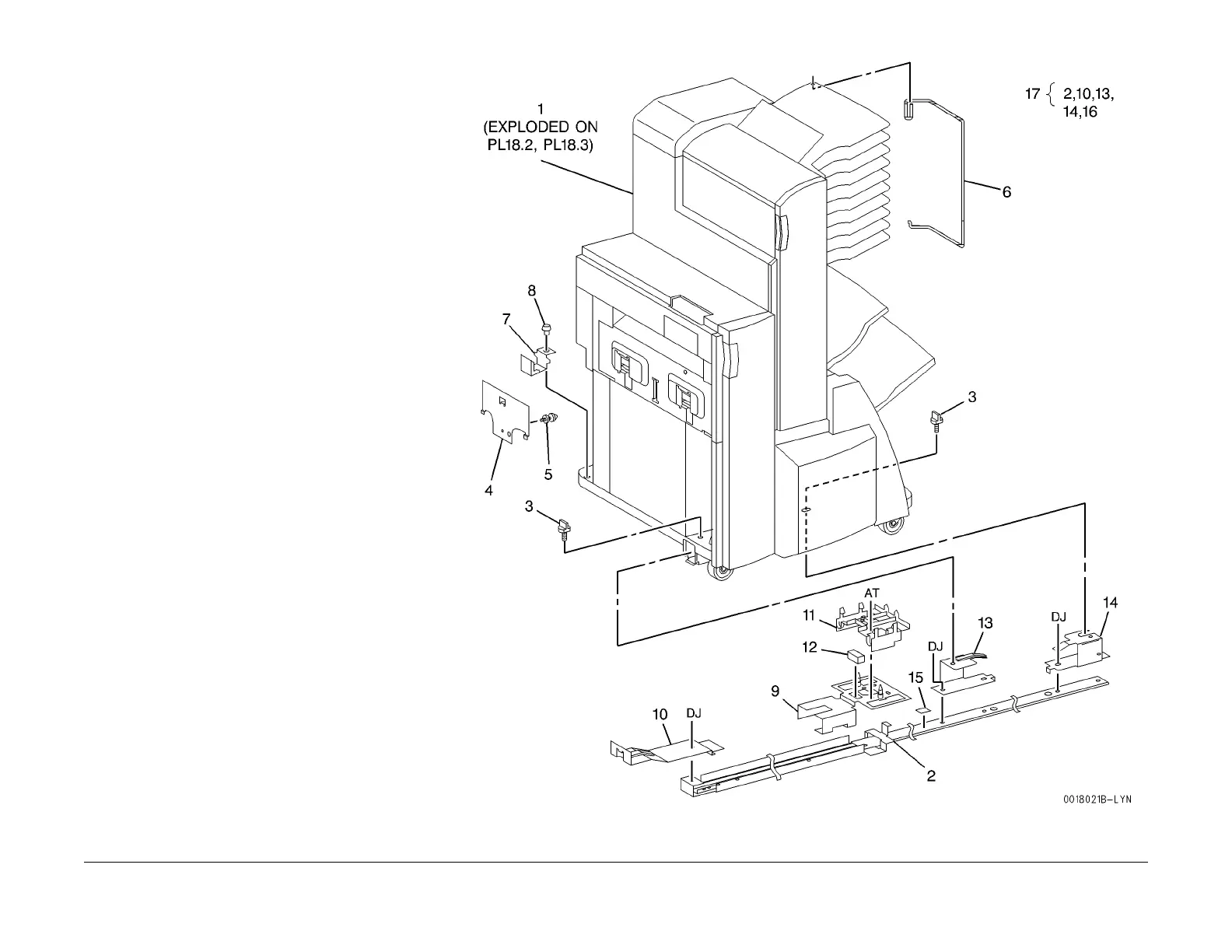

PL 18.1 Finisher Accessory
Item Part Description
1 – Finisher Assembly (Not Spared)
(REP 15.
3.1)
2 015K35862 Docking Rail
3 003K91881 Knob Screw
4 830E19412 Docking Plate
5 029E21610 Docking Pin
6 – Stopper (Not Spared)
7 – Vcci Bracket (Not Spared)
8 – Thumb Screw (Not Spared)
9 015K31860 Rail Bracket
10 015K31871 Plate (Tray Module Left)
11 032E10210 Guide (Tray Module Right)
12 – Gasket (P/O PL 18.1 Item 2)
13 – Bracket (Mailbox Left) (P/O PL 18.1
It
em
2)
14 – Bracket (Mailbox Right) (P/O PL
18.
1 It
em 2)
15 – Label (P/O PL 18.1 Item 2)
16 – Docking Rail (P/O PL 18.1 Item 2)
17 – Rail Assembly (Not Spared)
