Troubleshooting
WorkCentre 7425/7428/7435
User Guide
230
Clearing Booklet Staple Jams in the Professional Finisher
The Professional Finisher uses two staple cartridges labeled R2 and R3. Booklet stapling requires that
both staple cartridges be free of jammed staples.
Warning: Do not perform this procedure when the printer is copying or printing.

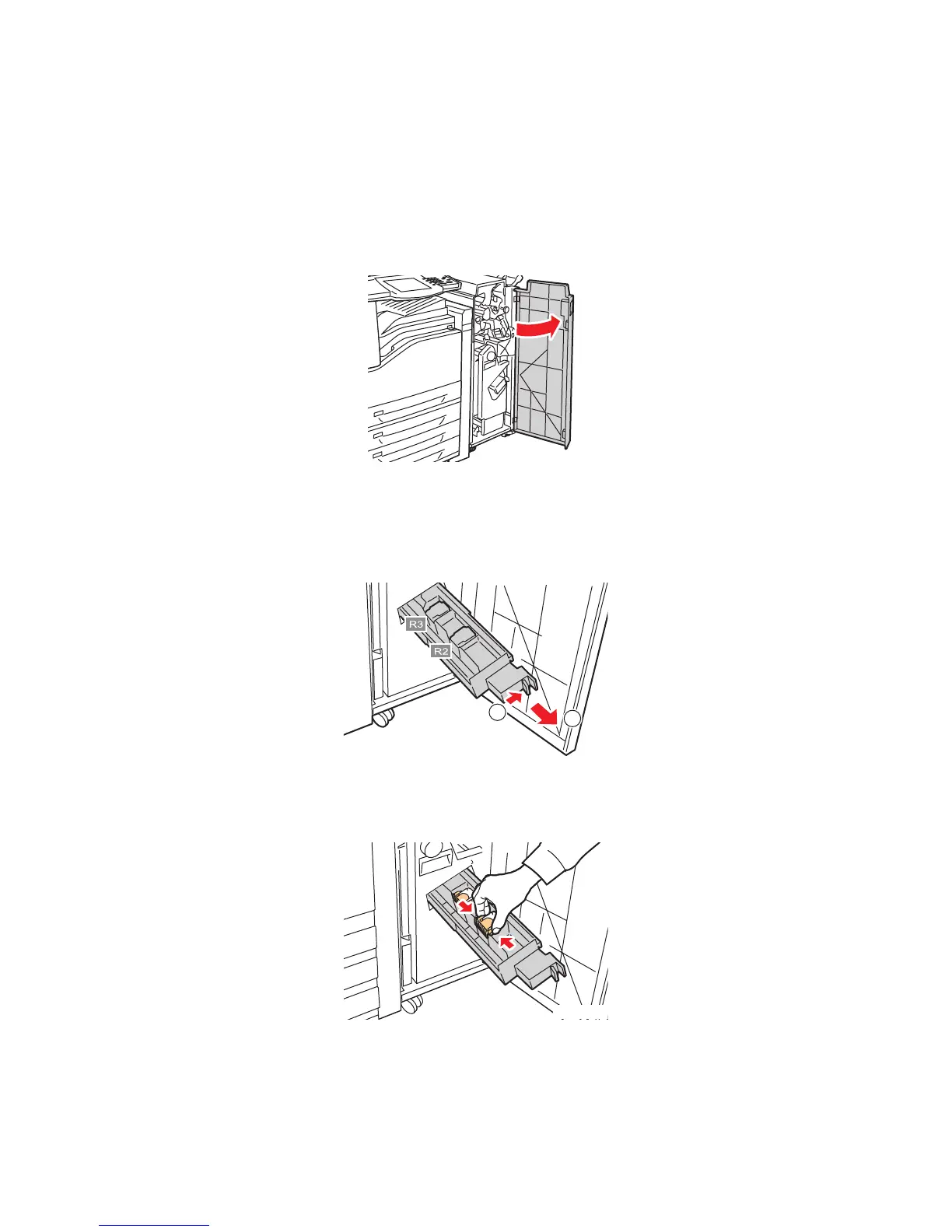

1. Open the finisher front door.
2. While squeezing orange levers R2 and R3 together (1), pull the staple cartridge unit out of the
finisher until it stops (2).
Note: The staple cartridge unit does not detach from the finisher.
3. Grip the orange tabs on both sides of the staple cartridge.
wc74xx-043
1
2
wc74xx-104
-
To Next Page
