Yamaha 2009 YZF-R1 (Y) User Manual

PERIODIC MAINTENANCE
3-31
6. Install:
• Main gallery bolt
EAS21110

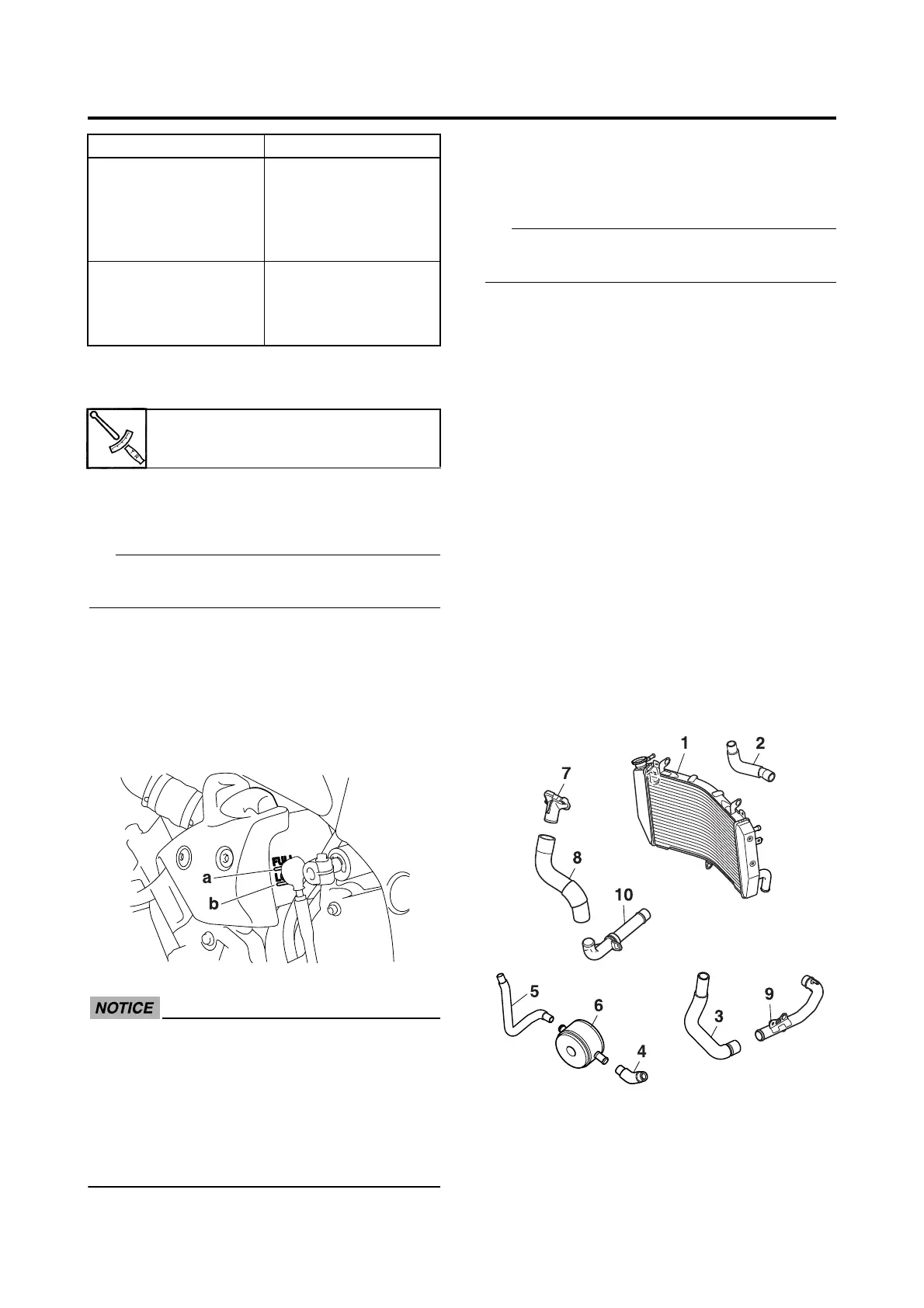

CHECKING THE COOLANT LEVEL
1. Stand the vehicle on a level surface.
TIP
• Place the vehicle on a suitable stand.
• Make sure the vehicle is upright.
2. Check:
• Coolant level
The coolant level should be between the
maximum level mark “a” and minimum
level mark “b”.
Below the minimum level mark → Add the
recommended coolant to the proper level.
ECA13470
• Adding water instead of coolant lowers
the antifreeze content of the coolant. If
water is used instead of coolant check,
and if necessary, correct the antifreeze
concentration of the coolant.
• Use only distilled water. However, if dis-
tilled water is not available, soft water
may be used.
3. Start the engine, warm it up for several
minutes, and then turn it off.
4. Check:
• Coolant level
TIP
Before checking the coolant level, wait a few
minutes until it settles.
EAS21120
CHECKING THE COOLING SYSTEM
1. Remove:
• Side cowlings
• Lower cowlings
Refer to “GENERAL CHASSIS” on page
4-1.
2. Check:
• Radiator “1”
• Radiator inlet hose “2”
• Radiator outlet hose “3”
• Oil cooler inlet hose “4”
• Oil cooler outlet hose “5”
• Oil cooler “6”
• Water jacket joint “7”
• Water jacket joint hose “8”
• Water pump inlet pipe “9”
• Water pump outlet pipe “10”
Cracks/damage → Replace.
Refer to “RADIATOR” on page 6-1 and
“OIL COOLER” on page 6-5.
3. Install:
• Lower cowlings
• Side cowlings
Refer to “GENERAL CHASSIS” on page
4-1.
Engine oil pressure Possible causes
Below specification
• Faulty oil pump
• Clogged oil filter
• Leaking oil passage
• Broken or damaged
oil seal
Above specification
• Leaking oil passage
• Faulty oil filter
• Oil viscosity too
high
Main gallery bolt
8 Nm (0.8 m·kgf, 5.8 ft·lbf)

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
