SHIFT SHAFT
5-69
EAS25410
SHIFT SHAFT

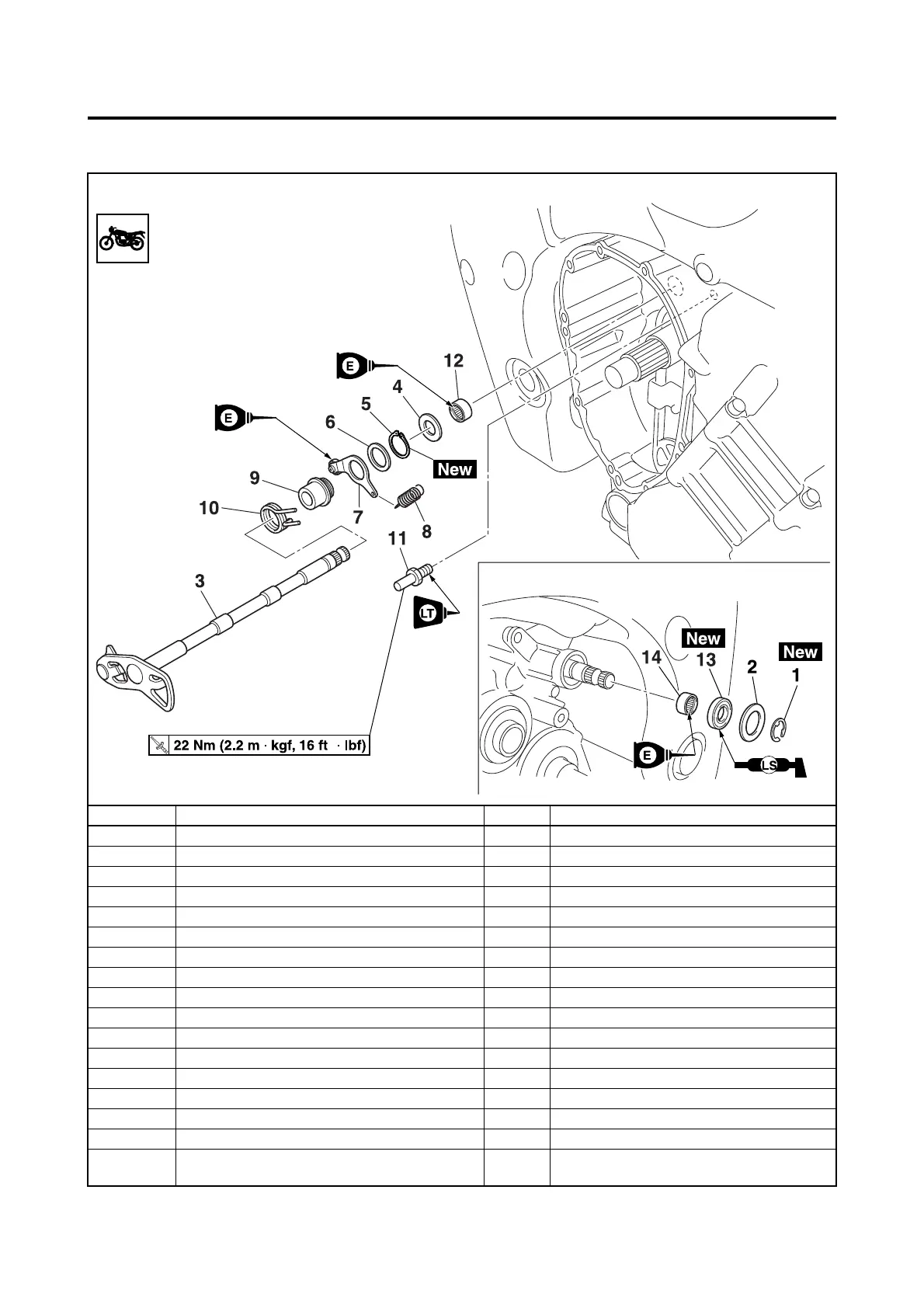

Removing the shift shaft and stopper lever
Order Job/Parts to remove Q’ty Remarks
Shift arm Refer to “CHAIN DRIVE” on page 4-83.
Clutch assembly Refer to “CLUTCH” on page 5-59.
1 Circlip 1
2 Washer 1
3 Shift shaft 1
4 Washer 1
5 Circlip 1
6 Washer 1
7 Stopper lever 1
8 Stopper lever spring 1
9 Collar 1
10 Shift shaft spring 1
11 Shift shaft spring stopper 1
12 Bearing 1
13 Oil seal 1
14 Bearing 1
For installation, reverse the removal proce-
dure.

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
