Yamaha 2009 YZF-R1 (Y) User Manual

ELECTRICAL COMPONENTS
8-129
9. Lubricate:
• Battery terminals
10. Install:
• Battery cover
• Rider seat
Refer to “GENERAL CHASSIS” on page
4-1.
EAS28040

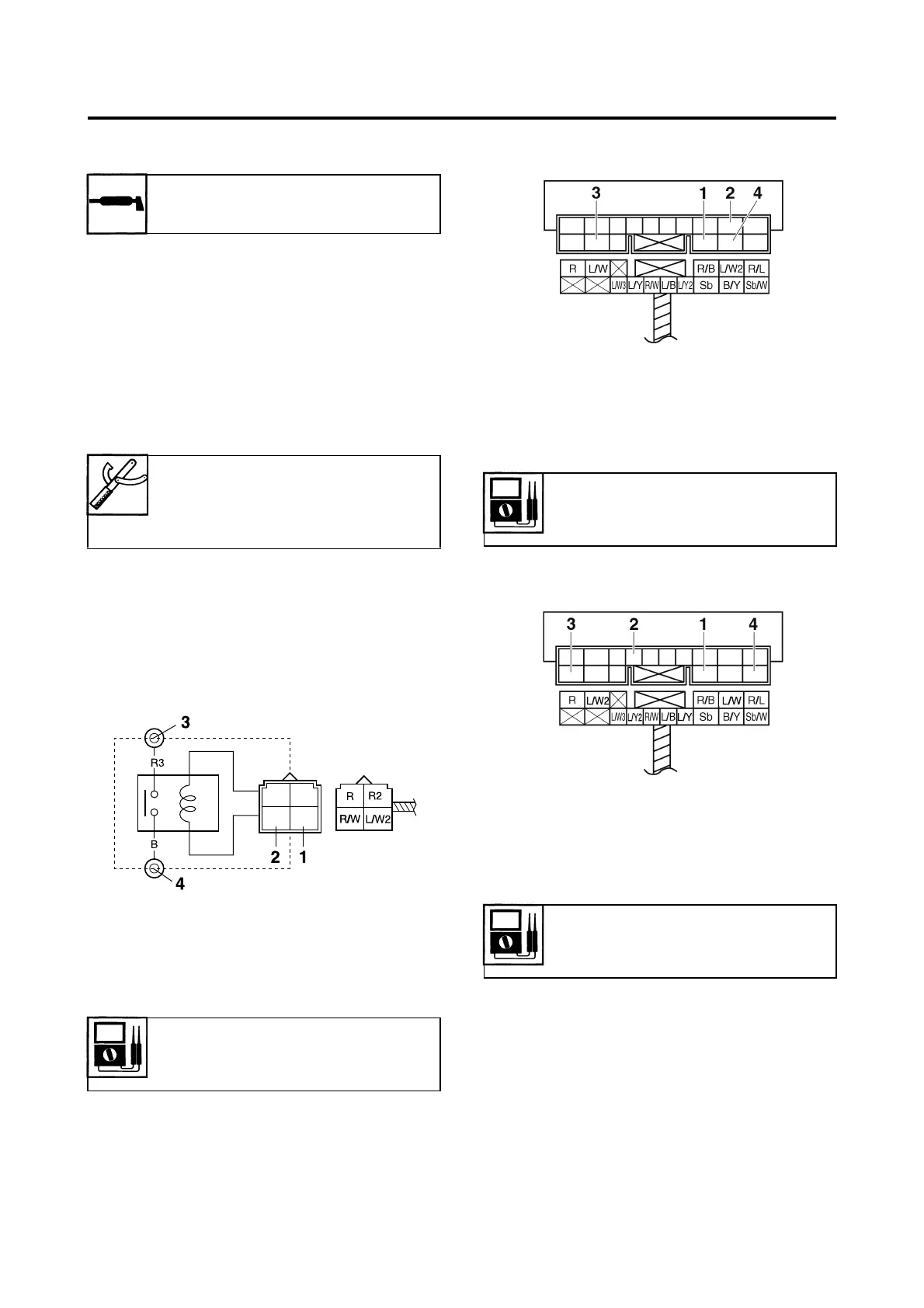

CHECKING THE RELAYS
Check each switch for continuity with the
pocket tester. If the continuity reading is incor-
rect, replace the relay.
1. Disconnect the relay from the wire harness.
2. Connect the pocket tester (Ω × 1) and bat-
tery (12 V) to the relay terminal as shown.
Check the relay operation.
Out of specification → Replace.
Starter relay
Relay unit (starting circuit cut-off relay)
Relay unit (fuel pump relay)
Recommended lubricant
Dielectric grease
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
1. Positive battery terminal
2. Negative battery terminal
3. Positive tester probe
4. Negative tester probe
Result
Continuity
(between “3” and “4”)
1. Positive battery terminal
2. Negative battery terminal
3. Positive tester probe
4. Negative tester probe
Result
Continuity
(between “3” and “4”)
1. Positive battery terminal
2. Negative battery terminal
3. Positive tester probe
4. Negative tester probe
Result
Continuity
(between “3” and “4”)

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
