ELECTRICAL COMPONENTS
8-132
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Disconnect the relay unit coupler from the
wire harness.
b. Connect the pocket tester (Ω × 1) to the
relay unit terminal as shown.
c. Check the relay unit (diode) for continuity.
d. Check the relay unit (diode) for no continu-
ity.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS28100

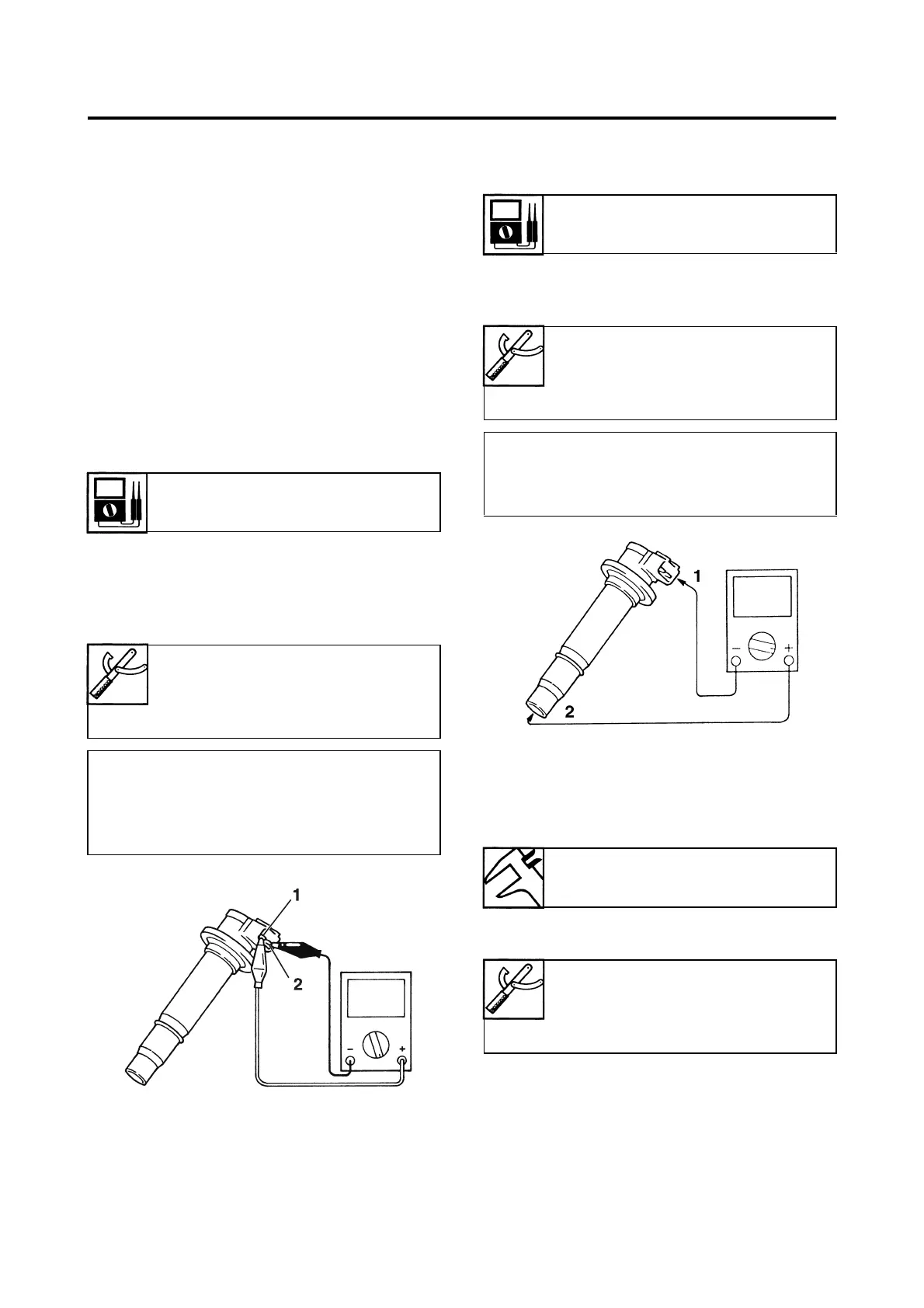

CHECKING THE IGNITION COILS
The following procedure applies to all of the
ignition coils.
1. Check:
• Primary coil resistance
Out of specification → Replace.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the ignition coil from the spark
plug.
b. Connect the pocket tester (Ω × 1) to the
ignition coil as shown.
c. Measure the primary coil resistance.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
2. Check:
• Secondary coil resistance
Out of specification → Replace.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Connect the pocket tester (Ω × 1 k) to the
ignition coil as shown.
b. Measure the secondary coil resistance.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
3. Check:
• Ignition spark gap
Out of specification → Replace.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Connect the ignition checker “1” as shown.
Primary coil resistance
0.85–1.15 Ω
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe
Red/Black “1”
• Negative tester probe
Orange or Gray/Red or Orange/Green or
Gray/Green “2”
Secondary coil resistance
8.50–11.50 kΩ
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Negative tester probe
Red/Black “1”
• Positive tester probe
Spark plug terminal “2”
Minimum ignition spark gap
6.0 mm (0.24 in)
Ignition checker
90890-06754
Opama pet-4000 spark checker
YM-34487

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
