Yamaha 2009 YZF-R1 (Y) User Manual

AIR FILTER CASE
7-5
EAS14B1062
AIR FILTER CASE

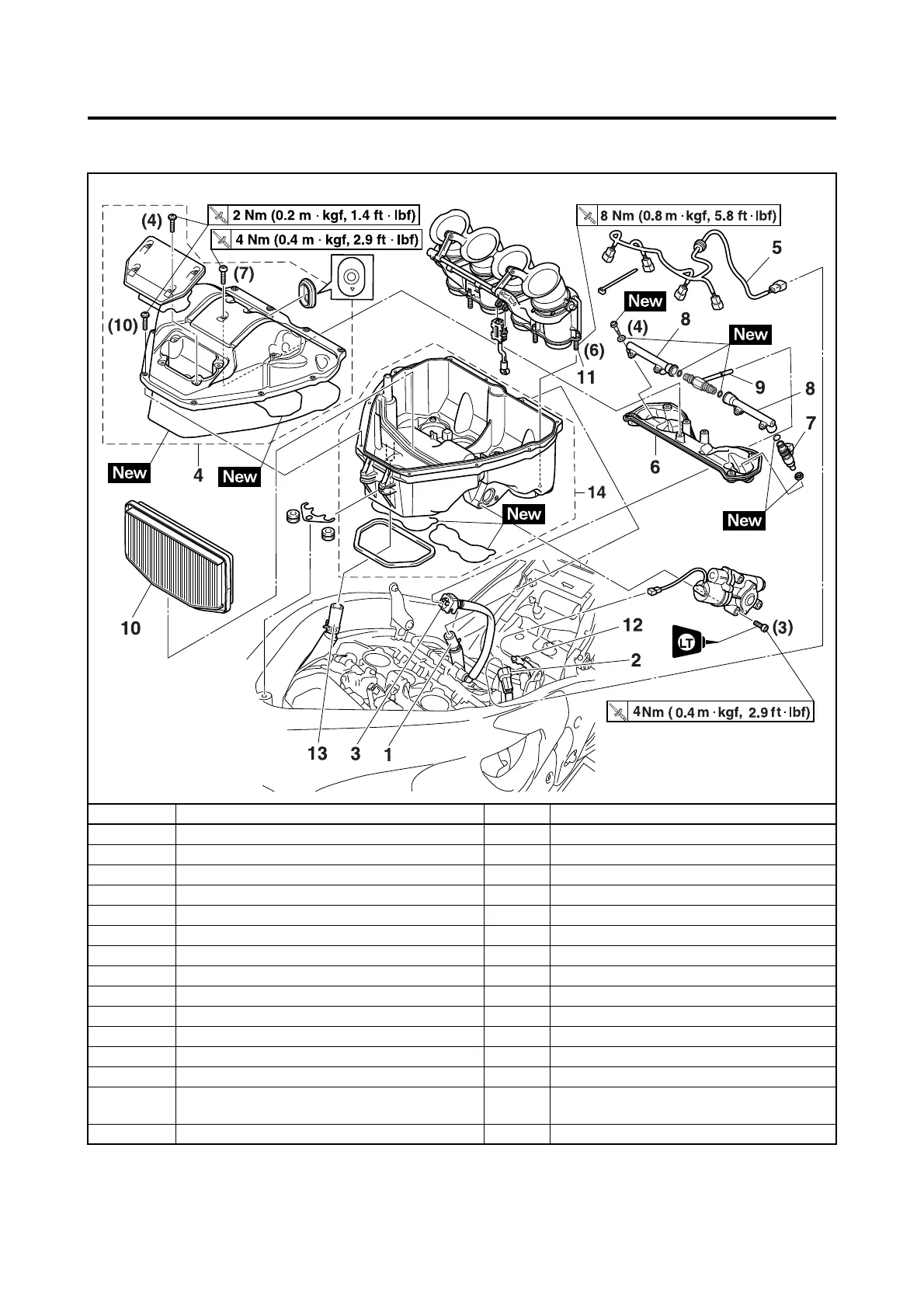

Removing the air filter case and secondary injectors
Order Job/Parts to remove Q’ty Remarks
Fuel tank Refer to “FUEL TANK” on page 7-1.
1 Crankcase breather hose 1 Disconnect.
2 Sub-wire harness coupler 1 Disconnect.
3 Fuel hose (secondary injector fuel rail side) 1 Disconnect.
4 Upper air filter case 1
5 Sub-wire harness 1
6 Secondary injector holder 1
7 Secondary injector 4
8 Fuel rail 2
9 Secondary injector joint 1
10 Air filter element 1
11 Intake funnel joint bolt 6 Loosen.
12 Intake funnel servo motor coupler 1 Disconnect.
13
Air induction system hose (air filter case to air
cut-off valve)
1 Disconnect.
14 Lower air filter case 1

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
