Yamaha 2009 YZF-R1 (Y) User Manual

FRONT WHEEL
4-18
EAS21870
FRONT WHEEL

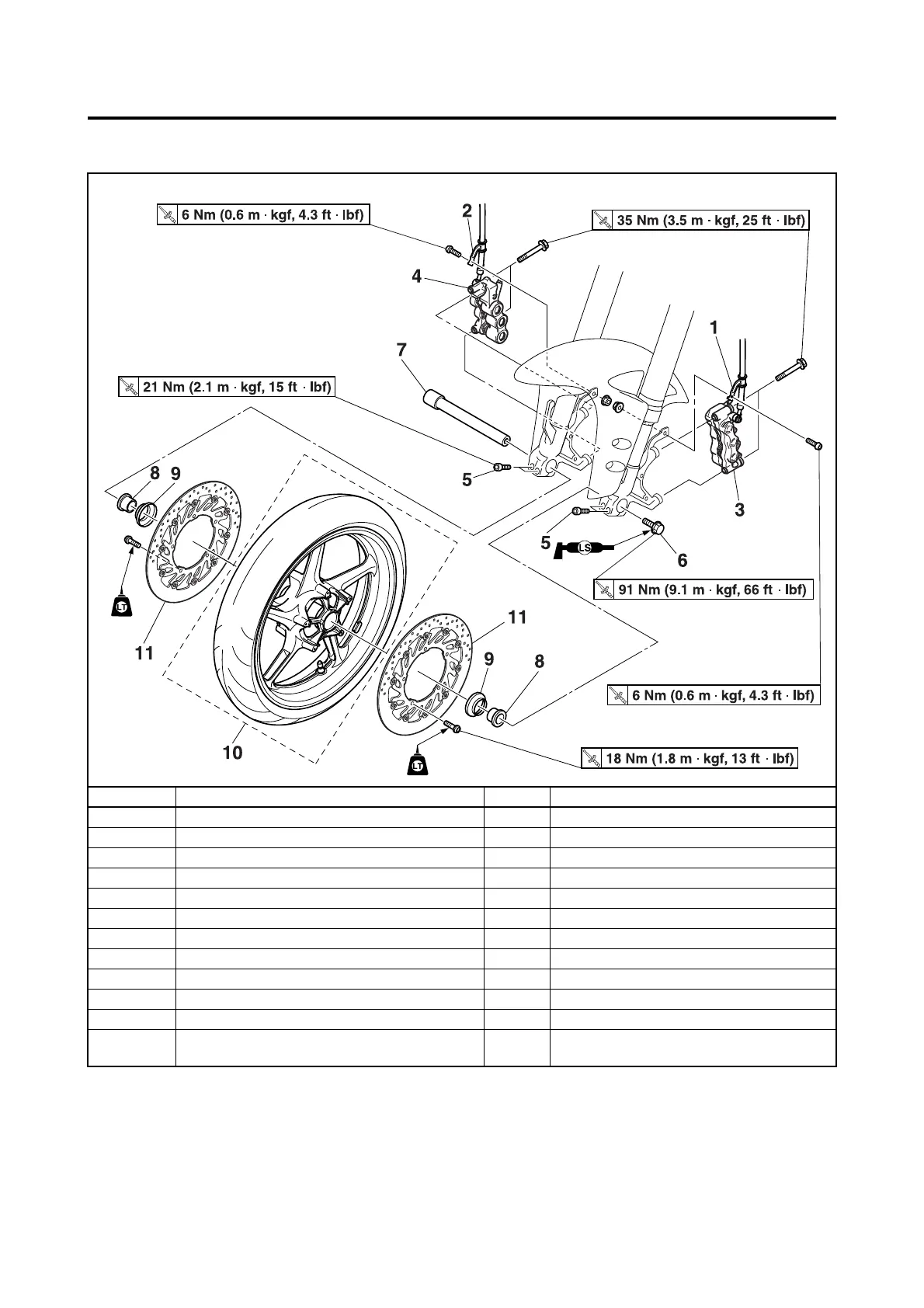

Removing the front wheel and brake discs
Order Job/Parts to remove Q’ty Remarks
1 Left brake hose holder 1
2 Right brake hose holder 1
3 Left front brake caliper 1
4 Right front brake caliper 1
5 Front wheel axle pinch bolt 4 Loosen.
6 Front wheel axle bolt 1
7 Front wheel axle 1
8 Collar (left and right) 2
9 Dust cover (left and right) 2
10 Front wheel 1
11 Front brake disc (left and right) 2
For installation, reverse the removal proce-
dure.

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
