SWINGARM
4-78
EAS23330
SWINGARM

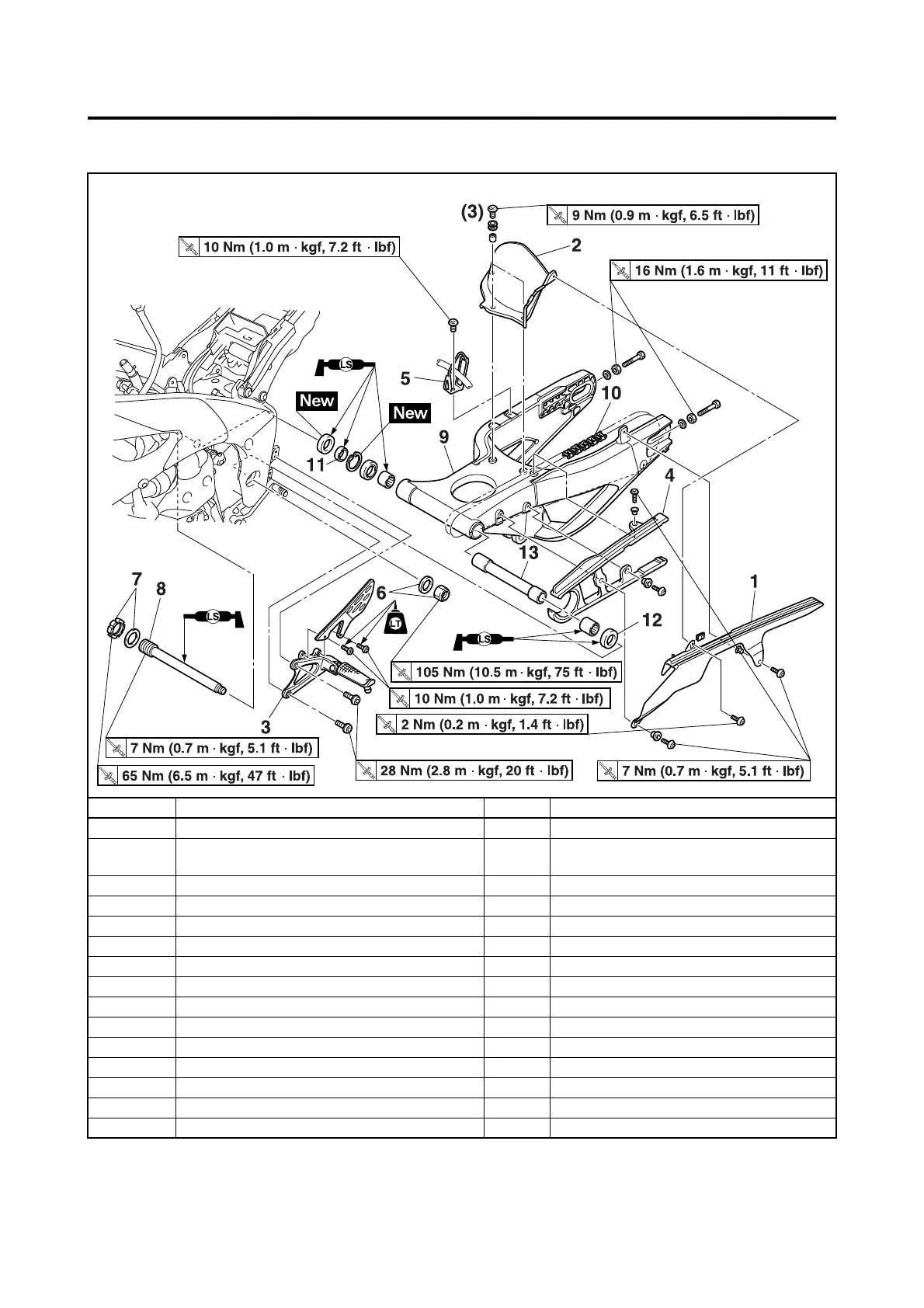

Removing the swingarm
Order Job/Parts to remove Q’ty Remarks
Rear wheel Refer to “REAR WHEEL” on page 4-24.
Rear shock absorber assembly
Refer to “REAR SHOCK ABSORBER
ASSEMBLY” on page 4-74.
1 Drive chain guard 1
2 Rear fender 1
3Left footrest 1
4 Drive chain guide 1
5 Brake hose holder 1
6 Pivot shaft nut/washer 1/1
7 Pivot shaft ring nut/washer 1/1
8 Pivot shaft 1
9 Swingarm 1
10 Drive chain 1
11 Collar 1
12 Dust cover 1
13 Spacer 1

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
