Yamaha 2009 YZF-R1 (Y) User Manual

THERMOSTAT
6-8
EAS26440

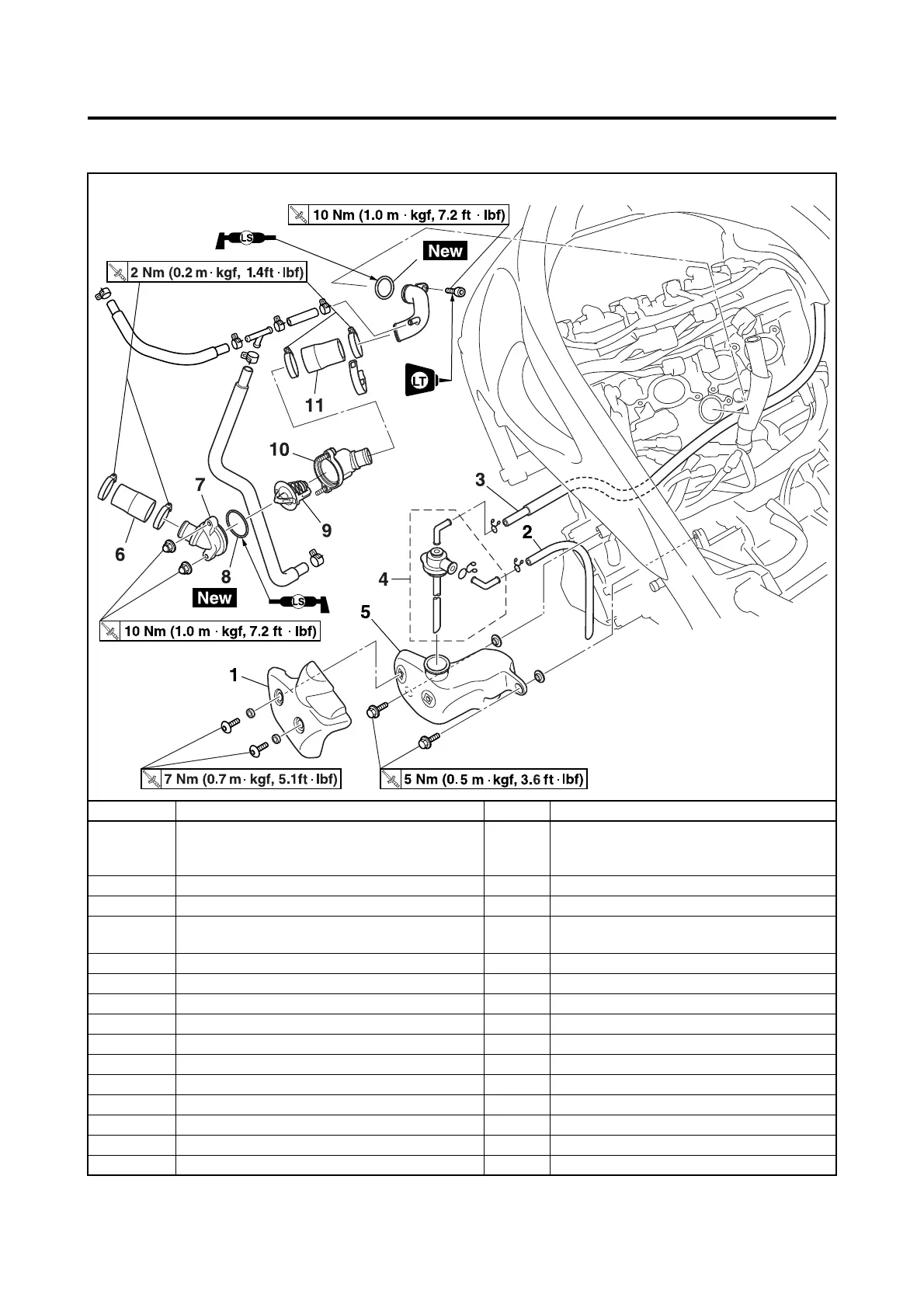

THERMOSTAT
Removing the thermostat
Order Job/Parts to remove Q’ty Remarks
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-32.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Air filter case Refer to “AIR FILTER CASE” on page 7-5.
Throttle body
Refer to “THROTTLE BODIES” on page 7-
12.
1 Coolant reservoir cover 1
2 Coolant reservoir breather hose 1
3 Coolant reservoir hose 1
4 Coolant reservoir cap 1
5 Coolant reservoir tank 1
6 Thermostat outlet hose 1
7 Thermostat housing cover 1
8O-ring 1
9 Thermostat 1
10 Thermostat housing 1
11 Thermostat inlet hose 1

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
