Yamaha 2009 YZF-R1 (Y) User Manual

CAMSHAFTS
5-19

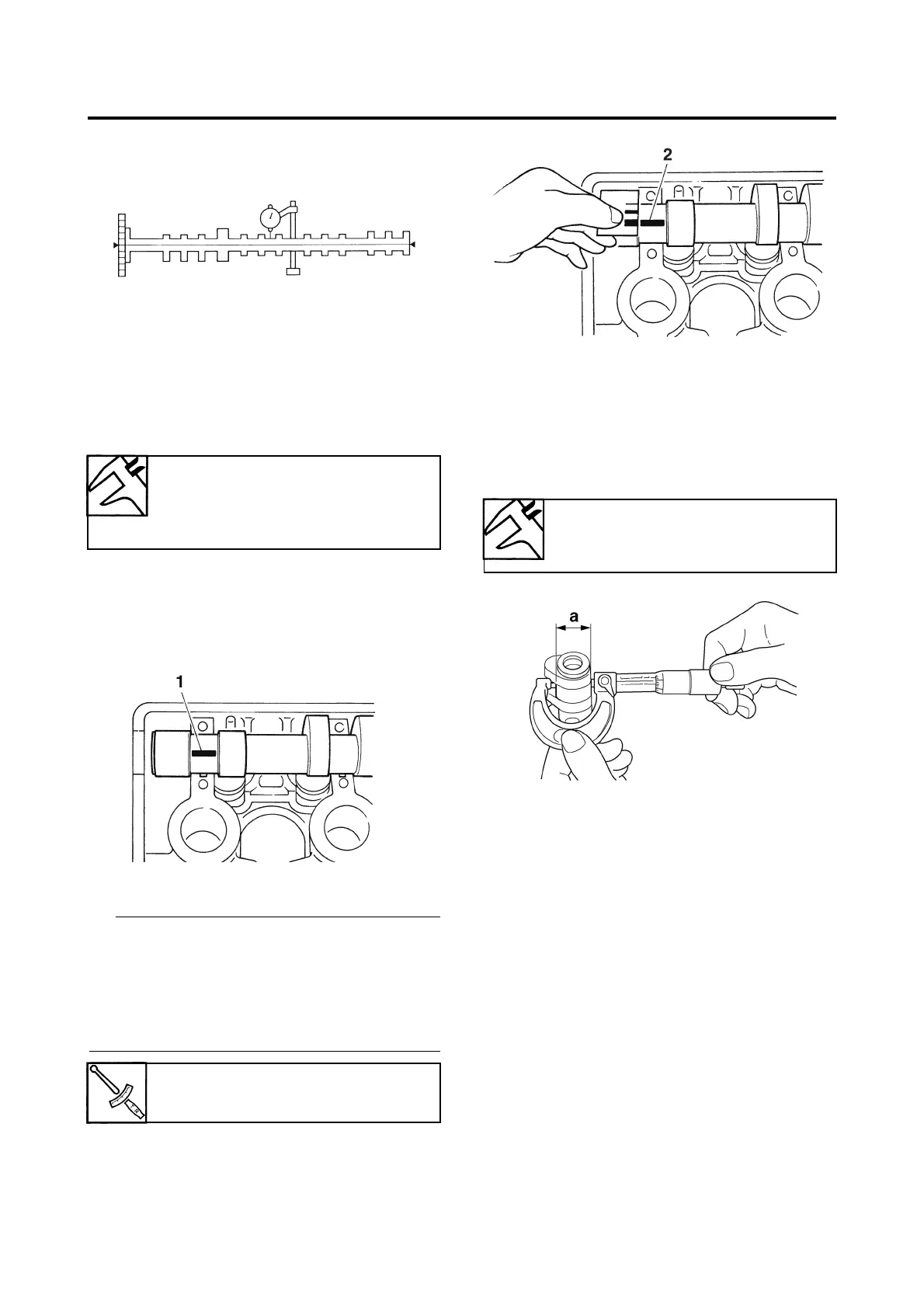

4. Measure:
• Camshaft-journal-to-camshaft-cap clear-
ance
Out of specification → Measure the cam-
shaft journal diameter.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Install the camshaft into the cylinder head
(without the camshaft caps).
b. Position strip of Plastigauge® “1” onto the
camshaft journal as shown.
c. Install the camshaft caps.
TIP
• Tighten the camshaft cap bolts in stages and
in a crisscross pattern, working from the
inner caps out.
• Do not turn the camshaft when measuring
the camshaft journal-to-camshaft cap clear-
ance with the Plastigauge®.
d. Remove the camshaft caps and then mea-
sure the width of the Plastigauge® “2”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
5. Measure:
• Camshaft journal diameter “a”
Out of specification → Replace the cam-
shaft.
Within specification → Replace the cylin-
der head and the camshaft caps as a set.
EAS23870
CHECKING THE TIMING CHAIN AND
SPROCKET
1. Check:
• Timing chain
Damage/stiffness → Replace the timing
chain, camshaft sprockets and crankshaft
sprocket as a set.
2. Check:
• Camshaft sprocket
• Crankshaft sprocket
More than 1/4 tooth wear “a” → Replace
the camshaft sprockets, crankshaft
sprocket and timing chain as a set.
Camshaft-journal-to-camshaft-
cap clearance
0.028–0.062 mm (0.0011–
0.0024 in)
Camshaft cap bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Camshaft journal diameter
25.459–25.472 mm (1.0023–
1.0028 in)

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
