Yamaha 2009 YZF-R1 (Y) User Manual

ENGINE REMOVAL
5-10
EAS23720

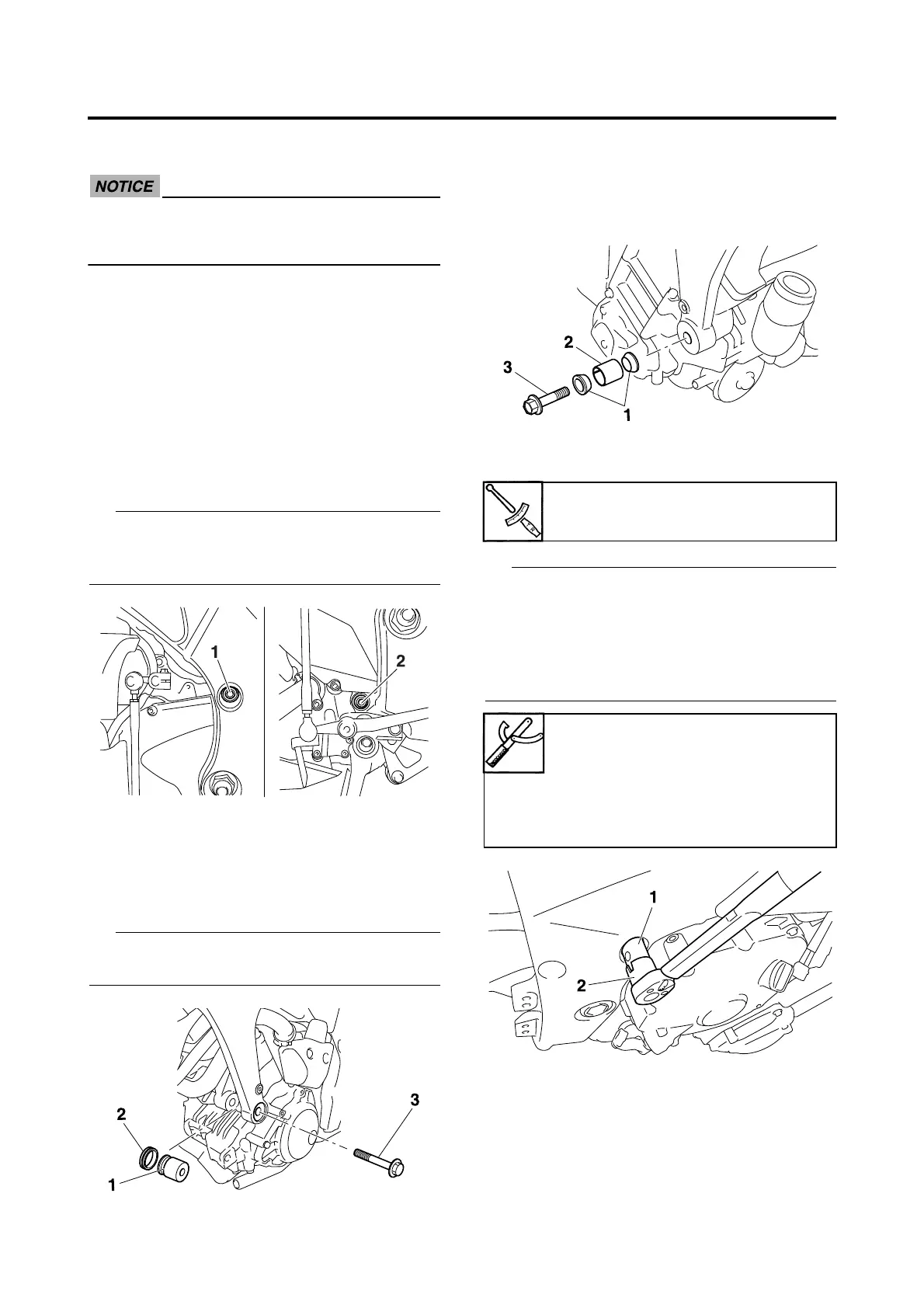

INSTALLING THE ENGINE
ECA14B1021
Do not hold the radiator inlet pipe when
removing the engine and moving the
engine by itself.
1. Install:
• Engine mounting adjust bolts
(temporary tighten)
2. Install:
• Engine
3. Install:
• Engine mounting bolt (rear upper side)
“1”
• Engine mounting bolt (rear lower side) “2”
• Engine mounting nut (rear upper side)
• Engine mounting nut (rear lower side)
TIP
Lubricate the upper and lower engine mount-
ing bolts threads with lithium-soap-based
grease.
4. Install:
• Engine mount collar (front left side) “1”
(Install together with damper “2”.)
• Engine mounting bolt (front left side) “3”
(temporary tighten)
TIP
When installing the engine mount collar (front
left side), set the damper toward the engine.
5. Install:
• Engine mount collars (front right side) “1”
• Engine mount collar (front right side) “2”
• Engine mounting bolt (front right side) “3”
(temporary tighten)
6. Tighten:
• Engine mount adjusting bolts
TIP
• Use the pivot shaft wrench “1” and pivot shaft
wrench adapter “2” to tighten the engine
mounting adjust bolts.
• Make sure that surface of the engine and
bearing surfaces of the engine mounting
adjust bolts are contacting each other.
Engine mount adjusting bolt
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
Pivot shaft wrench
90890-01471
Frame spanner socket
YM-01471
Pivot shaft wrench adapter
90890-01476

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
