Yamaha 2009 YZF-R1 (Y) User Manual

ENGINE REMOVAL
5-8

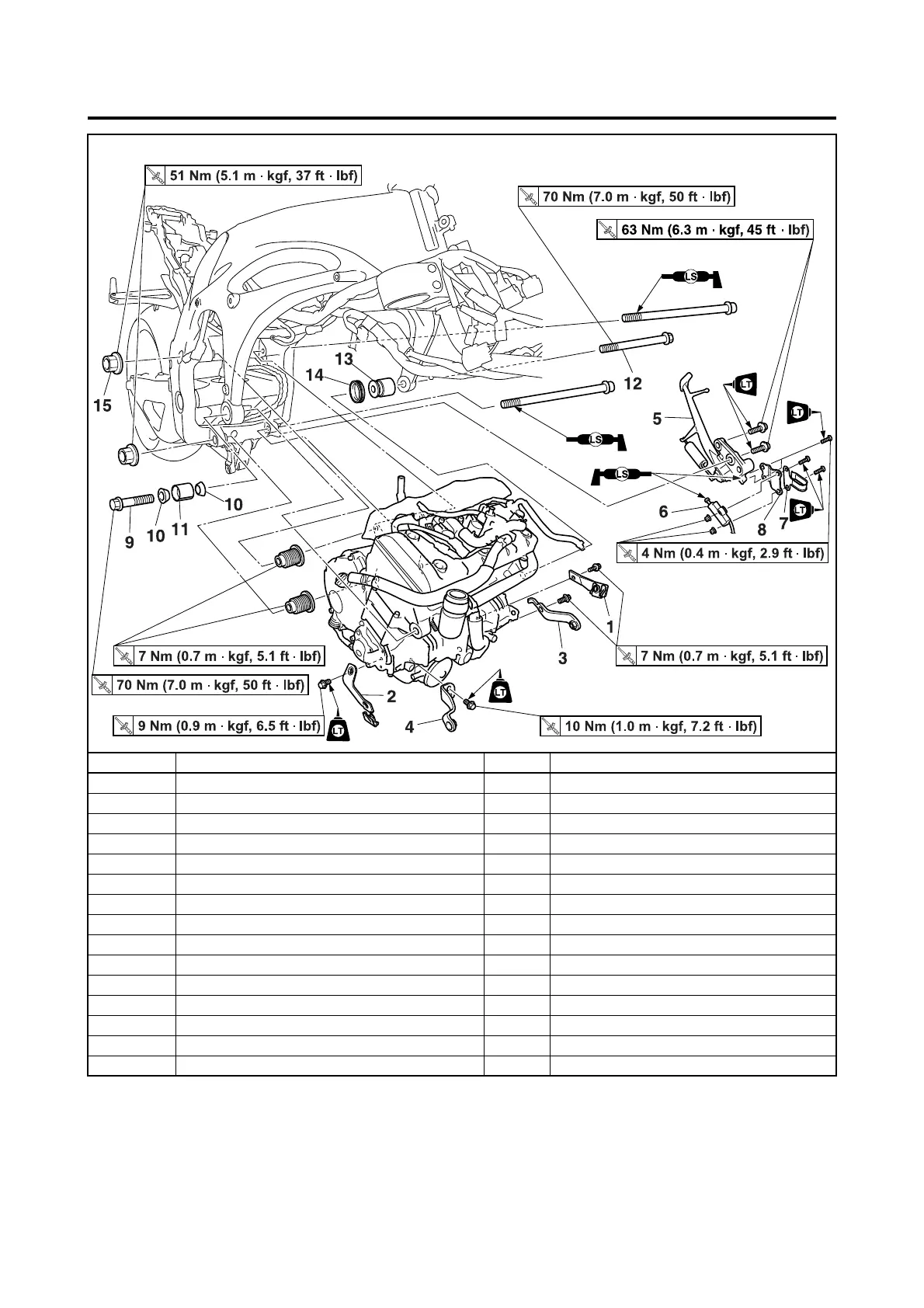

Removing the engine
Order Job/Parts to remove Q’ty Remarks
1 Left lower cowling bracket 1
2 Right lower cowling bracket 1
3 Left inner panel bracket 1
4 Right inner panel bracket 1
5 Sidestand assembly 1
6 Sidestand switch 1
7 Holder 1
8 Sidestand switch bracket 1
9 Engine mounting bolt (front right side) 1
10 Engine mount collar (front right side) 2
11 Engine mount collar (front right side) 1
12 Engine mounting bolt (front left side) 1
13 Left engine mount collar 1
14 Left engine mount damper 1
15 Engine mount nut (rear upper side) 1

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
