Yamaha 2009 YZF-R1 (Y) User Manual

IMMOBILIZER SYSTEM
8-115

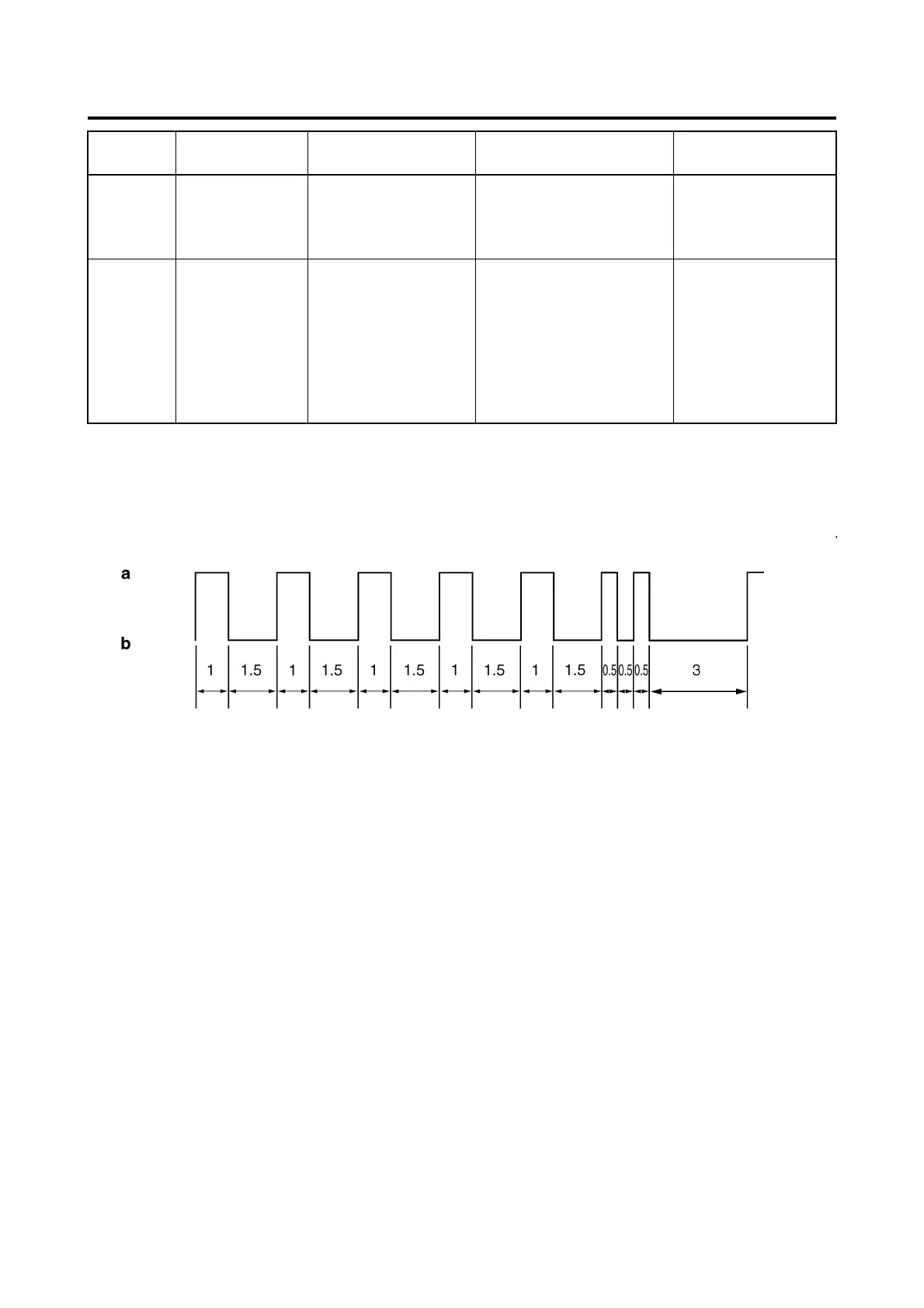

Immobilizer system indicator light fault code indication
Digit of 10 : Cycles of 1 sec. ON and 1.5 sec. OFF.
Digit of 1 : Cycles of 0.5 sec. ON and 0.5 sec. OFF.
Example: fault code 52
55 IMMOBILIZER
UNIT
Key code registra-
tion malfunction.
Same standard key was
attempted to be regis-
tered two consecutive
times.
Register another
standard key.
56 ECU Undefinition code is
received.
Noise interference or dis-
connected lead/cable.
1. Check the wire
harness and con-
nector.
2. Replace the
main switch/
immobilizer unit.
3. Replace the
ECU.
Fault
code
Part Symptom Cause Action
a. Light on
b. Light off

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
