Yamaha 2009 YZF-R1 (Y) User Manual

ELECTRIC STARTER
5-46
EAS24780
ELECTRIC STARTER

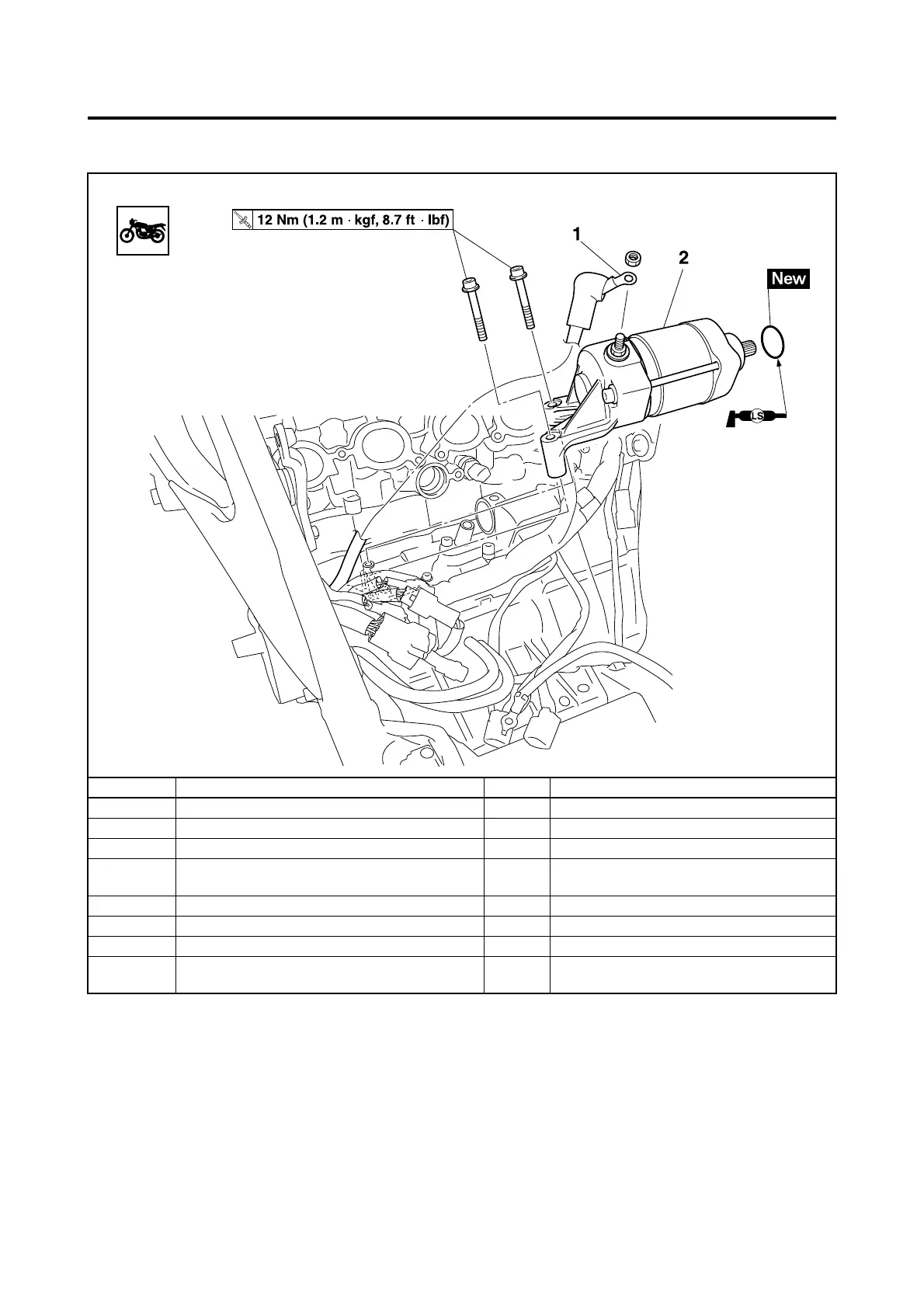

Removing the starter motor
Order Job/Parts to remove Q’ty Remarks
Battery negative lead Refer to “GENERAL CHASSIS” on page 4-1.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Air filter case Refer to “AIR FILTER CASE” on page 7-5.
Throttle body
Refer to “THROTTLE BODIES” on page 7-
12.
Engine outlet pipe Refer to “THERMOSTAT” on page 6-8.
1 Starter motor lead 1 Disconnect.
2 Starter motor 1
For installation, reverse the removal proce-
dure.
