FRONT BRAKE
4-36
TIP

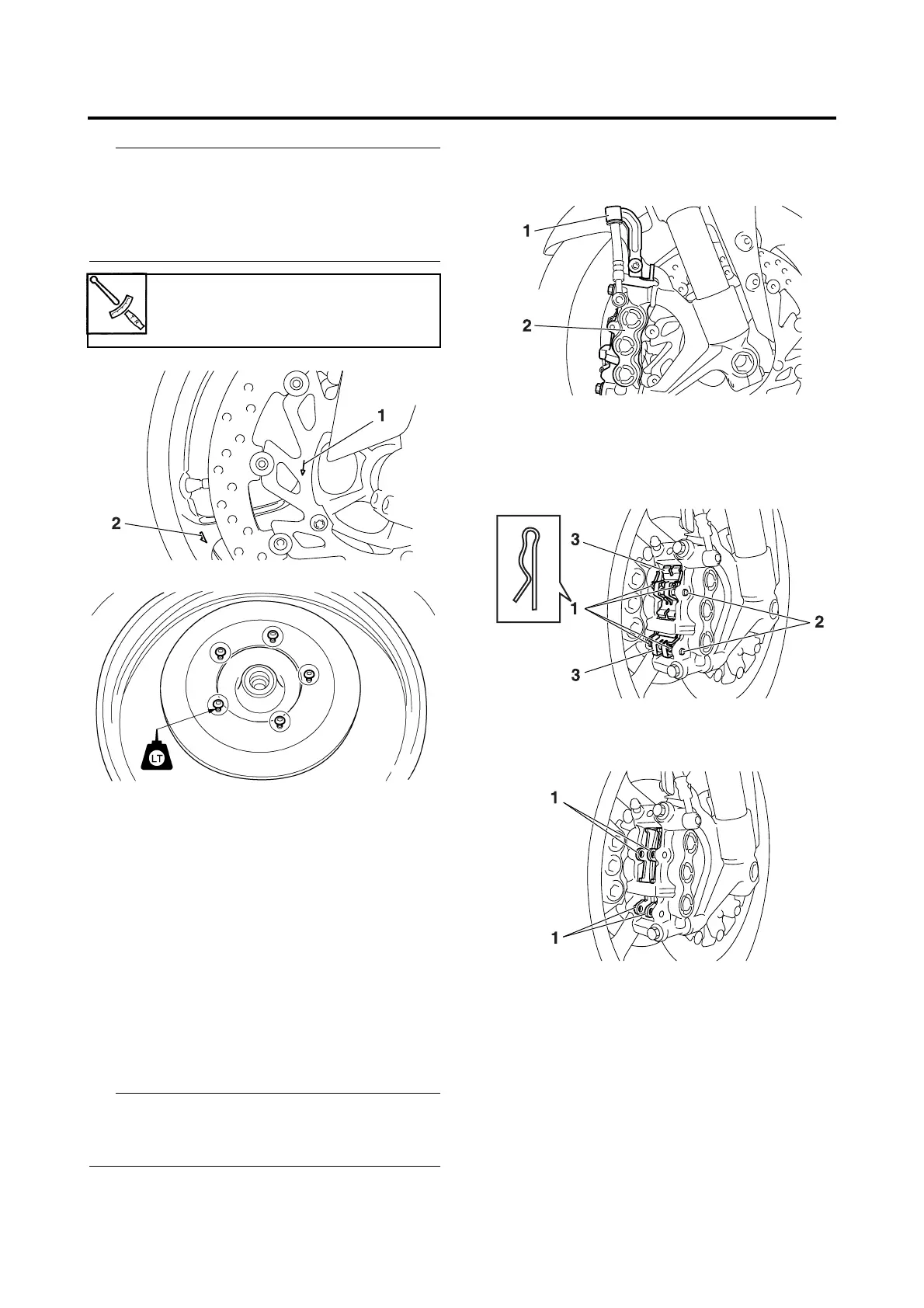

• When installing the brake disc, align the
arrow “1” on the brake disc and arrow “2” on
the wheel in the direction of wheel rotation.
• Tighten the brake disc bolts in stages and in
a crisscross pattern.
d. Measure the brake disc deflection.
e. If out of specification, repeat the adjust-
ment steps (a) through (d) until the brake
disc deflection is within specification.
f. If the brake disc deflection cannot be
brought within specification, replace the
brake disc.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
6. Install:
• Front wheel
Refer to “FRONT WHEEL” on page 4-18.
EAS14B1004
REPLACING THE FRONT BRAKE PADS
TIP
When replacing the brake pads, it is not neces-
sary to disconnect the brake hose or disas-
semble the brake caliper.
1. Remove:
• Brake hose holder “1”
• Brake caliper “2”
2. Remove:
• Brake pad clips “1”
• Brake pad pins “2”
• Brake pad springs “3”
3. Remove:
• Brake pads “1”
4. Measure:
• Brake pad wear limit “a”
Out of specification → Replace the brake
pads as a set.
Brake disc bolt
18 Nm (1.8 m·kgf, 13 ft·lbf)
LOCTITE®

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
