CHECKING THE CONNECTIONS
1-18
EAS20250

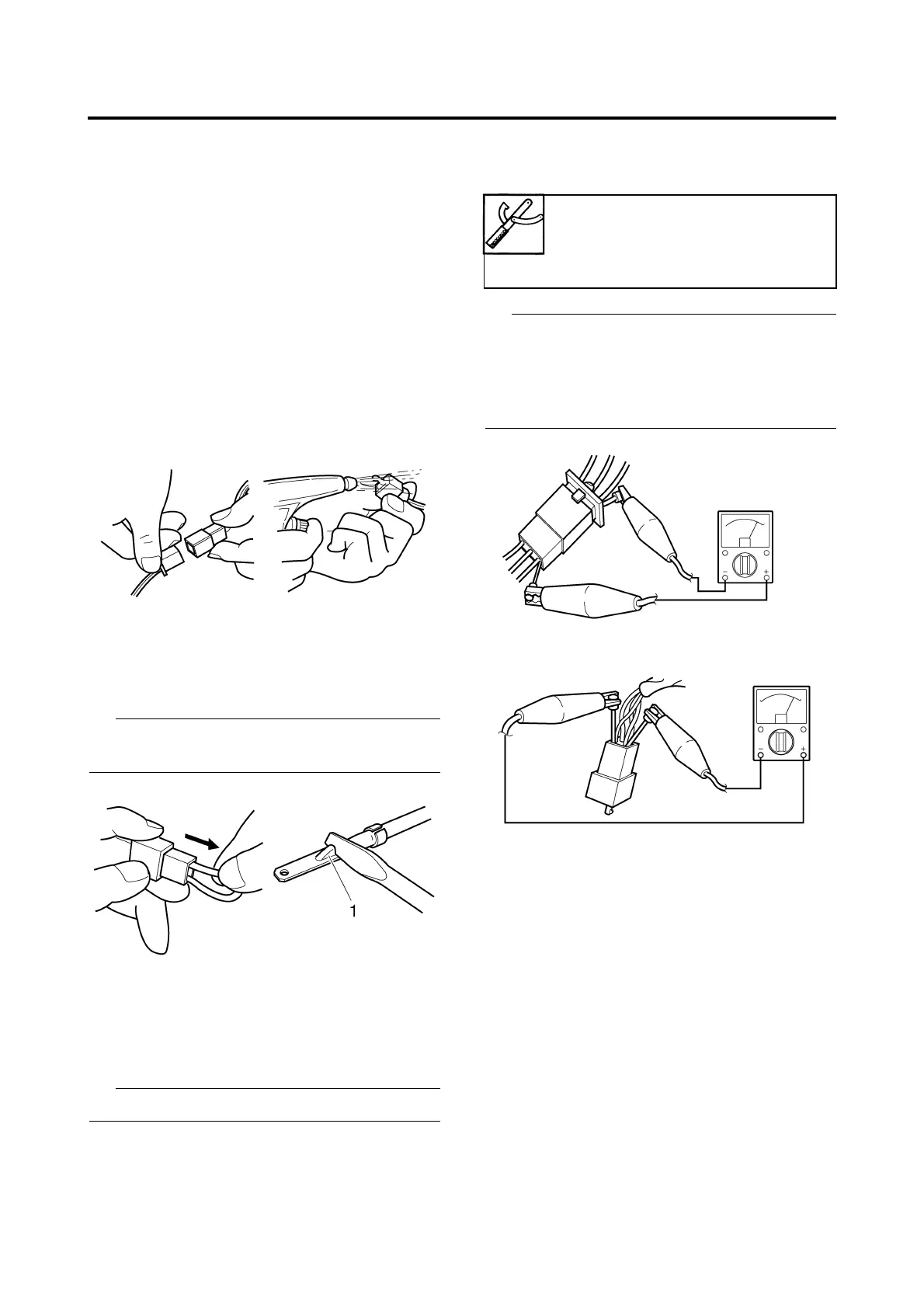

CHECKING THE CONNECTIONS
Check the leads, couplers, and connectors for
stains, rust, moisture, etc.
1. Disconnect:
• Lead
• Coupler
• Connector
2. Check:
• Lead
• Coupler
• Connector
Moisture → Dry with an air blower.
Rust/stains → Connect and disconnect
several times.
3. Check:
• All connections
Loose connection → Connect properly.
TIP
If the pin “1” on the terminal is flattened, bend
it up.
4. Connect:
• Lead
• Coupler
• Connector
TIP
Make sure all connections are tight.
5. Check:
•Continuity
(with the pocket tester)
TIP
• If there is no continuity, clean the terminals.
• When checking the wire harness, perform
steps (1) to (3).
• As a quick remedy, use a contact revitalizer
available at most part stores.
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
