Yamaha 2009 YZF-R1 (Y) User Manual

PICKUP ROTOR
5-44
EAS14B1059

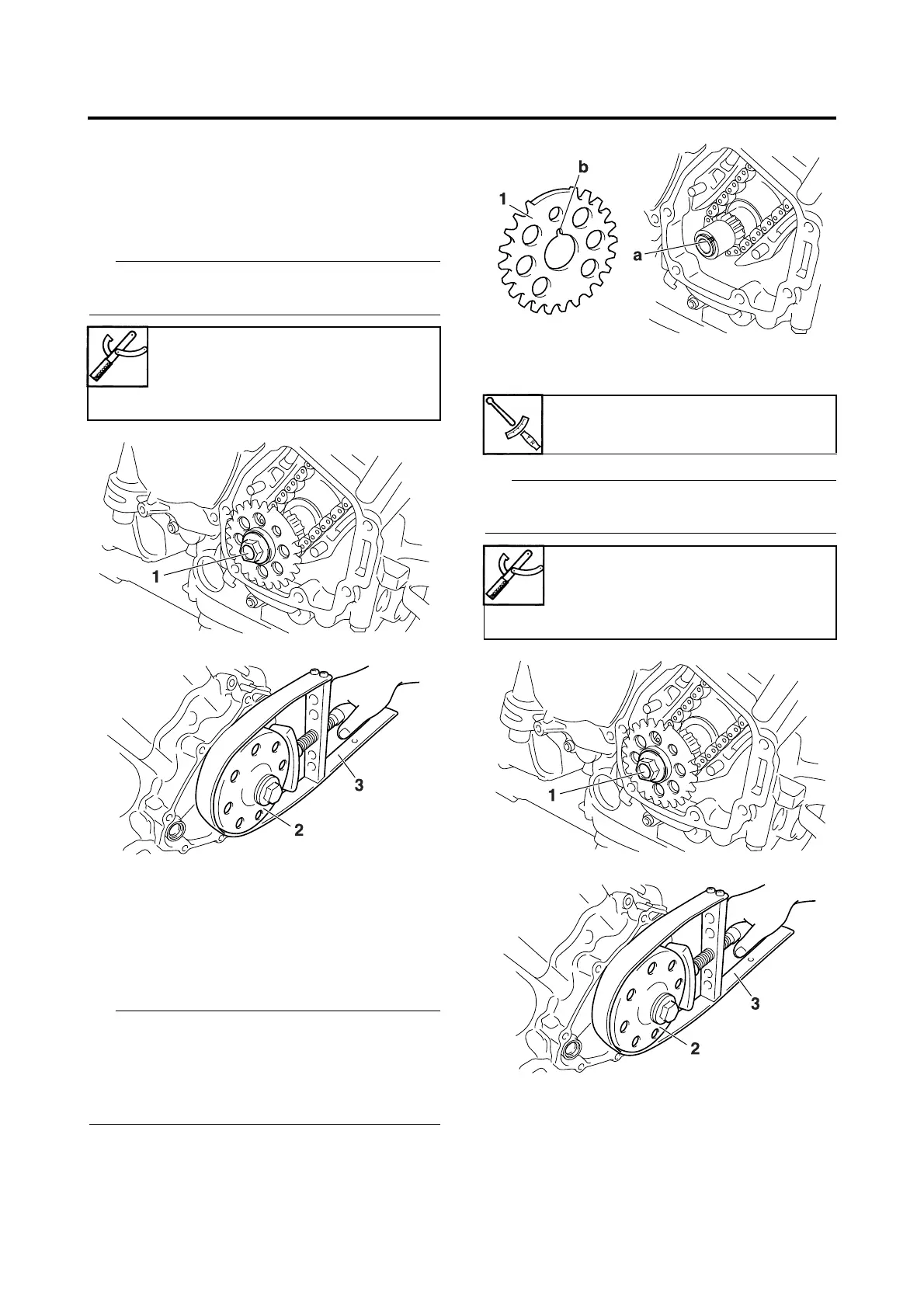

REMOVING THE PICKUP ROTOR
1. Remove:
• Pickup rotor bolt “1”
• Washer
•Pickup rotor
TIP
While holding the generator rotor “2” with the
sheave holder “3”, loosen the pickup rotor bolt.
EAS14B1060
INSTALLING THE PICKUP ROTOR
1. Install:
• Pickup rotor “1”
• Washer
• Pickup rotor bolt
TIP
• When installing the pickup rotor, align the
straight key “a” with the groove “b” on the
pickup rotor.
• Face the “K” mark on the pickup rotor outer
side of the vehicle and install.
2. Tighten:
• Pickup rotor bolt “1”
TIP
While holding the generator rotor “2” with the
sheave holder “3”, tighten the pickup rotor bolt.
3. Apply:
• Sealant
(onto the crankshaft position sensor lead
grommet “1”)
Sheave holder
90890-01701
Primary clutch holder
YS-01880-A
Pickup rotor bolt
60 Nm (6.0 m·kgf, 43 ft·lbf)
Sheave holder
90890-01701
Primary clutch holder
YS-01880-A

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
