Yamaha 2009 YZF-R1 (Y) User Manual

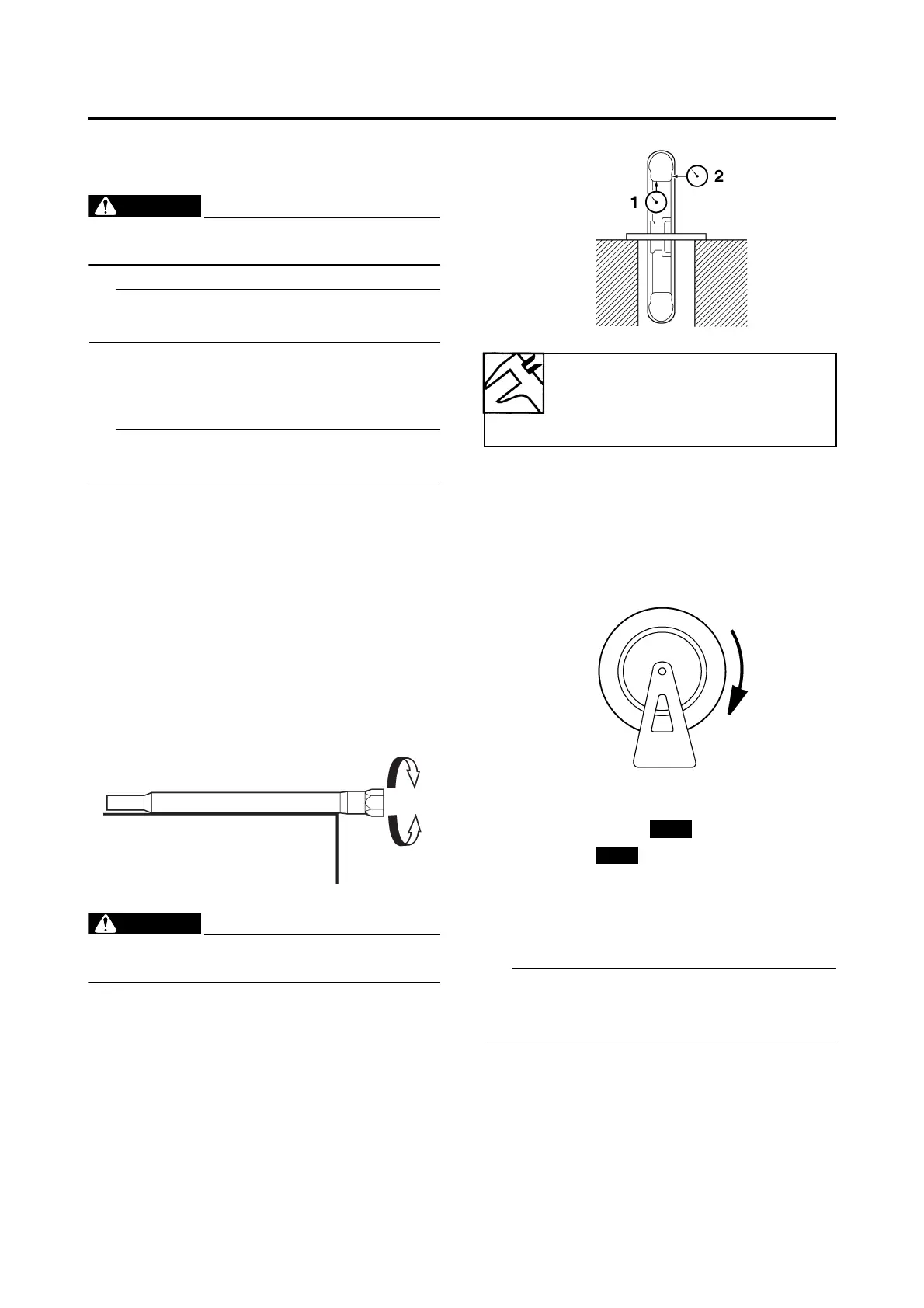

FRONT WHEEL
4-20
EAS21900
REMOVING THE FRONT WHEEL
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there
is no danger of it falling over.
TIP
Place the vehicle on a suitable stand so that
the front wheel is elevated.
2. Remove:
• Left brake caliper
• Right brake caliper
TIP
Do not apply the brake lever when removing
the brake calipers.
3. Loosen:
• Front wheel axle pinch bolt
4. Remove:
• Front wheel axle bolt
• Front wheel axle
• Front wheel
EAS21920
CHECKING THE FRONT WHEEL
1. Check:
• Wheel axle
Roll the wheel axle on a flat surface.
Bends → Replace.
WARNING
EWA13460
Do not attempt to straighten a bent wheel
axle.
2. Check:
•Tire
• Front wheel
Damage/wear → Replace.
Refer to “CHECKING THE TIRES” on
page 3-19 and “CHECKING THE
WHEELS” on page 3-19.
3. Measure:
• Radial wheel runout “1”
• Lateral wheel runout “2”
Over the specified limits → Replace.
4. Check:
• Wheel bearings
Front wheel turns roughly or is loose →
Replace the wheel bearings.
•Oil seals
Damage/wear → Replace.
5. Replace:
• Wheel bearings
•Oil seals
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Clean the outside of the front wheel hub.
b. Remove the oil seals “1” with a flat-head
screwdriver.
TIP
To prevent damaging the wheel, place a rag “2”
between the screwdriver and the wheel sur-
face.
Radial wheel runout limit
1.0 mm (0.04 in)
Lateral wheel runout limit
0.5 mm (0.02 in)
New
New

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
