Yamaha 2009 YZF-R1 (Y) User Manual

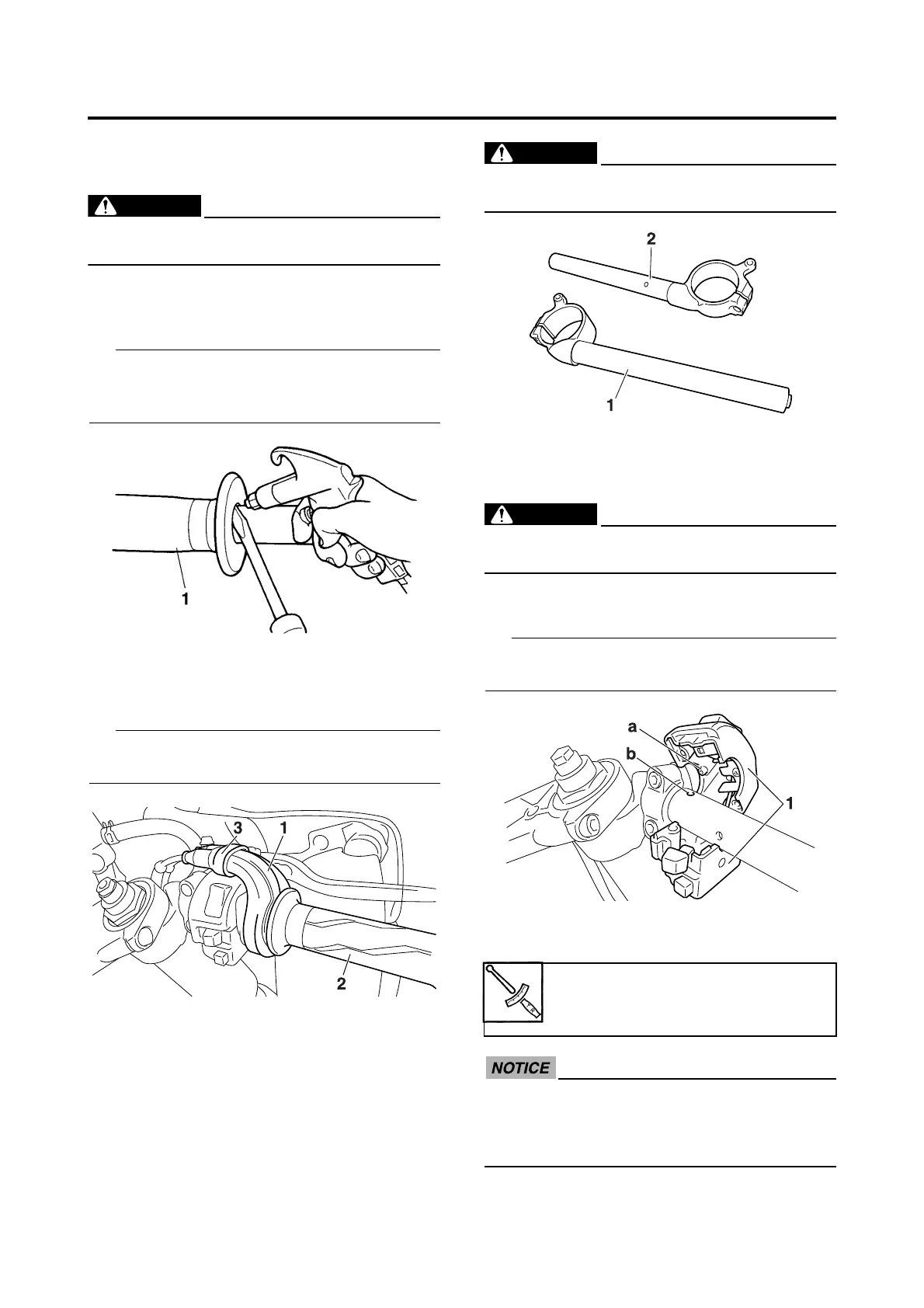

HANDLEBARS
4-57
EAS22870
REMOVING THE HANDLEBAR
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there
is no danger of it falling over.
2. Remove:
• Grip end
• Handlebar grip “1”
TIP
Blow compressed air between the handlebar
and the handlebar grip, and gradually push the
grip off the handlebar.
3. Remove:
• Throttle cable housing “1”
• Throttle grip “2”
TIP
While removing the throttle cable housing, pull
back the rubber cover “3”.
EAS22890
CHECKING THE HANDLEBARS
1. Check:
• Left handlebar “1”
• Right handlebar “2”
Bends/cracks/damage → Replace.
WARNING
EWA13690
Do not attempt to straighten a bent handle-
bar as this may dangerously weaken it.
EAS22900
INSTALLING THE HANDLEBARS
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there
is no danger of it falling over.
2. Install:
• Right handlebar switch “1”
TIP
Align the projection “a” on the right handlebar
switch with the hole “b” on the right handlebar.
3. Install:
• Brake master cylinder holder “1”
ECA14260
• Install the brake master cylinder holder
with the “UP” mark facing up.
• First, tighten the upper bolt, and then the
lower bolt.
Front brake master cylinder
holder bolt
13 Nm (1.3 m·kgf, 9.4 ft·lbf)

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
