Yamaha 2009 YZF-R1 (Y) User Manual

GENERAL CHASSIS
4-14
EAS14B1045

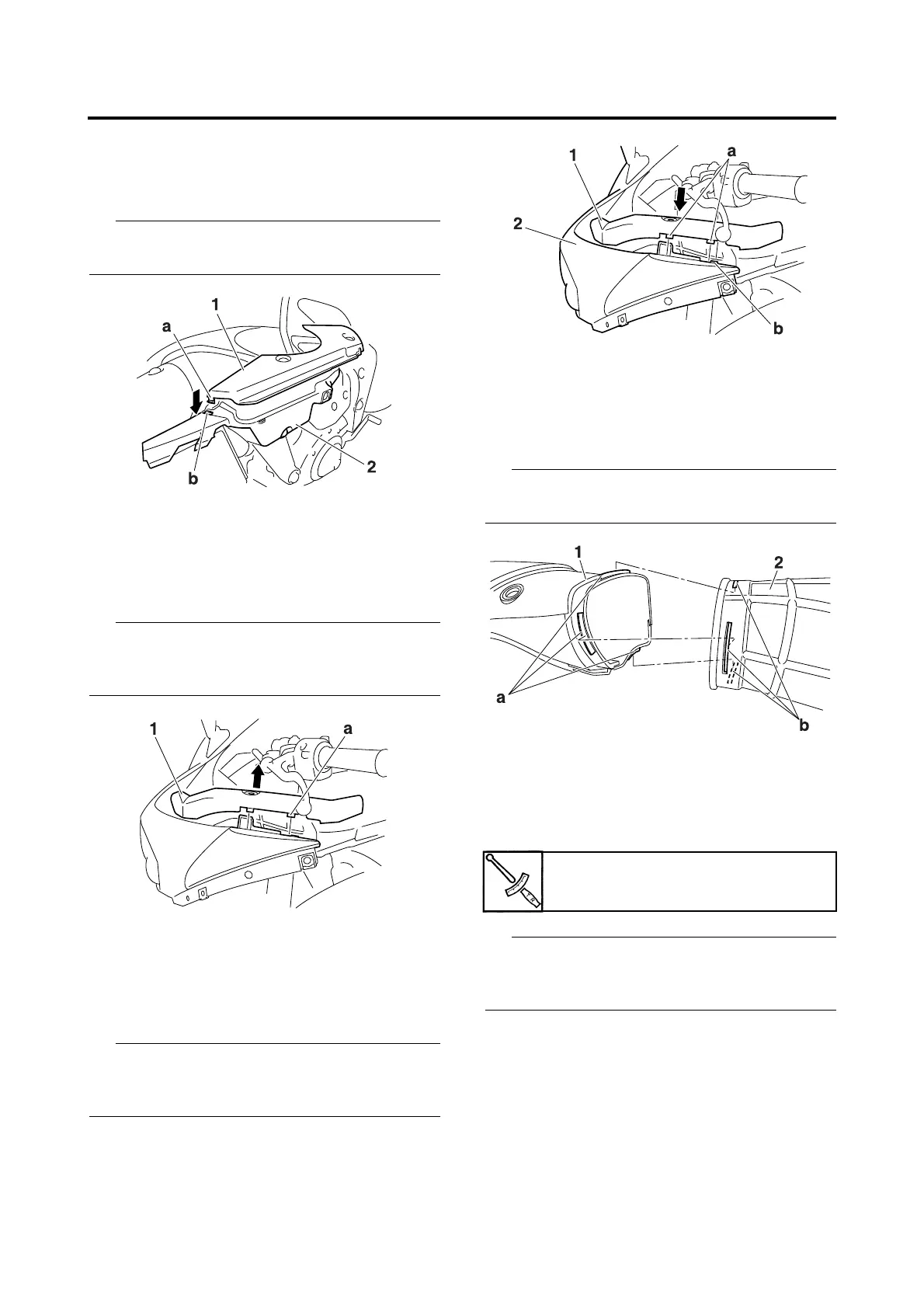

INSTALLING THE AIR CHAMBER COVERS
1. Install:
• Air chamber cover “1”
TIP
Insert the air chamber cover tab “a” downward
into the hole “b” of the air chamber “2”.
EAS14B1046
REMOVING THE INTAKE AIR DUCT COV-
ERS
1. Remove:
• Intake air duct cover “1”
TIP
Press the upper surface of the intake air duct
cover tab “a” to inside of the vehicle and
remove the intake air duct cover upward.
EAS14B1047
INSTALLING THE INTAKE AIR DUCT COV-
ERS
1. Install:
• Intake air duct cover “1”
TIP
Align the intake air duct cover tabs “a” and the
tab “b” of the front cowling “2” as shown in the
illustration and install.
EAS14B1048
INSTALLING THE AIR INTAKE DUCTS
1. Install:
• Rear air intake duct “1”
(to front air intake duct “2”)
TIP
Insert the rear air intake duct tabs “a” into the
front air intake duct grooves “b”.
EAS14B1013
INSTALLING THE REAR VIEW MIRRORS
1. Install:
• Rear view mirror “1”
(along with the mirror base “2”)
TIP
Install the mirror base to the rear view mirror
first, then install the rear view mirror to the front
cowling.
Rear view mirror nut
7 Nm (0.7 m·kgf, 5.1 ft·lbf)

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
