CRANKSHAFT
5-91
TIP

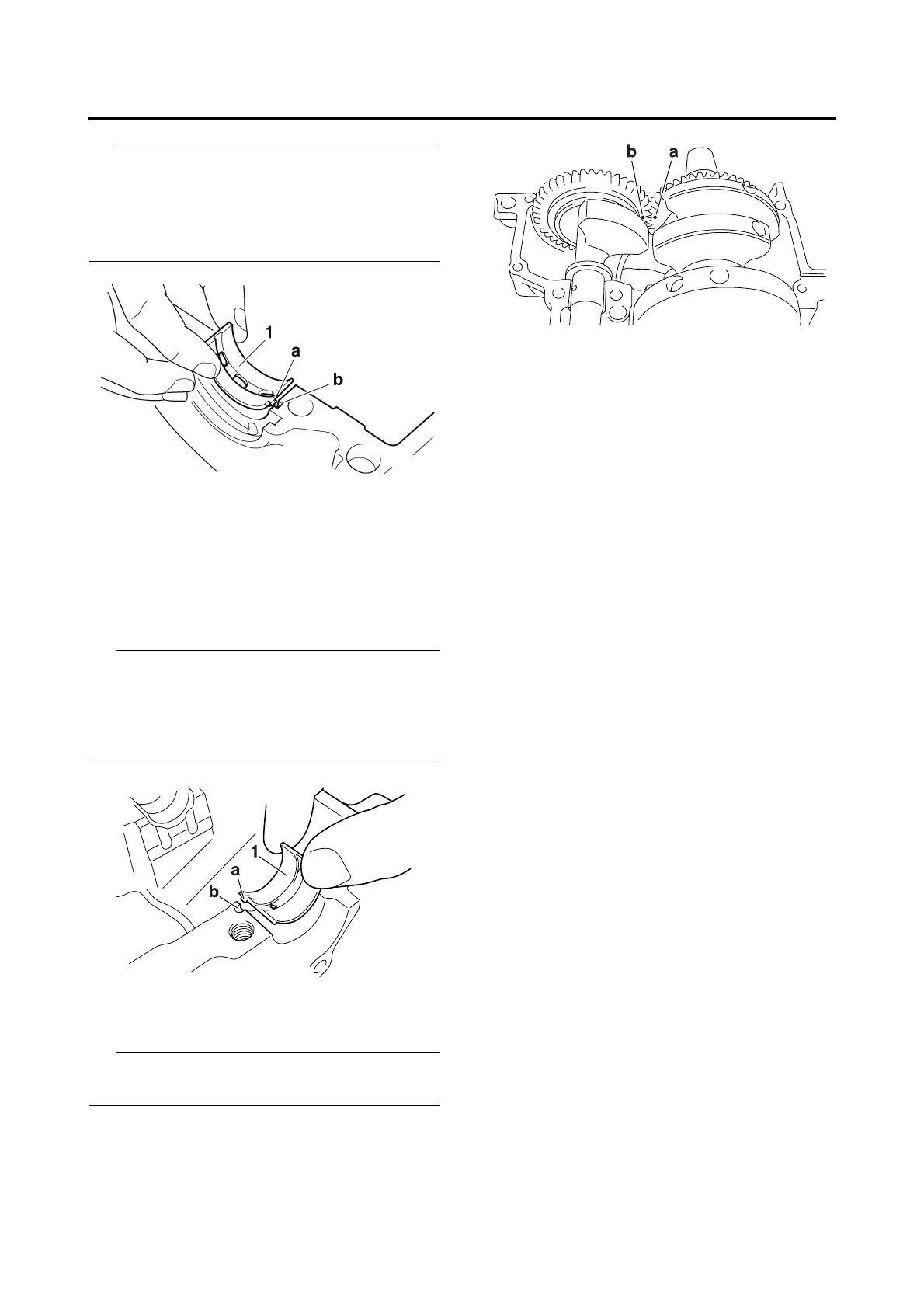

• Align the projections “a” on the crankshaft
journal bearings “1” with the notches “b” in
the crankcases.
• Be sure to install each crankshaft journal
bearing in its original place.
EAS14B1028
INSTALLING THE BALANCER ASSEMBLY
1. Install:
• Balancer journal upper bearings
(into the upper crankcase)
• Balancer journal lower bearings
(into the lower crankcase)
TIP
• Align the projections “a” on the balancer jour-
nal bearings “1” with the notches “b” in the
crankcases.
• Be sure to install each balancer journal bear-
ing in its original place.
2. Install:
• Balancer shaft
TIP
Install by aligning the crankshaft match mark
“a” and the balancer shaft match mark “b”.

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
