Yamaha 2009 YZF-R1 (Y) User Manual

IGNITION SYSTEM
8-3
EAS14B1082

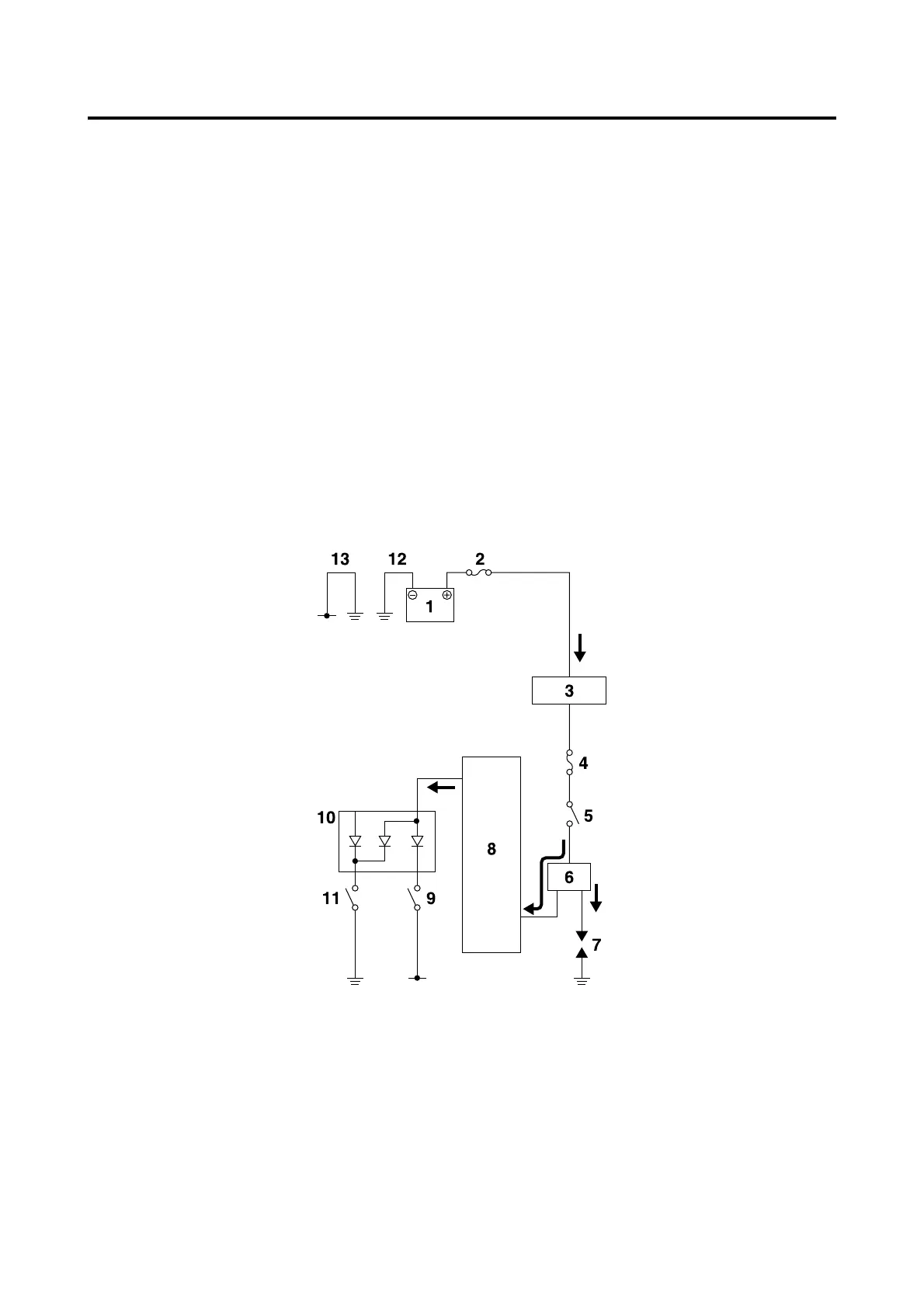

ENGINE STOPPING DUE TO SIDESTAND OPERATION
When the engine is running and the transmission is in gear, the engine will stop if the sidestand is
moved down. This is because the electric current from the ignition coils does not flow to the ECU
when both the neutral switch and sidestand switch are set to “OFF”, thereby preventing the spark
plugs from producing a spark. However, the engine continues to run under the following conditions:
• The transmission is in gear (the neutral switch circuit is open) and the sidestand is up (the side-
stand switch circuit is closed).
• The transmission is in neutral (the neutral switch circuit is closed) and the sidestand is down (the
sidestand switch circuit is open).

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
