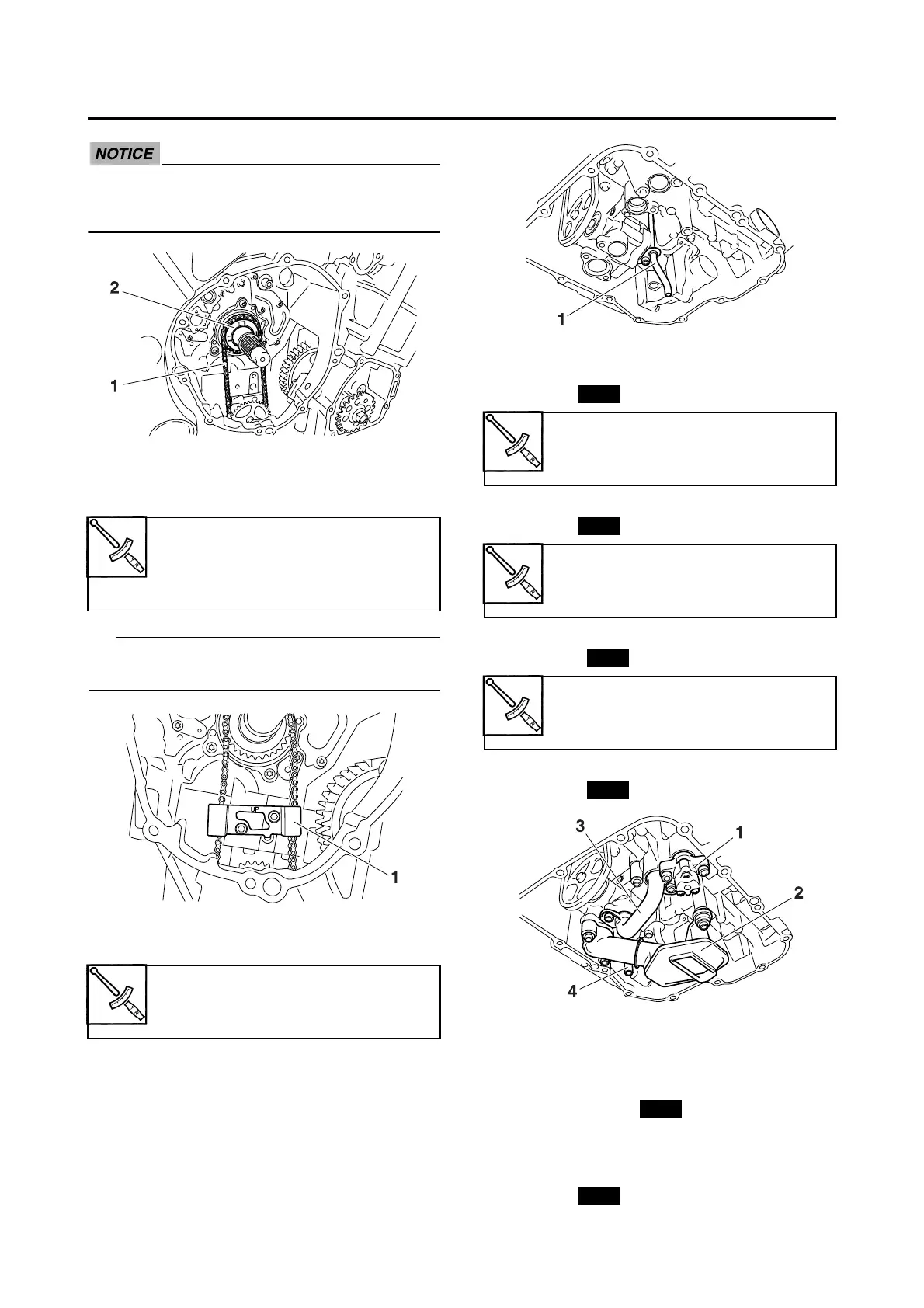

OIL PUMP
5-57
ECA14B1018
After installing the oil/water pump assem-
bly drive chain and drive sprocket, make
sure the oil/water pump turns smoothly.
3. Install:
• Oil/water pump assembly drive chain
guide “1”
TIP
“UP” mark of the oil/water pump assembly
drive chain guide is upward.
4. Install:
• Oil delivery pipe 1 “1”
5. Install:
• Relief valve assembly “1”
• O-ring
• Oil strainer “2”
• O-ring
•Oil pipe “3”
• O-rings
• Drain pipe “4”
• O-rings
EAS25050
INSTALLING THE OIL PAN
1. Install:
• Dowel pins
• Oil pan gasket
• Oil pan
• Oil level switch lead holder
• Oil level switch
• O-ring
Oil/water pump assembly drive
chain guide bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
LOCTITE®
Oil delivery pipe 1 bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
LOCTITE®
Relief valve assembly bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
LOCTITE®
Oil strainer bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
LOCTITE®
Oil pipe bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
LOCTITE®
New
New
New
New
New
New

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
