ACS550-02/U2 User’s Manual 43
Installation

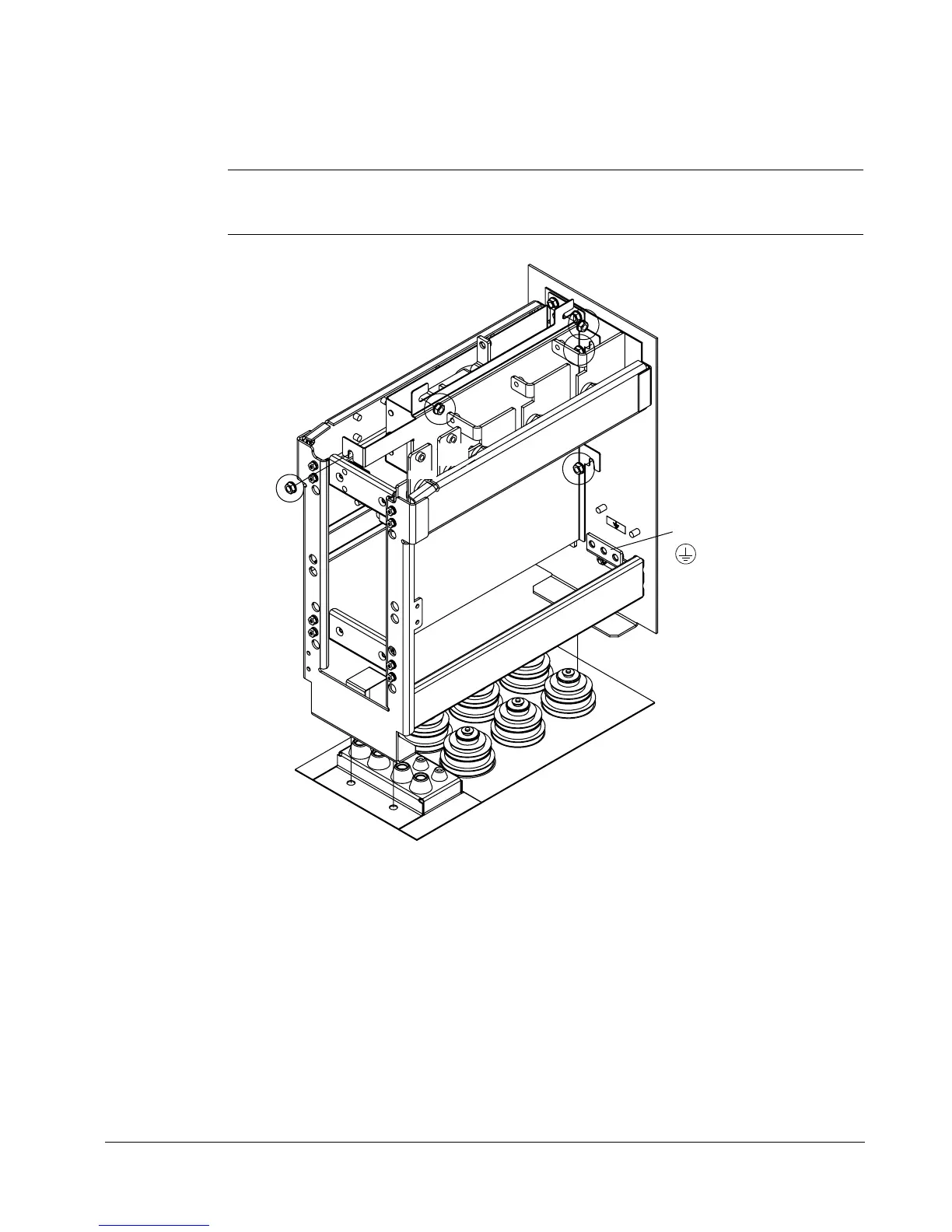

Removing the EMC screen from the pedestal (frame size R7 only)
1. Remove the EMC screen by undoing the five fastening screws.
Note: The screen must be replaced when the cables have been connected.
Tightening torque of the fastening screws is 5 N·m (3.7 lbf·ft).
E
M
C
s
c
r
e
e
n
W2
V2
U2
UDC-
PE
UDC+
R+
Frame size R7
