66 ACS550-02/U2 User’s Manual
Start-up, control with I/O and ID Run

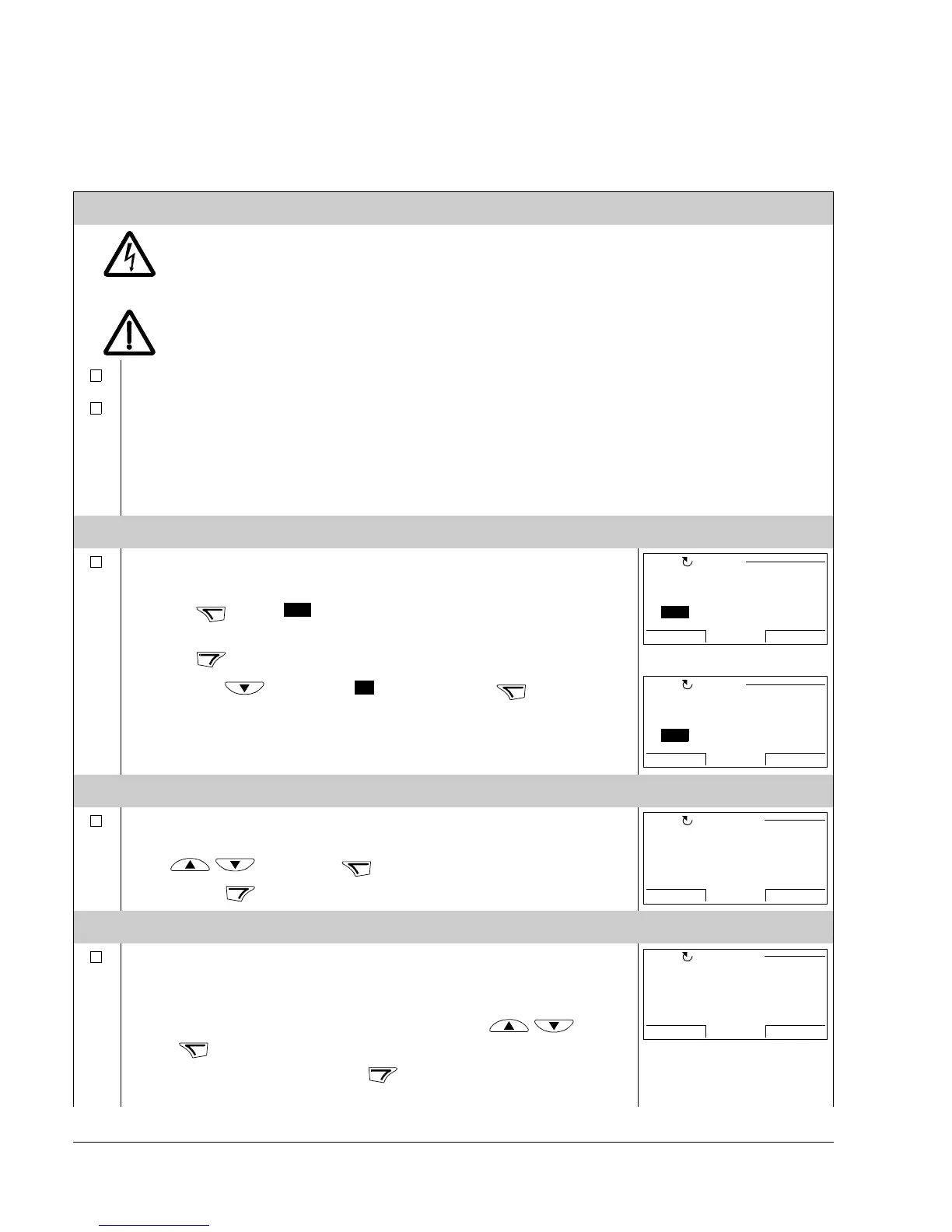

How to perform the guided start-up
To be able to perform the guided start-up, you need the Assistant Control Panel.
Before you start, ensure that you have the motor nameplate data on hand.
SAFETY
The start-up may only be carried out by a qualified electrician.
The safety instructions given in chapter Safety must be followed during the start-up
procedure.
The drive will start up automatically at power up, if the external run command is on.
Check the installation. See the checklist in chapter Installation, page 59.
Check that the starting of the motor does not cause any danger.
De-couple the driven machine if:
• there is a risk of damage in case of incorrect direction of rotation, or
• an ID Run needs to be performed during the drive start-up. ID Run is essential only in
applications that require the ultimate in motor control accuracy.
POWER-UP
Apply input power. The control panel first asks if you want to use
the Start-up Assistant.
• Press (when is highlighted) to run the Start-up
Assistant.
• Press if you do not want to run the Start-up Assistant.
• Press key
to highlight and then press if you want to
make the panel ask (or not ask) the question about running the
Start-up Assistant again the next time you switch on the power to
the drive.
SELECTING THE LANGUAGE
If you decided to run the Start-up Assistant, the display then asks
you to select the language. Scroll to the desired language with
keys / and press to accept.
If you press , the Start-up Assistant is stopped.
STARTING THE GUIDED SET-UP
The Start-up Assistant now guides you through the set-up tasks,
starting with the motor set-up. Set the motor data to exactly the
same value as on the motor nameplate.
Scroll to the desired parameter value with keys / and
press to accept and continue with the Start-up Assistant.
Note: At any time, if you press , the Start-up Assistant is
stopped and the display goes to the Output mode.
OK
Yes
EXIT
Do you want to
use the start-up
assistant?
Yes
No
EXIT
OK00:00
CHOICE
REM
No
OK
Show start-up
assistant on
next boot?
Yes
No
EXIT
OK00:00
CHOICE
REM
SAVE
EXIT
9901 LANGUAGE
PAR EDIT
ENGLISH
EXIT SAVE00:00
[0]
REM
SAVE
EXIT
9905 MOTOR NOM VOLT
PAR EDIT
220 V
EXIT SAVE00:00
REM
