ACS550-02/U2 User’s Manual 91
Control panels
I/O Settings mode
In the I/O Settings mode, you can:
• check the parameter settings related to any I/O terminal
• edit the parameter setting. For example, if “1103: REF1” is listed under Ain1
(Analog input 1), that is, parameter 1103
REF1 SELECT has value AI1, you can
change its value to e.g.
AI2. You cannot, however, set the value of parameter 1106
REF2 SELECT to AI1.
• start, stop, change the direction and switch between local and remote control.

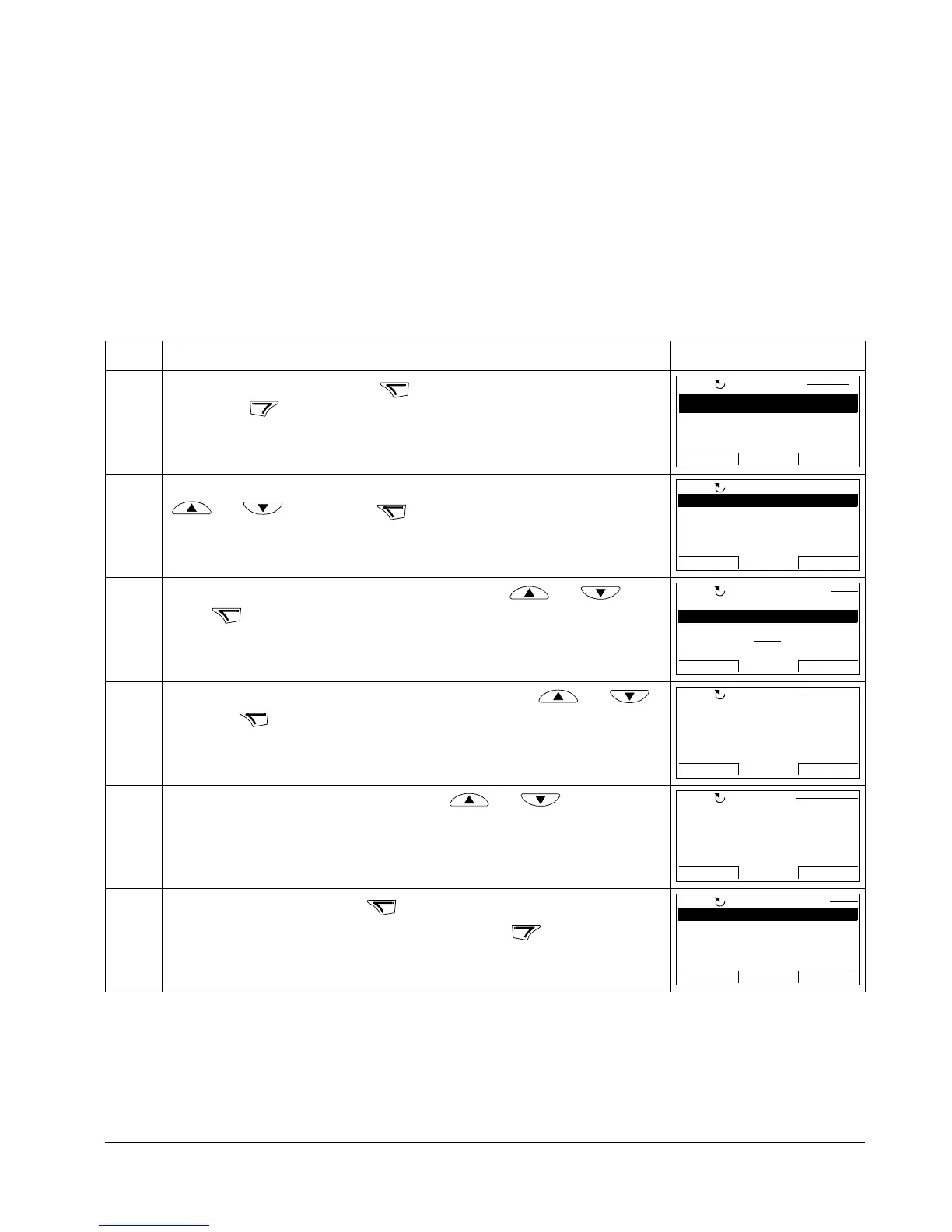

How to edit and change parameter settings related to I/O terminals
Step Action Display
1. Go to the Main menu by pressing if you are in the Output mode, otherwise
by pressing repeatedly until you get to the Main menu.
2. Go the I/O Settings mode by selecting I/O SETTINGS on the menu with keys
and , and pressing .
3. Select the I/O group, e.g. DIGITAL INPUTS, with keys and , and
press . After a brief pause, the display shows the current settings for the
selection.
4. Select the setting (line with a parameter number) with keys and ,
and press .
5. Specify a new value for the setting with keys and .
Pressing the key once increments or decrements the value. Holding the key
down changes the value faster. Pressing the keys simultaneously replaces the
displayed value with the default value.
6. • To save the new value, press .
• To cancel the new value and keep the original, press .
MENU
EXIT
PARAMETERS
ASSISTANTS
CHANGED PAR
EXIT ENTER00:00
MAIN MENU 1
LOC
ENTER
DIGITAL INPUTS (DI)
ANALOG INPUTS (AI)
RELAY OUTPUTS (ROUT)
ANALOG OUTPUTS (AOUT)
PANEL
EXIT
SEL00:00
I/O SETTINGS 1
LOC
SEL
—DI1—
1001:START/STOP (E1)
—DI2—
—DI3—
I/O SETTINGS
LOC
EXIT 00:00
EDIT
1001 EXT1 COMMANDS
PAR EDIT
DI1
CANCEL SAVE
00:00
[1]
LOC
1001 EXT1 COMMANDS
PAR EDIT
DI1,2
CANCEL SAVE00:00
[2]
LOC
SAVE
CANCE
