ACS550-02/U2 User’s Manual 75
Control panels

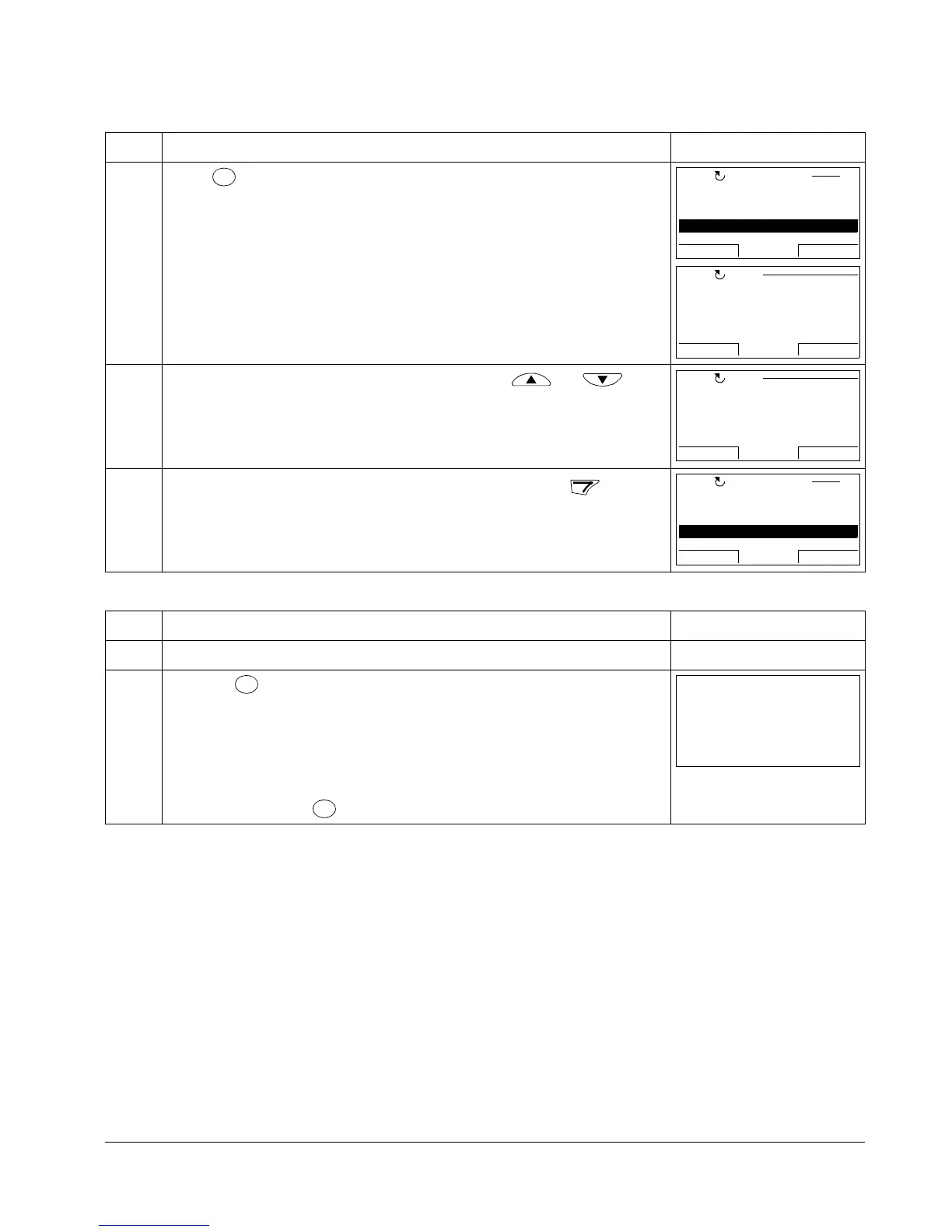

How to get help
How to find out the panel version
Step Action Display
1. Press to read the context-sensitive help text for the item that is highlighted.
If help text exists for the item, it is shown on the display.
2. If the whole text is not visible, scroll the lines with keys and .
3. After reading the text, return to the previous display by pressing .
Step Action Display
1. If the power is switched on, switch it off.
2. Keep key pressed down while you switch on the power and read the
information. The display shows the following panel information:
Panel FW: panel firmware version
ROM CRC: panel ROM check sum
Flash Rev: flash content version
Flash content comment.
When you release the key, the panel goes to the Output mode.
?
01 OPERATING DATA
03 FB ACTUAL SIGNALS
04 FAULT HISTORY
10 START/STOP/DIR
11 REFERENCE SELECT
PAR GROUPS 10
EXIT SEL00:00
LOC
EXIT
00:00
This group defines
external sources
(EXT1 and EXT2) for
commands that enable
start, stop and
HELPLOC
EXIT 00:00
external sources
(EXT1 and EXT2) for
commands that enable
start, stop and
direction changes.
HELP
LOC
EXIT
01 OPERATING DATA
03 FB ACTUAL SIGNALS
04 FAULT HISTORY
10 START/STOP/DIR
11 REFERENCE SELECT
PAR GROUPS 10
EXIT SEL
00:00
LOC
?
?
Panel FW: x.xx
ROM CRC: xxxxxxxxxx
Flash Rev: x.xx
xxxxxxxxxxxxxxxxxxxxx
PANEL VERSION INFO
