ACS550-02/U2 User’s Manual 81
Control panels
Assistants mode
When the drive is first powered up, the Start-up Assistant guides you through the
setup of the basic parameters. The Start-up Assistant is divided into assistants, each
of which guides you through the task of specifying a related parameter set, for
example Motor Set-up or PID Control. You can activate the assistants one after the
other as the Start-up Assistant suggests, or independently. The tasks of the
assistants are listed in the table on page 82.
In the Assistants mode, you can:
• use assistants to guide you through the specification of a set of basic parameters
• start, stop, change the direction and switch between local and remote control.
How to use an assistant

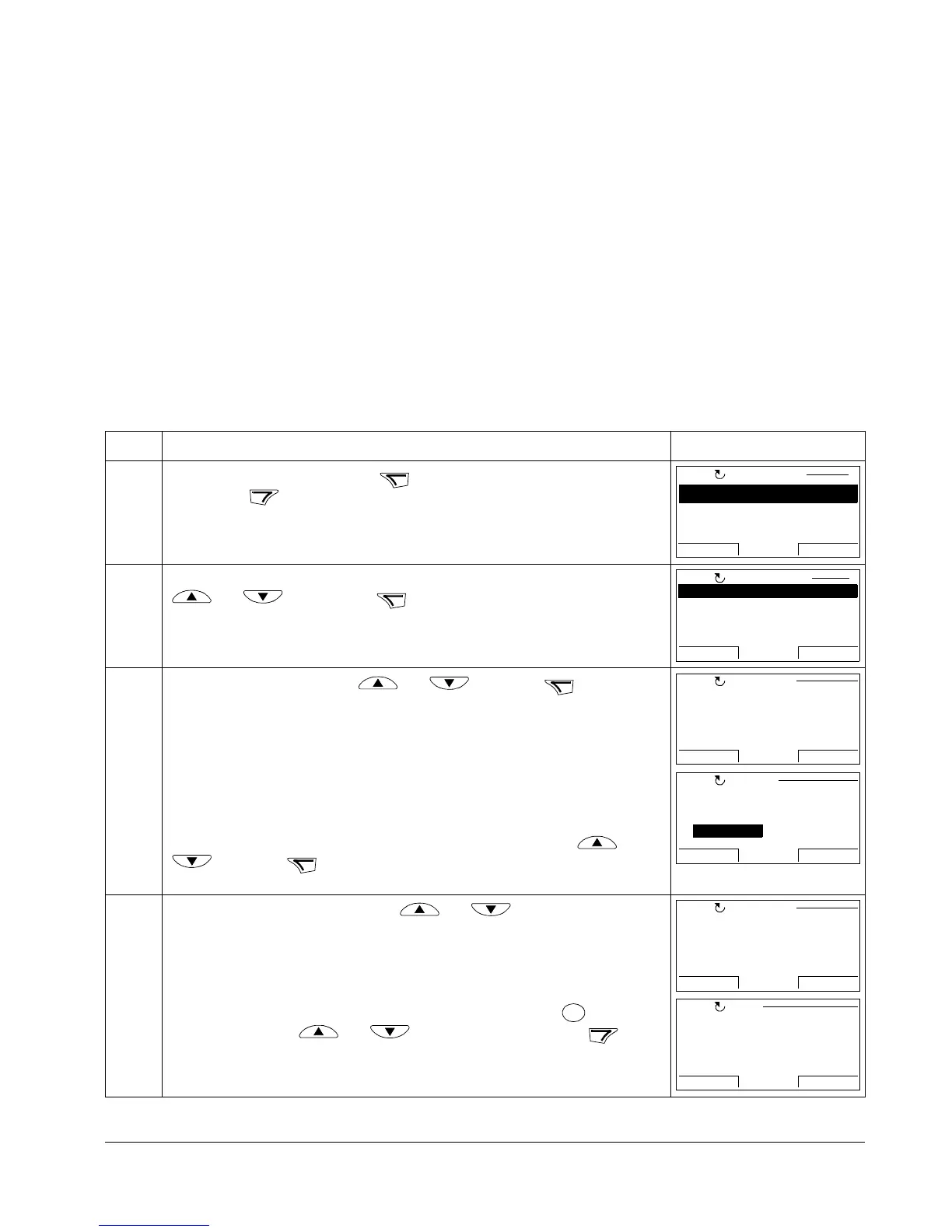

The table below shows the basic operation sequence which leads you through
assistants. The Motor Set-up Assistant is used as an example.
Step Action Display
1. Go to the Main menu by pressing if you are in the Output mode, otherwise
by pressing repeatedly until you get to the Main menu.
2. Go to the Assistants mode by selecting ASSISTANTS on the menu with keys
and , and pressing .
3. Select the assistant with keys and , and press .
If you select any other assistant than the Start-up Assistant, it guides you
through the task of specification of its parameter set as shown in steps 4. and 5.
below. After that you can select another assistant on the Assistants menu or exit
the Assistants mode. The Motor Set-up Assistant is used here as an example.
If you select the Start-up Assistant, it activates the first assistant, which guides
you through the task of specification of its parameter set as shown in steps 4.
and 5. below. The Start-up Assistant then asks if you want to continue with the
next assistant or skip it – select the appropriate answer with keys and
, and press . If you choose to skip, the Start-up Assistant asks the
same question about the next assistant, and so on.
4. • To specify a new value, press keys and .
• To ask for information on the requested parameter, press key . Scroll the
help text with keys and . Close the help by pressing .
MENU
EXIT
PARAMETERS
ASSISTANTS
CHANGED PAR
EXIT ENTER00:00
MAIN MENU 1
LOC
ENTER
Start-up assistant
Motor Set-up
Application
Speed control EXT1
Speed control EXT2
EXIT
SEL
00:00
ASSISTANTS 1LOC
SEL
9905 MOTOR NOM VOLT
PAR EDIT
220 V
EXIT SAVE00:00
LOC
SEL
Do you want to
continue with
application setup?
Continue
Skip
EXIT
OK
00:00
CHOICELOC
9905 MOTOR NOM VOLT
PAR EDIT
240 V
EXIT SAVE00:00
LOC
?
EXIT
EXIT
00:00
Set as given on the
motor nameplate.
Voltage value must
correspond to motor
D/Y connection.
HELPLOC
