ACS550-02/U2 User’s Manual 79
Control panels
Parameters mode
In the Parameters mode, you can:
• view and change parameter values
• start, stop, change the direction and switch between local and remote control.

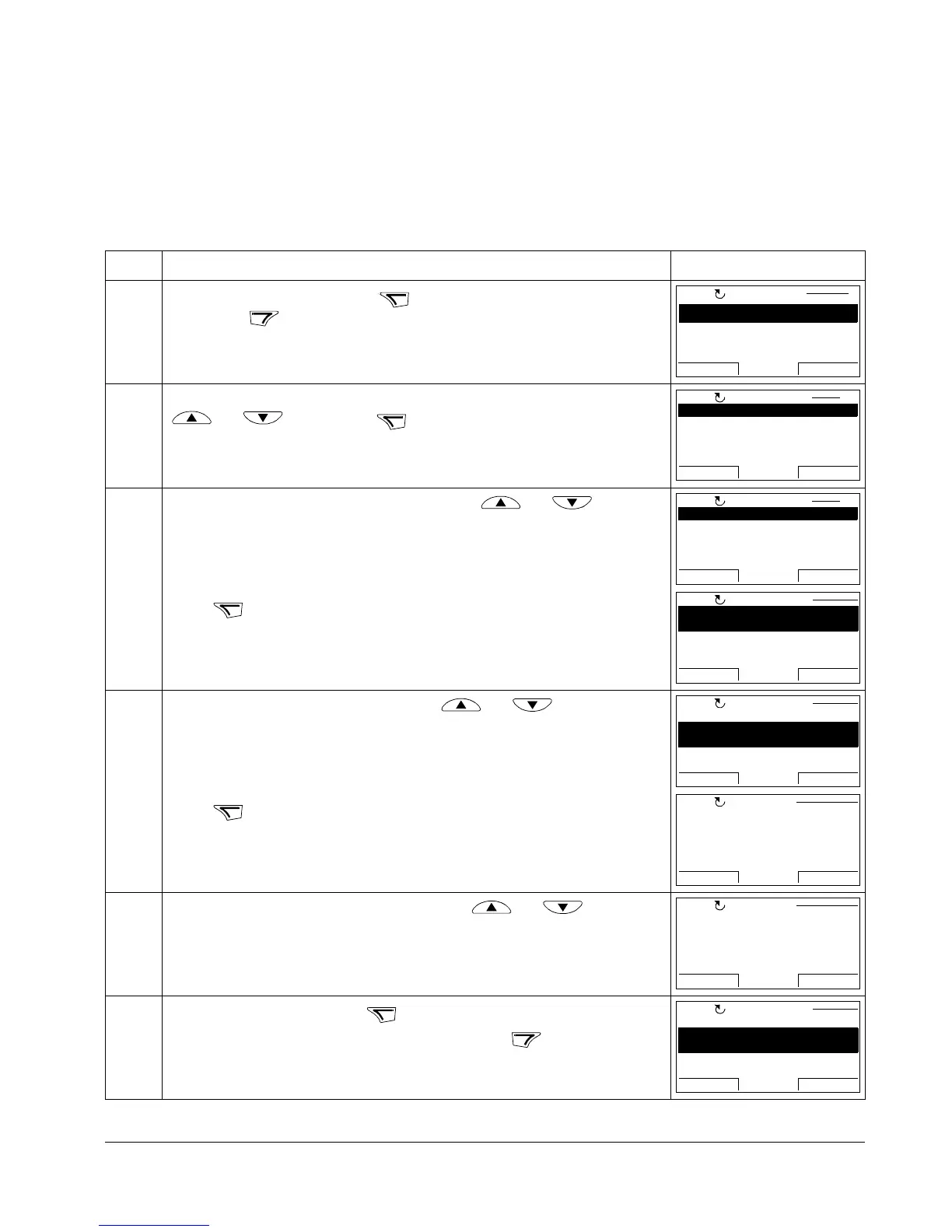

How to select a parameter and change its value
Step Action Display
1. Go to the Main menu by pressing if you are in the Output mode, otherwise
by pressing repeatedly until you get to the Main menu.
2. Go to the Parameters mode by selecting PARAMETERS on the menu with keys
and , and pressing .
3. Select the appropriate parameter group with keys and .
Press .
4. Select the appropriate parameter with keys and . The current
value of the parameter is shown below the selected parameter.
Press .
5. Specify a new value for the parameter with keys and .
Pressing the key once increments or decrements the value. Holding the key
down changes the value faster. Pressing the keys simultaneously replaces the
displayed value with the default value.
6. • To save the new value, press .
• To cancel the new value and keep the original, press .
MENU
EXIT
PARAMETERS
ASSISTANTS
CHANGED PAR
EXIT ENTER
00:00
MAIN MENU 1
LOC
ENTER
01 OPERATING DATA
03 FB ACTUAL SIGNALS
04 FAULT HISTORY
10 START/STOP/DIR
11 REFERENCE SELECT
EXIT
SEL00:00
PAR GROUPS 01
LOC
99 START-UP DATA
01 OPERATING DATA
03 FB ACTUAL SIGNALS
04 FAULT HISTORY
10 START/STOP/DIR
EXIT
SEL00:00
PAR GROUPS 99
LOC
SEL
9901 LANGUAGE
ENGLISH
9902 APPLIC MACRO
9904 MOTOR CTRL MODE
9905 MOTOR NOM VOLT
PARAMETERS
EXIT
EDIT00:00
LOC
9901 LANGUAGE
9902 APPLIC MACRO
ABB STANDARD
9904 MOTOR CTRL MODE
9905 MOTOR NOM VOLT
PARAMETERS
EXIT
EDIT00:00
LOC
EDIT
9902 APPLIC MACRO
PAR EDIT
ABB STANDARD
CANCEL SAVE00:00
[1]
LOC
9902 APPLIC MACRO
PAR EDIT
3-WIRE
CANCEL SAVE
00:00
[2]
LOC
SAVE
CANCE
