• Blocking of position indications, BL_UPD. This input will block all inputs
related to apparatus positions for all configured functions within the bay.
• Blocking of commands, BL_CMD. This input will block all commands for all
configured functions within the bay.
• Blocking of function, BLOCK, signal from DO (Data Object) Behavior (IEC
61850–8–1). If DO Behavior is set to "blocked" it means that the function is
active, but no outputs are generated, no reporting, control commands are rejected
and functional and configuration data is visible.
The switching of the Local/Remote switch requires at least system operator level. The
password will be requested at an attempt to operate if authority levels have been
defined in the IED. Otherwise the default authority level, SuperUser, can handle the
control without LogOn. The users and passwords are defined in PCM600.
12.2.9.3 Local remote/Local remote control LOCREM/LOCREMCTRL
The function block Local remote (LOCREM) handles the signals coming from the
local/remote switch. The connections are seen in figure
178, where the inputs on
function block LOCREM are connected to binary inputs if an external switch is used.
When the local HMI is used, the inputs are not used and are set to FALSE in the
configuration. The outputs from the LOCREM function block control the output
PSTO (Permitted Source To Operate) on Bay control (QCBAY).
LOCREMCTRL
PSTO1
PSTO2
PSTO3
PSTO4
PSTO5
PSTO6
PSTO7
PSTO8
PSTO9
PSTO10
PSTO11
PSTO12
HMICTR1
HMICTR2
HMICTR3
HMICTR4
HMICTR5
HMICTR6
HMICTR7
HMICTR8
HMICTR9
HMICTR10
HMICTR11
HMICTR12
QCBAY
LR_ OFF
LR_ LOC
LR_ REM
LR_ VALID
BL_ UPD
BL_ CMD
PSTO
UPD_ BLKD
CMD_ BLKD
LOCREM
CTRLOFF
LOCCTRL
REMCTRL
LHMICTRL
OFF
LOCAL
REMOTE
VALID
IEC 09000208_1_en. vsd
LOC
REM
IEC09000208 V2 EN

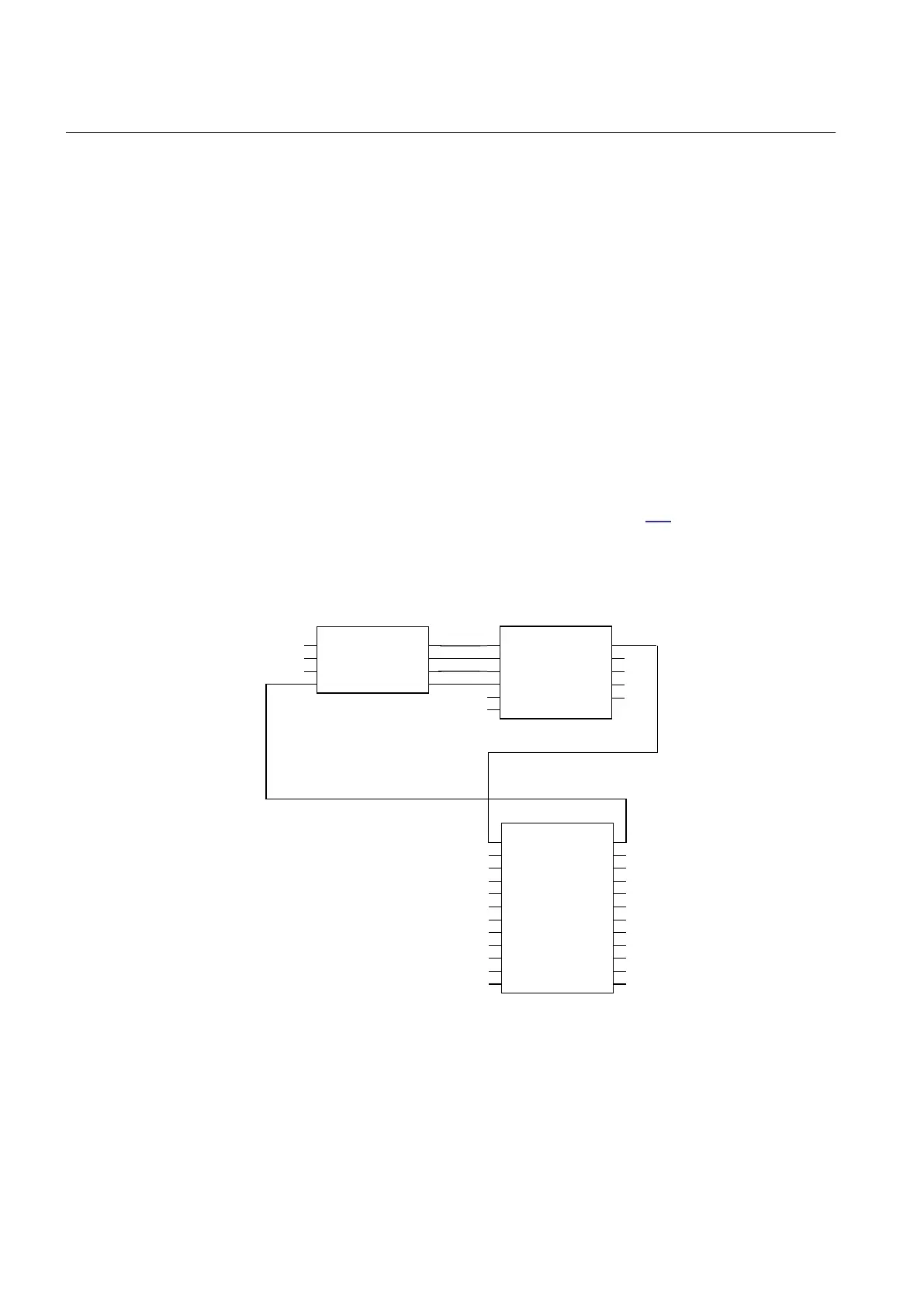

Figure 178: Configuration for the local/remote handling for a local HMI with one
bay and one screen page
The switching of the local/remote switch requires at least system operator level. The
password will be requested at an attempt to operate if authority levels have been
Section 12 1MRK 502 048-UEN A
Control
354
Technical manual
