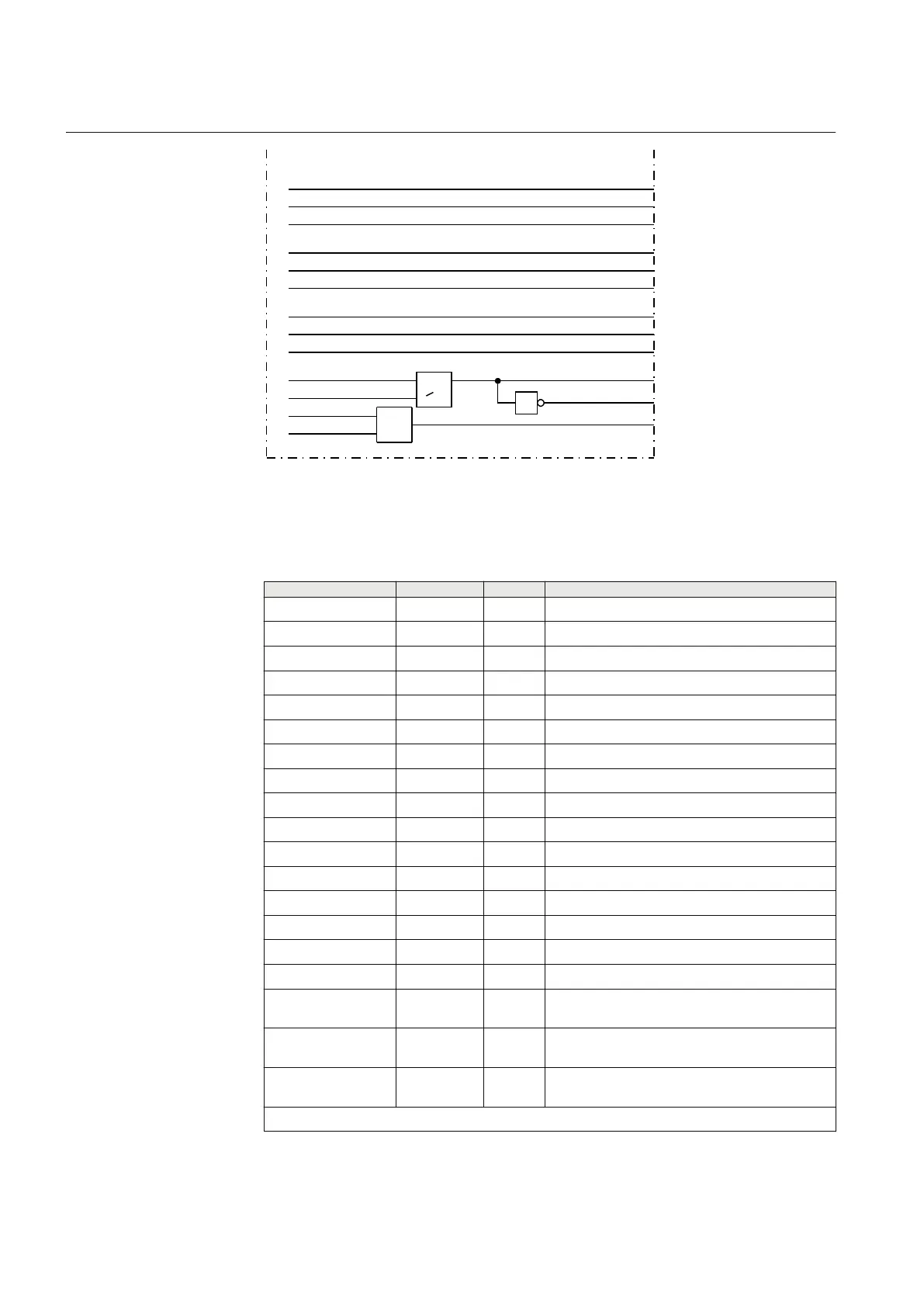

ABB REG650 User Manual

VPQB2
VPQB1
QB2_OP
QB1_OP
1
QB12CLTR
QB12OPTR
en04000532.vsd
>1
&
VPQB12TR
QB7OPTR
QB7CLTR
VPQB7TR
QB7_OP
QB7_CL
VPQB7
VPQB2
QB2_CL
QB2_OP QB2OPTR
QB2CLTR
VPQB2TR
QB1OPTR
QB1CLTR
VPQB1TR
QB1_OP
QB1_CL
VPQB1
IEC04000532 V1 EN
12.3.9.5 Signals
Table 257: ABC_LINE Input signals
Name
Type Default Description
QA1_OP BOOLEAN 0 QA1 is in open position
QA1_CL BOOLEAN 0 QA1 is in closed position
QB9_OP BOOLEAN 0 QB9 is in open position
QB9_CL BOOLEAN 0 QB9 is in closed position
QB1_OP BOOLEAN 0 QB1 is in open position
QB1_CL BOOLEAN 0 QB1 is in closed position
QB2_OP BOOLEAN 0 QB2 is in open position
QB2_CL BOOLEAN 0 QB2 is in closed position
QB7_OP BOOLEAN 0 QB7 is in open position
QB7_CL BOOLEAN 0 QB7 is in closed position
QC1_OP BOOLEAN 0 QC1 is in open position
QC1_CL BOOLEAN 0 QC1 is in closed position
QC2_OP BOOLEAN 0 QC2 is in open position
QC2_CL BOOLEAN 0 QC2 is in closed position
QC9_OP BOOLEAN 0 QC9 is in open position
QC9_CL BOOLEAN 0 QC9 is in closed position
QC11_OP BOOLEAN 0 Earthing switch QC11 on busbar WA1 is in open
position
QC11_CL BOOLEAN 0 Earthing switch QC11 on busbar WA1 is in closed
position
QC21_OP BOOLEAN 0 Earthing switch QC21 on busbar WA2 is in open
position
Table continues on next page
Section 12 1MRK 502 048-UEN A
Control
402
Technical manual
