12.3.2.6 Settings
The function does not have any settings available in Local HMI or Protection and
Control IED Manager (PCM600).

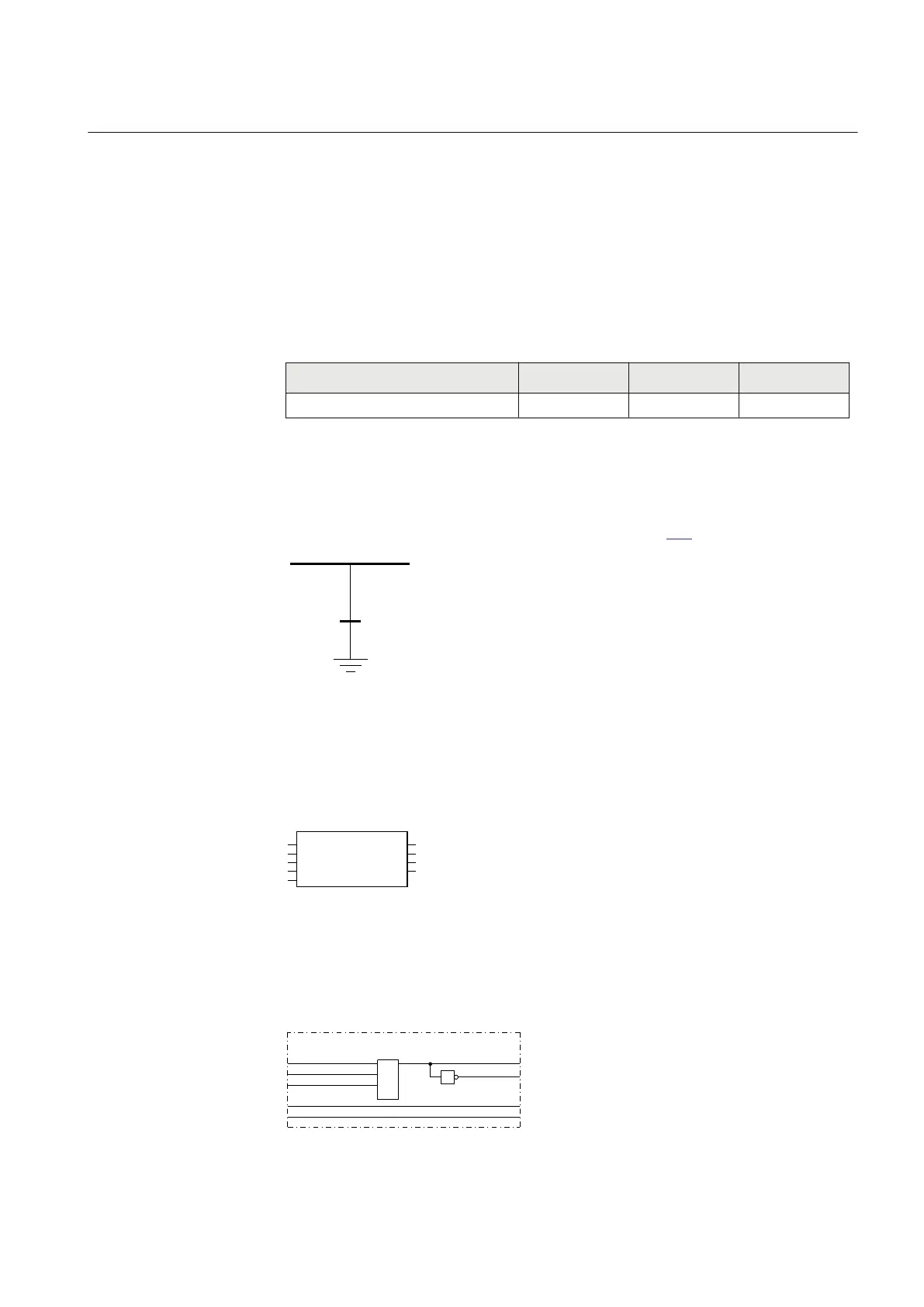

12.3.3 Interlocking for busbar earthing switch BB_ES
12.3.3.1 Identification
Function description IEC 61850
identification
IEC 60617
identification
ANSI/IEEE C37.2
device number
Interlocking for busbar earthing switch BB_ES - 3
12.3.3.2 Functionality
The interlocking for busbar earthing switch (BB_ES) function is used for one busbar
earthing switch on any busbar parts according to figure 181.
QC
en04000504.vsd
IEC04000504 V1 EN
Figure 181: Switchyard layout BB_ES
12.3.3.3 Function block
BB_ES
QC_OP
QC_CL
BB_DC_OP
VP_BB_DC
EXDU_BB
QCREL
QCITL
BBESOPTR
BBESCLTR
IEC09000071_1_en.vsd
IEC09000071 V1 EN
Figure 182: BB_ES function block
12.3.3.4 Logic diagram
EXDU_BB
en04000546.vsd
VP_BB_DC
BB_DC_OP
1
QCREL
QCITL
&
BBESOPTR
BBESCLTR
QC_OP
QC_CL
BB_ES
IEC04000546 V1 EN
1MRK 502 048-UEN A Section 12
Control
357
Technical manual
