14.1.6.2 Function block
The available function blocks of an IED are depending on the actual hardware (TRM)
and the logic configuration made in PCM600.
IEC08000224-2-en.vsd
VMSQI
U3P* 3U0
3U0RANG
3U0ANGL
U1
U1RANG
U1ANGL
U2
U2RANG
U2ANGL
IEC08000224 V2 EN

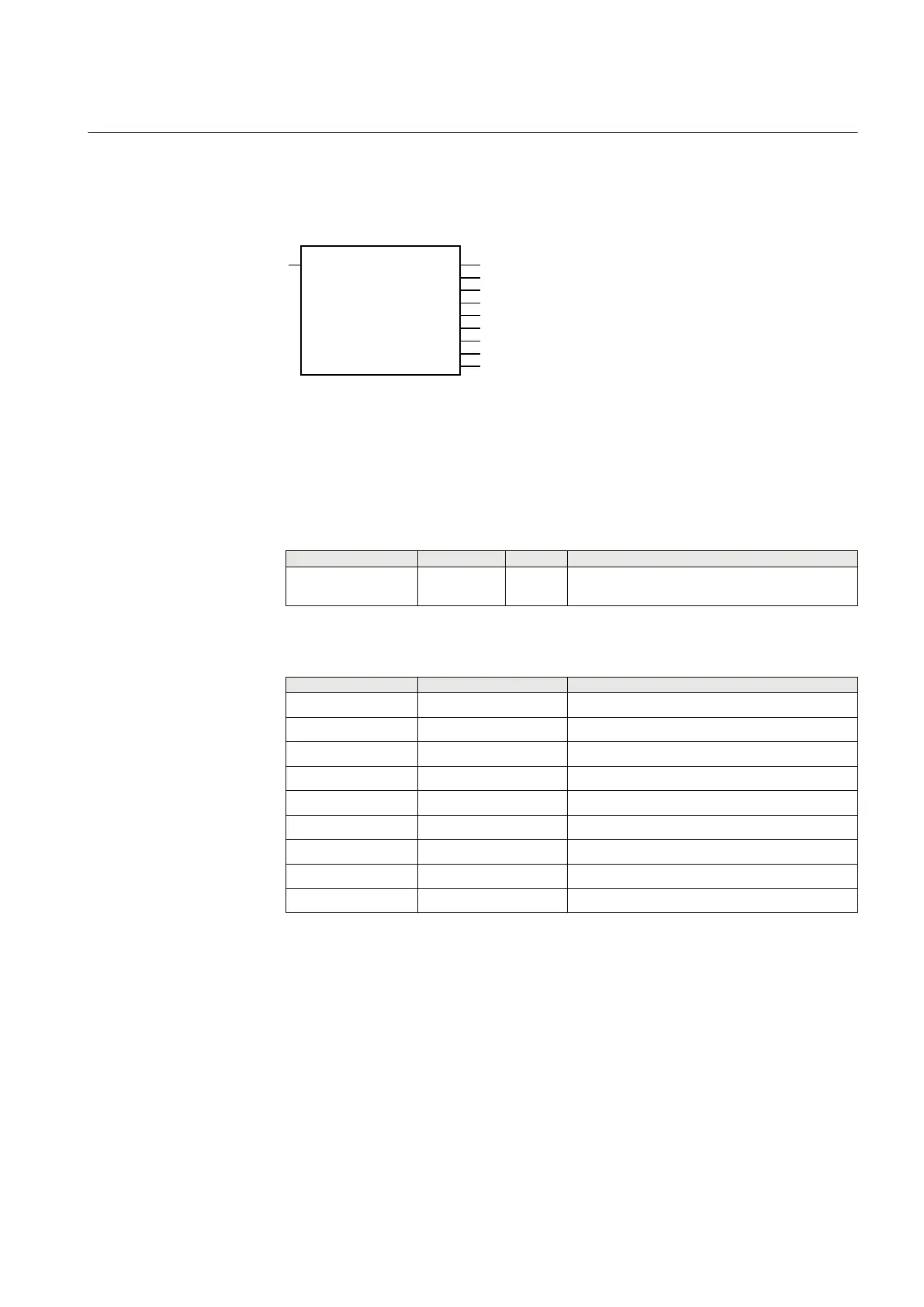

Figure 239: VMSQI function block
14.1.6.3 Signals
Table 365: VMSQI Input signals
Name Type Default Description
U3P GROUP
SIGNAL
- Three phase group signal for voltage inputs
Table 366: VMSQI Output signals
Name
Type Description
3U0 REAL 3U0 Amplitude
3U0RANG INTEGER 3U0 Amplitude range
3U0ANGL REAL 3U0 Angle
U1 REAL U1 Amplitude
U1RANG INTEGER U1 Amplitude range
U1ANGL REAL U1 Angle
U2 REAL U2 Amplitude
U2RANG INTEGER U2 Amplitude range
U2ANGL REAL U2 Angle
1MRK 502 048-UEN A Section 14
Monitoring
485
Technical manual
