Atlas Copco Dynapac F3030C User Manual

D30 6

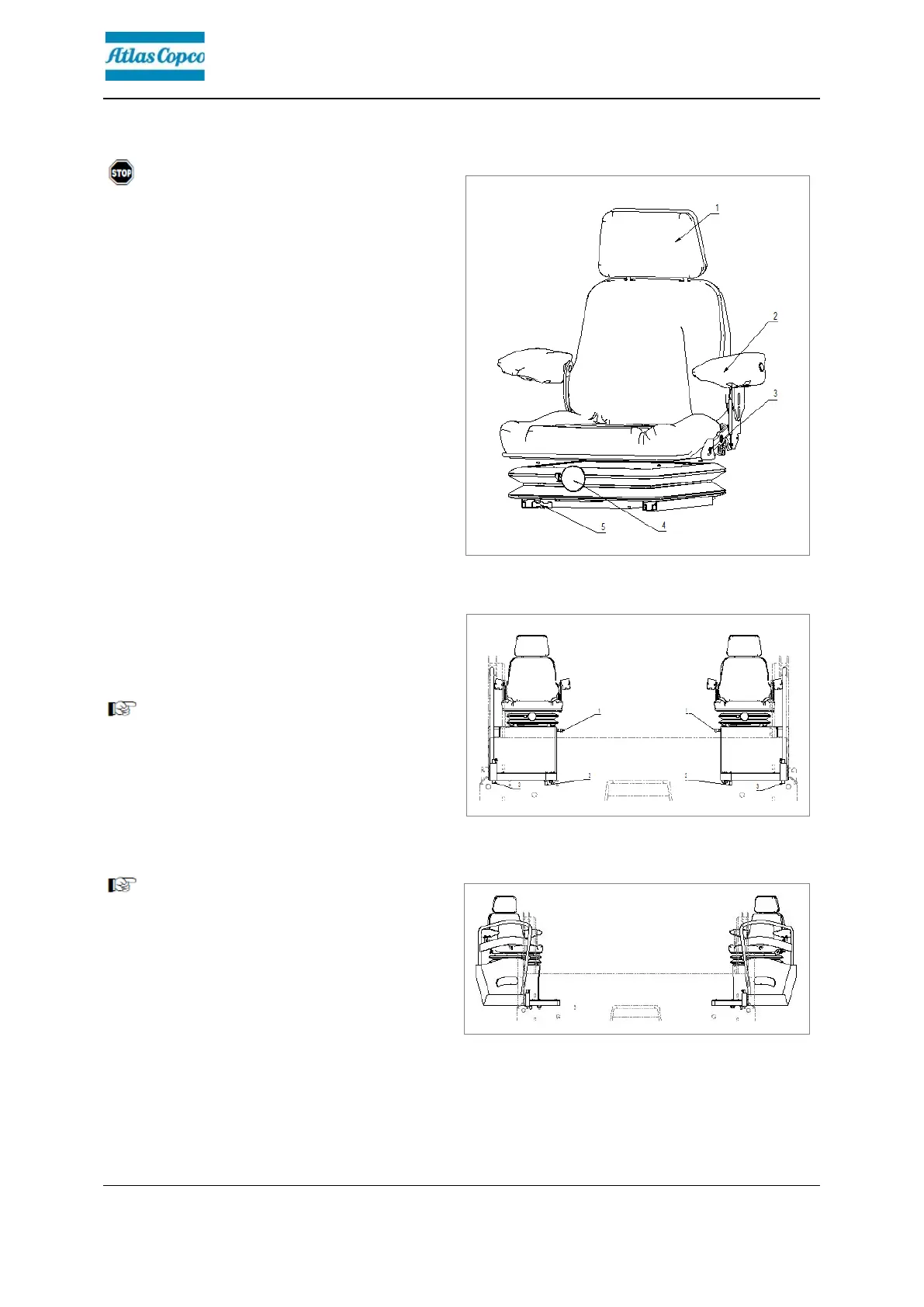

Driver’s seat, type
To avoid damage to health, the
individual seat settings should be
checked and adjusted before starting
the vehicle.
1. Pillow
2. Handle
3. Backrest support adjusting handle：
Adjust (3) to get proper angle and
position.
4. Weight setting lever：
The relevant driver's weight should
be set by turning the weight
adjustment lever (4) when the driver's
seat is unoccupied.
5. Front and rear adjusting handle：
Turn handle (5) can move seat
forward or backward to provide a
suitable position for the driver.
The seat is locked on the machine by
latch (2) on the normal position. The
latch must be fixed during transport.
The seat can be swiveled out if
needed.
Pull handle (1) and push the
seat out, then release handle (1) the
seat can be locked. When seat is
swiveled, turn lever (1), latch (2) is
released via flexible shaft, meanwhile
push the seat.Seat rotates around(3),
and when it rotates 30° to desired
position, latch (2) will engage into slot automatically to lock seat with the vehicle.
Check the latch after seat swiveling out.
Seat in 30°swivelled out position
Seat in normal position
