E11 27
Mounting the big ski bracket on the crossbeam
The entire big ski construction
is mounted laterally on the
crossbeams. To do so, the two
crossbeam brackets must first
be mounted. The crossbeam
bracket design differs slightly
depending on the paver finisher
which is used.
During assembly, it is possible
either to bolt the bracket directly
at the existing bores or, as
described in the following, to
secure it to the crossbeam
using clamping plates.
The front bracket is mounted
directly behind the traction point; the rear bracket is mounted at approximately the
height of the auger.

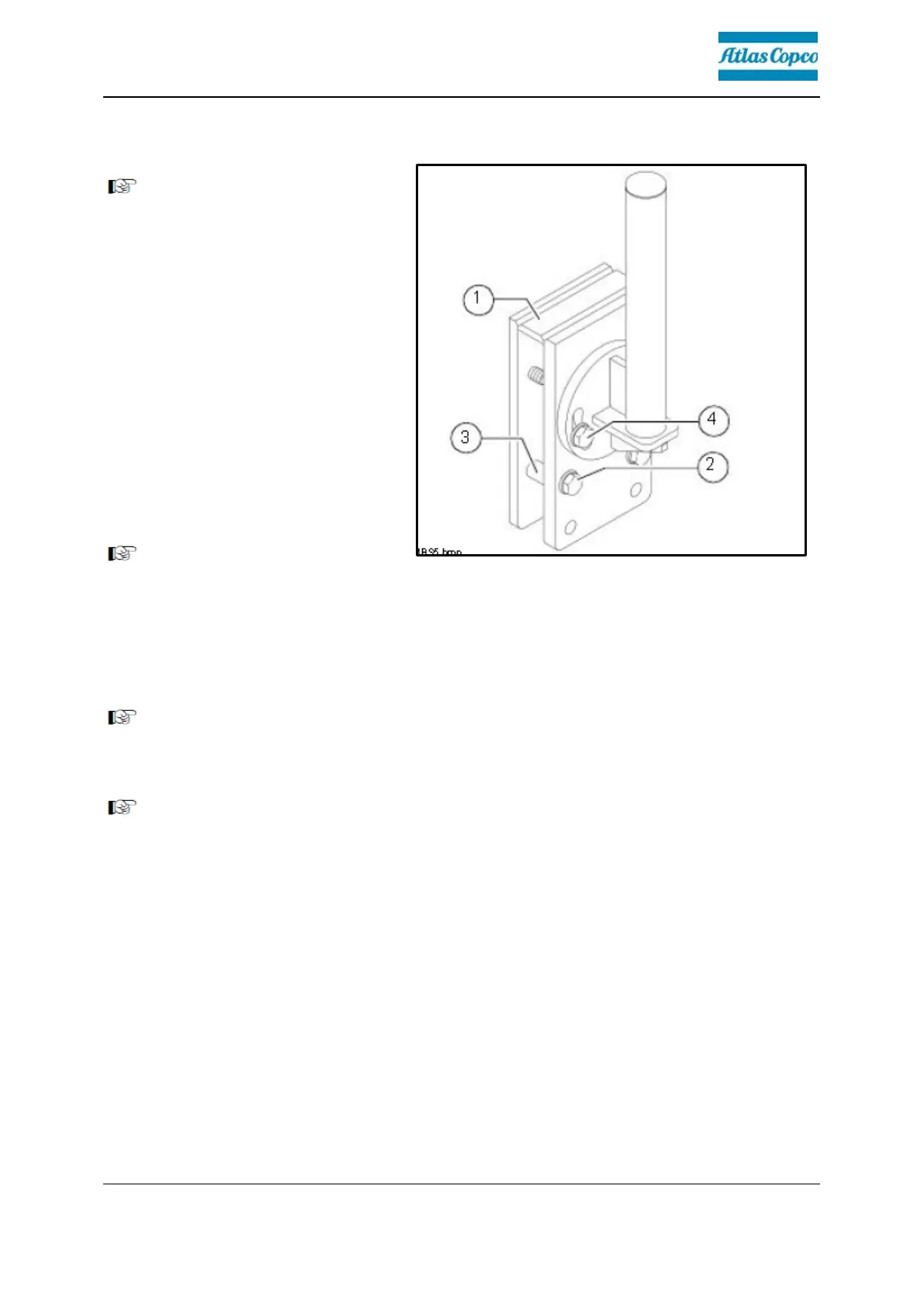

- Place both brackets (1) over the crossbeam at the corresponding point and
mount with bolts (2) and sleeves (3).
For different crossbeam thicknesses, use the mounting's corresponding bores.
- The mounting tube is aligned via the two bolts (4).
Align the bracket vertically.
