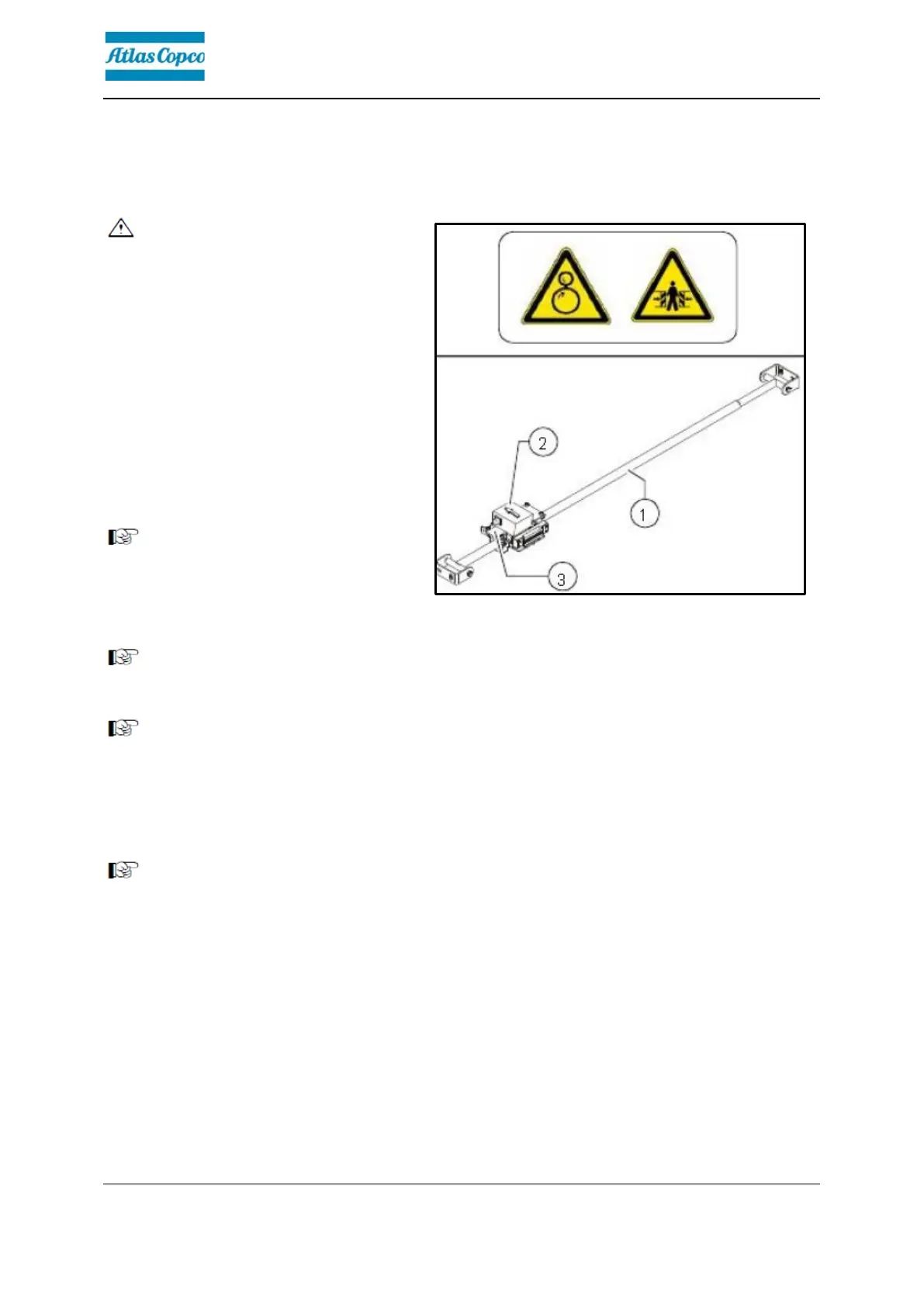

5. Levelling
5.1 Slope controller
During operation, no work may be
carried out on the slope control
linkage or the slope controller!
- Mount the slope control linkage
(1) in the intended position
between the two crossbeams.
- Mount the slope controller (2) on
the slope control linkage's
retaining plate (3).
Four securing holes are provided
for mounting on the sensor's
retaining plate.
The digital slope controller must be mounted in such a way that the marking arrow
on the housing points in the direction of travel.
The analogue slope controller must be mounted in such a way that the displays for
the operator visibly point backwards.
- Connect the left or right connection cable to the intended handset or vehicle
socket.
Exhaustive operating instructions can be found in the documentation for the
corresponding levelling system.
