D30 17
Ultrasonic auger limit switches (left and right)-PLC version
The limit switches control the material
flow at the relevant half of the auger
without contact.

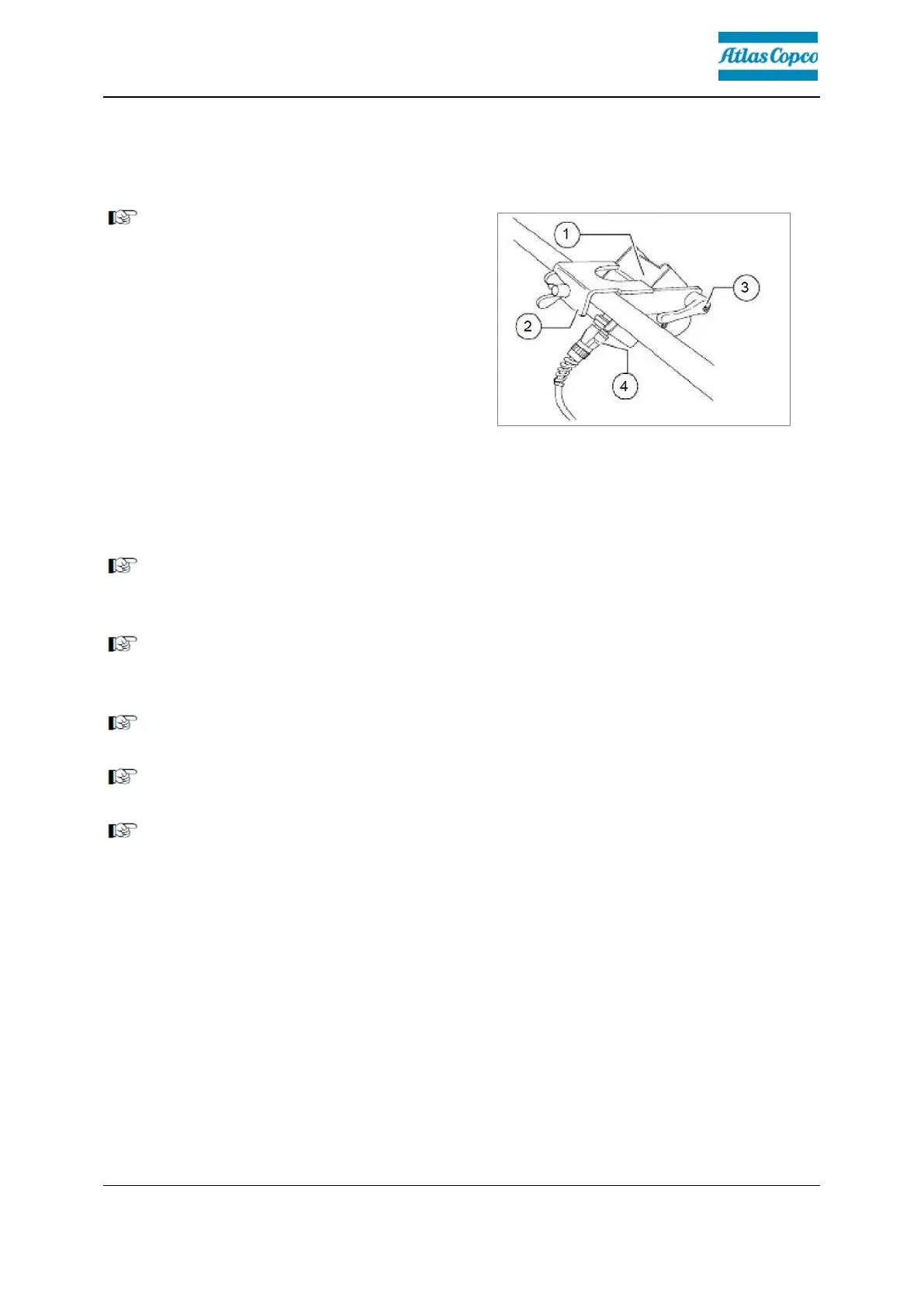

The ultrasonic sensor (1) is secured to
the side shield via a bracket (2).
- To adjust, release the clamping
lever/stop screw (3) and adjust the
sensor’s angle.
- After adjusting, retighten all mounting parts properly.
The connection cables (4) are connected to the relevant sockets on the remote
control bracket.
The sensors should be adjusted so that 2/3 of the augers are covered with paving
material.
The paving material must be conveyed over the full working width.
We recommend adjusting the limit switch positions during material distribution.
In vehicles with a PLC control system, the deactivation point is set on the remote
control.
