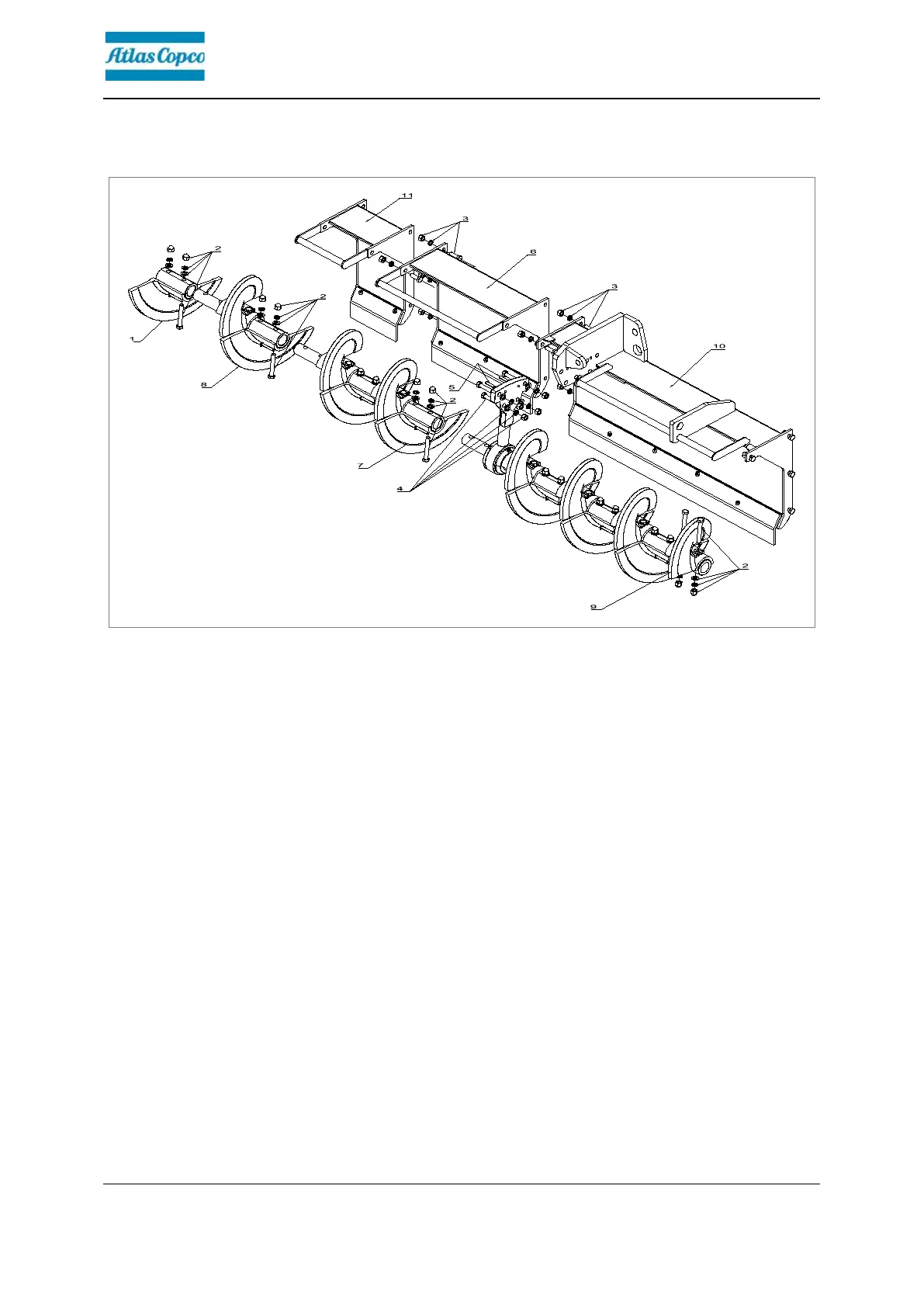

3.1 Mounting the auger shaft extension and chute plate
- Secure the additional chute plate(6),(10),(11) to the basic unit or the adjacent material
shafts with relevant assembly parts(3)(bolts, washers, nuts).
- Dismantle the adjacent auger blades(1),(7),(9), and insert the auger shaft extension
into the auger shaft.
- Reinstall the previously removed auger blades(1),(7),(9) and simultaneously tighten
relevant assembly parts(2) (bolts, washers, nuts) of auger shaft extension.
