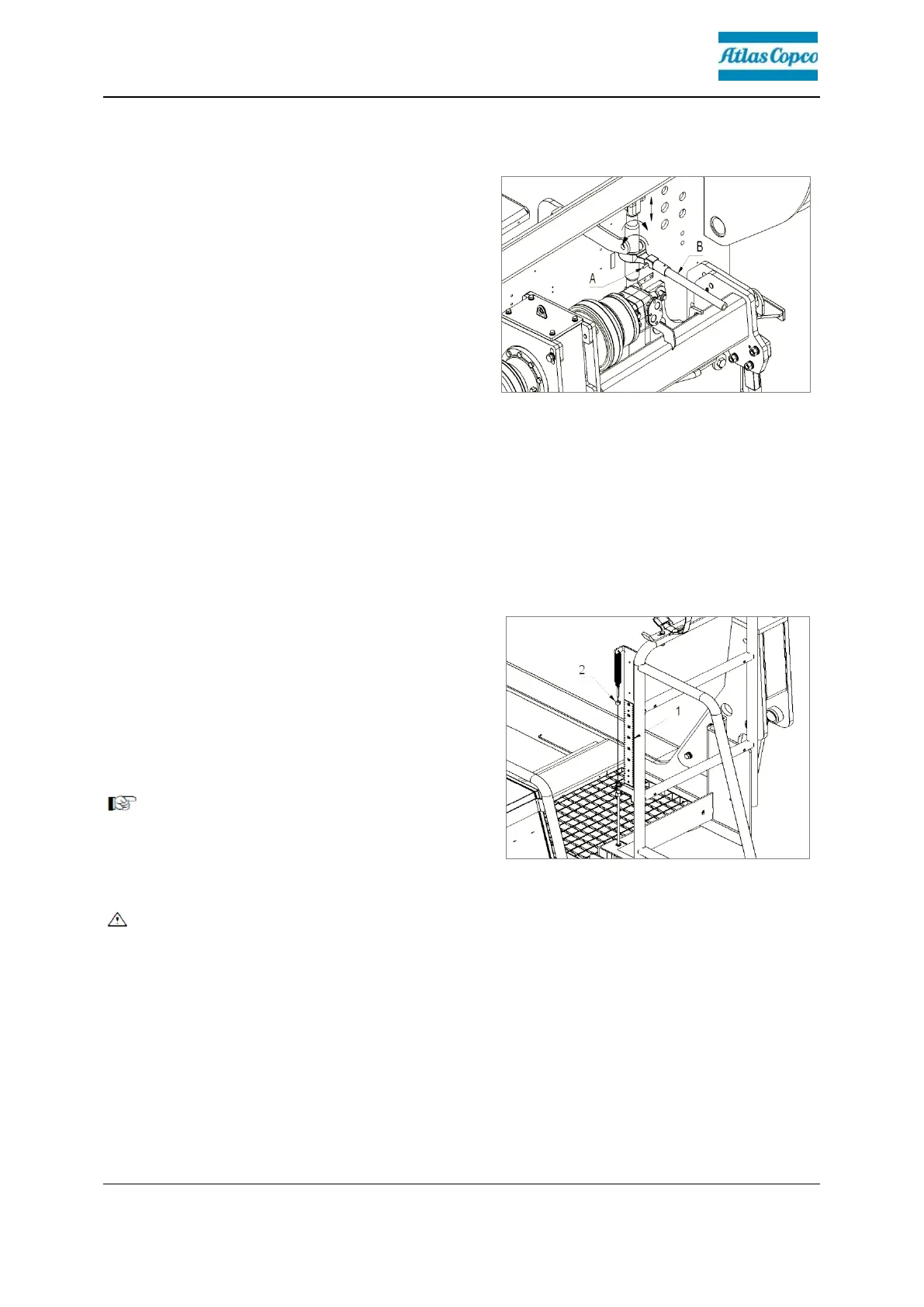

2.2 Mechanical adjustment with ratchet
- Set the ratchet direction lever (A) to the
clockwise or anti-clockwise direction.
Turning anti-clockwise lowers the auger,
turning clockwise lifts the auger.
- Actuate the ratchet level (B) and set the
desired height by alternatingly adjusting
the right-hand and the left-hand side.
- The current height can be read at the
scale.
2.3 Hydraulic adjustment
Auger height indicators
- A scale (1), on which the currently set
auger height can be read off , is located
on the left and right sides of the ladder.
Display in mm
- Loosen the clamping bolt (2) to change
the position of the indicator.
When setting the auger height,adjustment must be carried out evenly on both sides
to prevent the auger from jamming!
