E11 31
Mounting the sensor bracket
A sensing system with 3 sensors is
provided over the entire length of the
big ski.
One sensor each on the centre
element, and the front and rear end
elements.
The centre sensor should be mounted
on the ski in precisely the location in
which it would be found during normal
operation (approx. the height of the
auger).
The two other sensors should be
mounted the same distance away
from it.

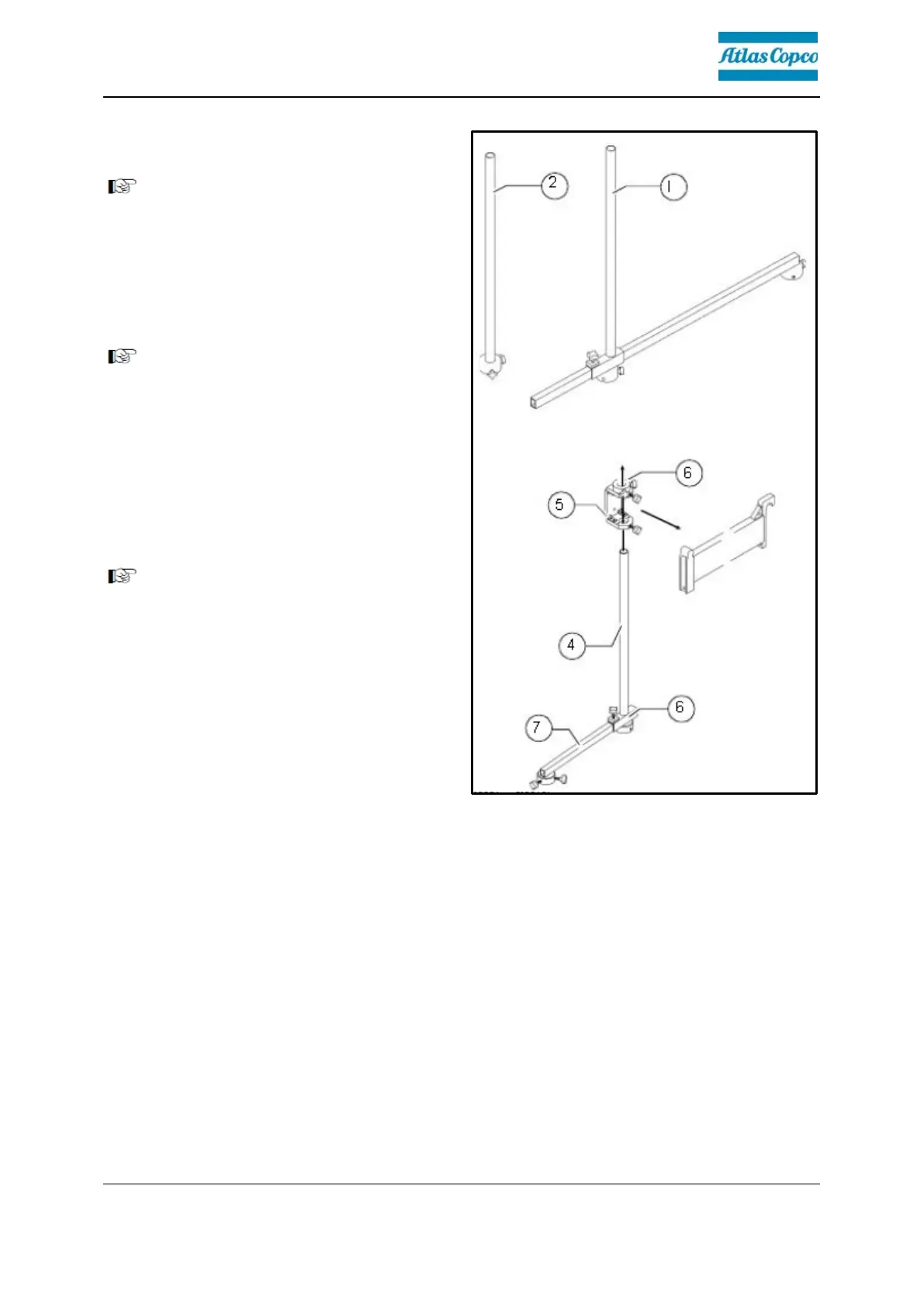

Extendable sensor brackets (1) are
mounted in the two outer positions; the
normal sensor bracket (2) is mounted
in the centre.
- Place the sliding bracket (3) over the
corresponding big ski element from
the inner side.
- Insert the sensor bracket (4) into the
sliding bracket (5) from below and
secure with the relevant star handle bolts.
- Place the clamping ring (6) onto the sensor bracket tube and secure with the
relevant star handle bolt.
- In the case of the extendable sensor brackets, slide in the arm extension (7) and
secure in position with the relevant star handle bolt.
