E11 28

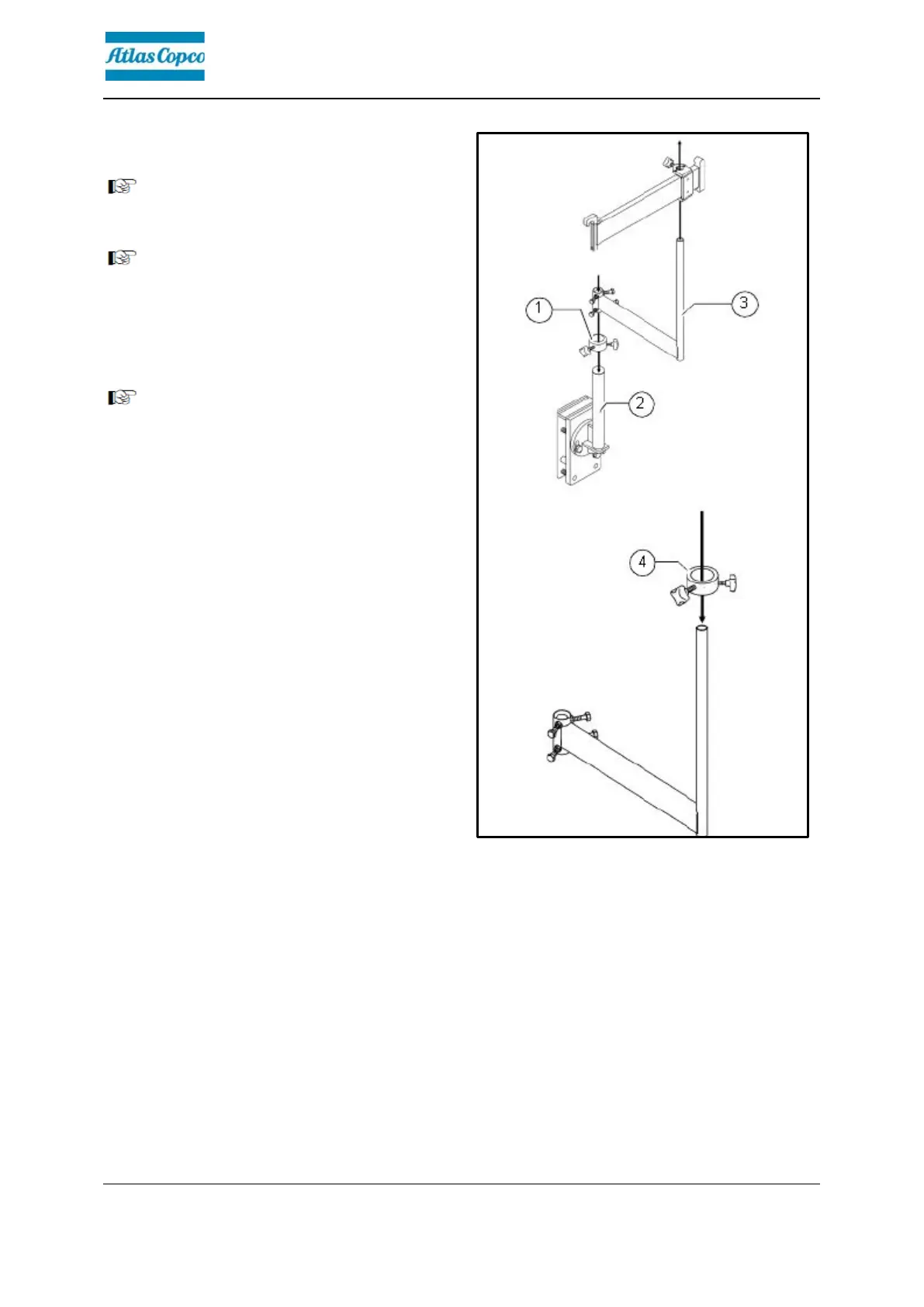

Mounting the swivel arms
- Slide a fixing ring (1) over the tube of
the big ski bracket (2).
The fixing ring's 45° chamfer must
point upwards.
- Then slide the two swivel arms (3)
onto the tube of the big ski bracket.
The rear swivel arm is positioned,
rotated by 180°, on the big ski bracket.
- Slide a fixing ring (4) (flat version)
onto the front swivel arm and secure
with the relevant star handle bolt.
