F31 6
Conveyor gearbox

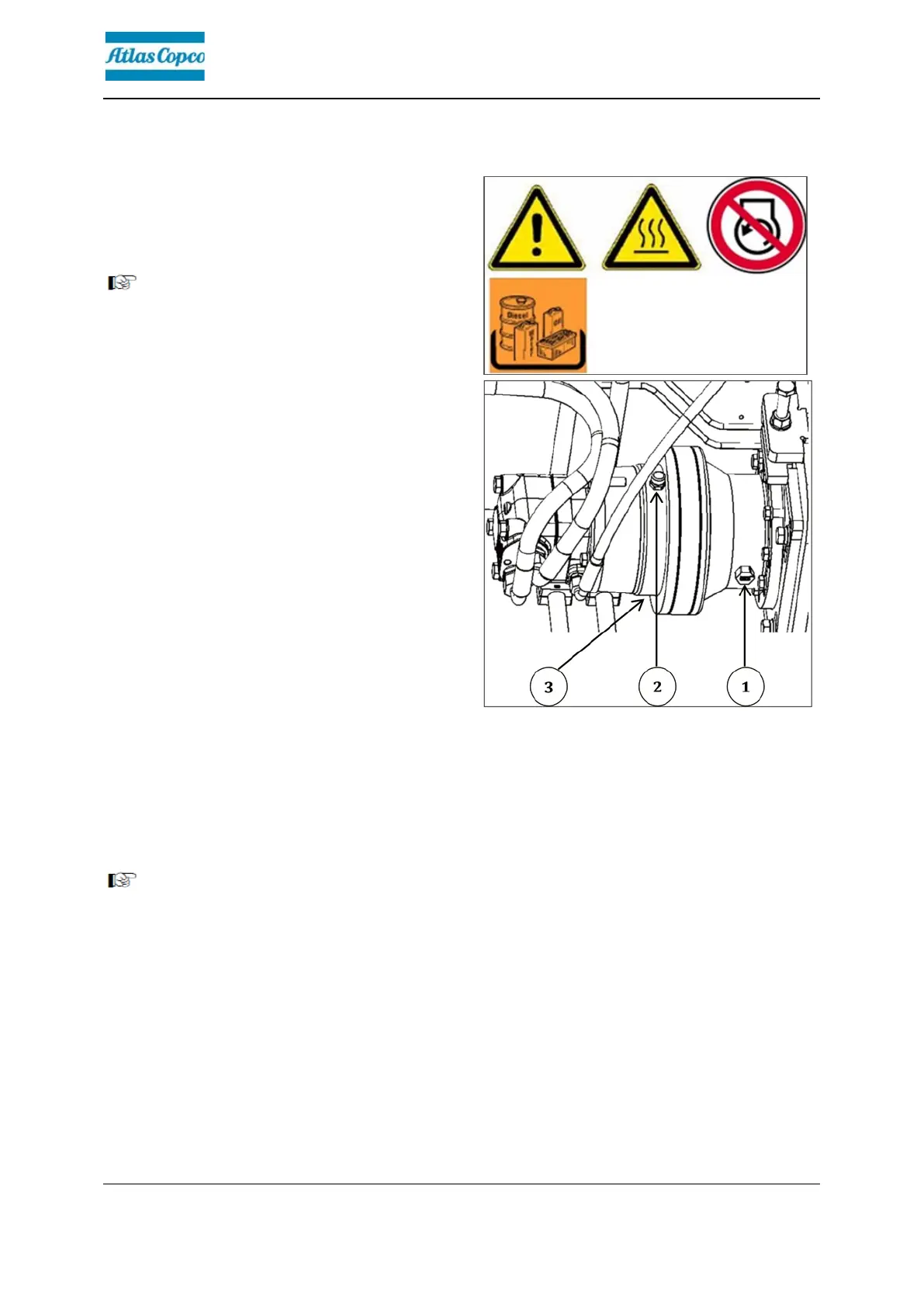

Remove plug (1) to check conveyor gear
box gear oil level.
When oil level is correct, the oil comes
up to the lower edge of the inspection bore
at a small amount of the oil escapes
through the aperture.
To fill the gear oil
- Loosen the checking screw plug (1) and
filling screw plug (2).
- Fill in the specified gear oil through filler
bore (2) until the gear oil level has
reached the lower edge of the
inspection bore (1) of the gear oil tank.
- Screw the screw plug (1) and screw
plug (2) back in.
To change the gear oil
The oil shoule be changed when at the operating temperature.
- Unscrew screw plug (2) and drain plug (3).
- Drain the gear oil.
- Screw the drain plug (3) back in.
- Unscrew the inspection screw (1).
- Fill the specified gear oil into the filler bore (2) until the gear oil level has reached
the lower edge of the inspection bore (1) of the gear oil tank.
- Screw the screw plug (1) and screw plug (2) back in.
