Mounting the centre element

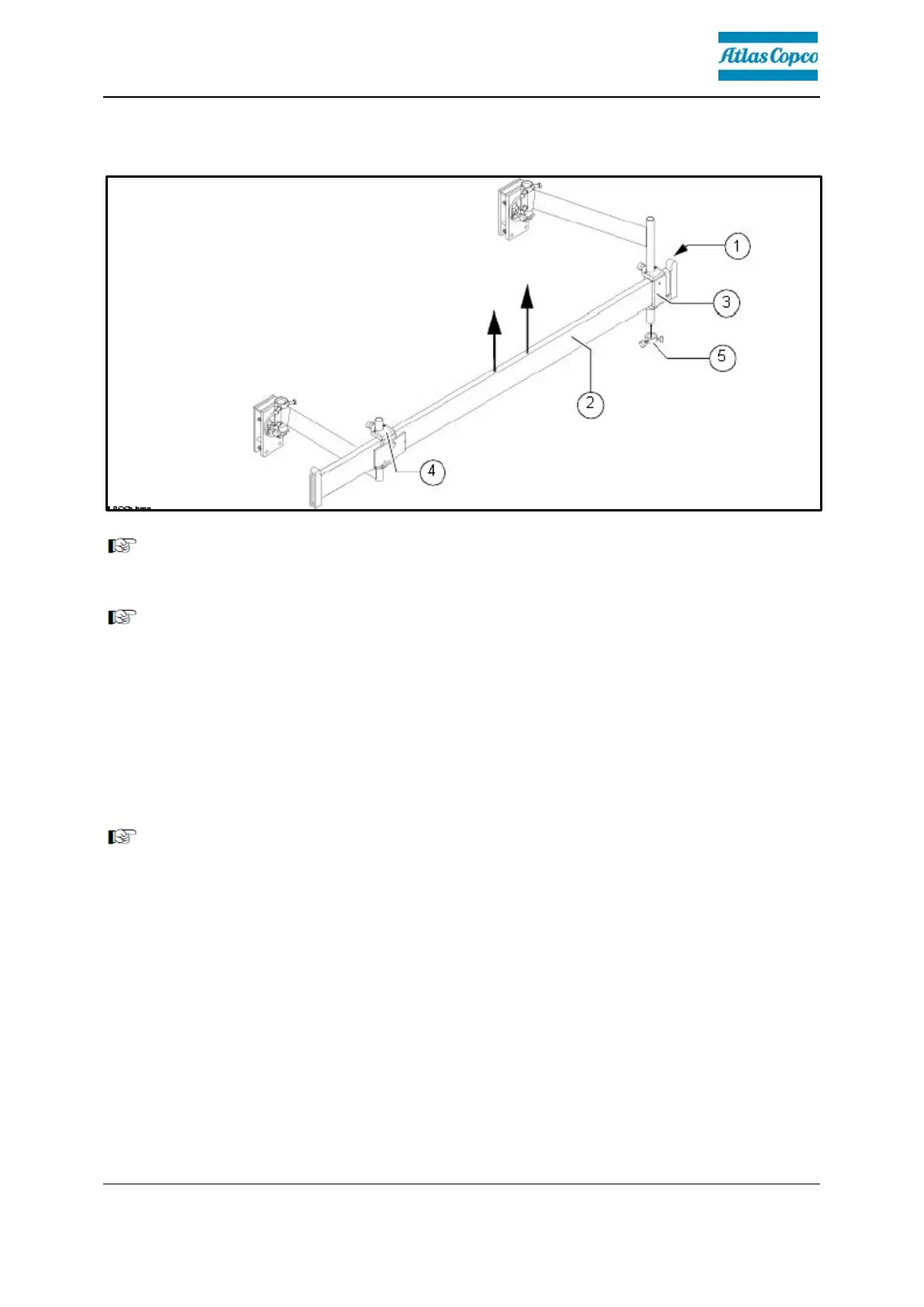

During assembly, it must be ensured that the round lug (1) for attaching the
subsequent modules points upwards.
The centre element (2) is already fitted in the factory with 2 pre-assembled sliding
parts (3) / (4), which are pushed over the two round mounting journals of the
swivel arms.
- First slide the rear sliding part (3) onto the rear swivel arm from below. Then raise
the centre element, together with the rear swivel arm, until the front sliding part
(4) can be pushed onto the front swivel arm from above.
- Then secure the rear sliding part with a fixing ring (5) and the relevant star handle
bolt.
Once the first part of the beam has been assembled, it is initially aligned:
- The centre element is now aligned horizontally using the fixing rings on the
swivel arms, and also with the fixing rings on the big ski brackets if necessary.
- Next, the centre element is aligned by rotating the swivel arms parallel to the
paver finisher.
- Finally tighten all securing bolts.
