E11 35
6. Limit switch
6.1 Auger limit switches (left and right) – mouting the PLC version
The auger's ultrasonic limit switch is
mounted on both sides on the side
board's handrail.

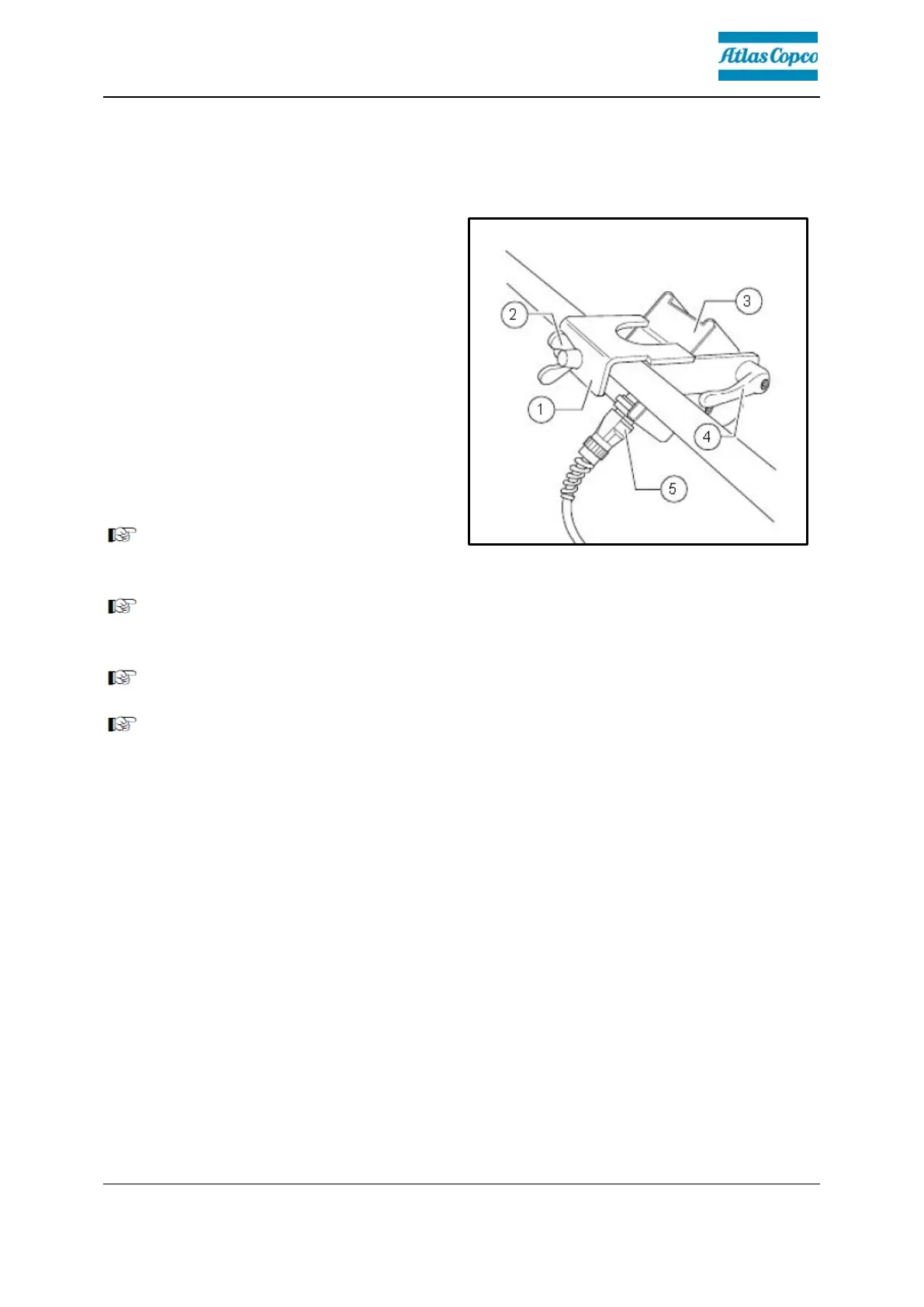

- Place the sensor bracket (1) onto the
handrail, align it and tighten with a
wing bolt (2).
- Align the sensor (3) and secure with
a clamping lever (4).
- Connect the left or right sensor's
connection cable (5) to the intended
remote control bracket sockets.
The connection cables are connected
to the relevant sockets on the remote control bracket.
The sensors should be adjusted so that 2/3 of the augers are covered with the
paving material.
The paving material must be conveyed over the full working width.
We recommend adjusting the limit switch positions during material distribution.
