F31 4
Check / replace chain:
Chain (4) become slack after long-term
wear, which cause chain can not get
tightened to correct tension position.
Meanwhile, to avoid chain over slacked
and cause not well-engaged and
unapproached, chain have to be replaced in time.
Chain links must not be removed to shorten the chain!
Replace bottom plate
The bottom plates must be
replaced when the wear limit of 5mm
has been reached.
1） Remove conveyor deflector (1)
bolts and open the bottom plate (5),
remove the conveyor deflector.
2） Open the joint of chain (4), expand
the chain along the vechicle direction.
3） Replace bottom plate (5).
4） Install 1, 3, 4 back to their original
position, tighten conveyor deflector
bolts.
1

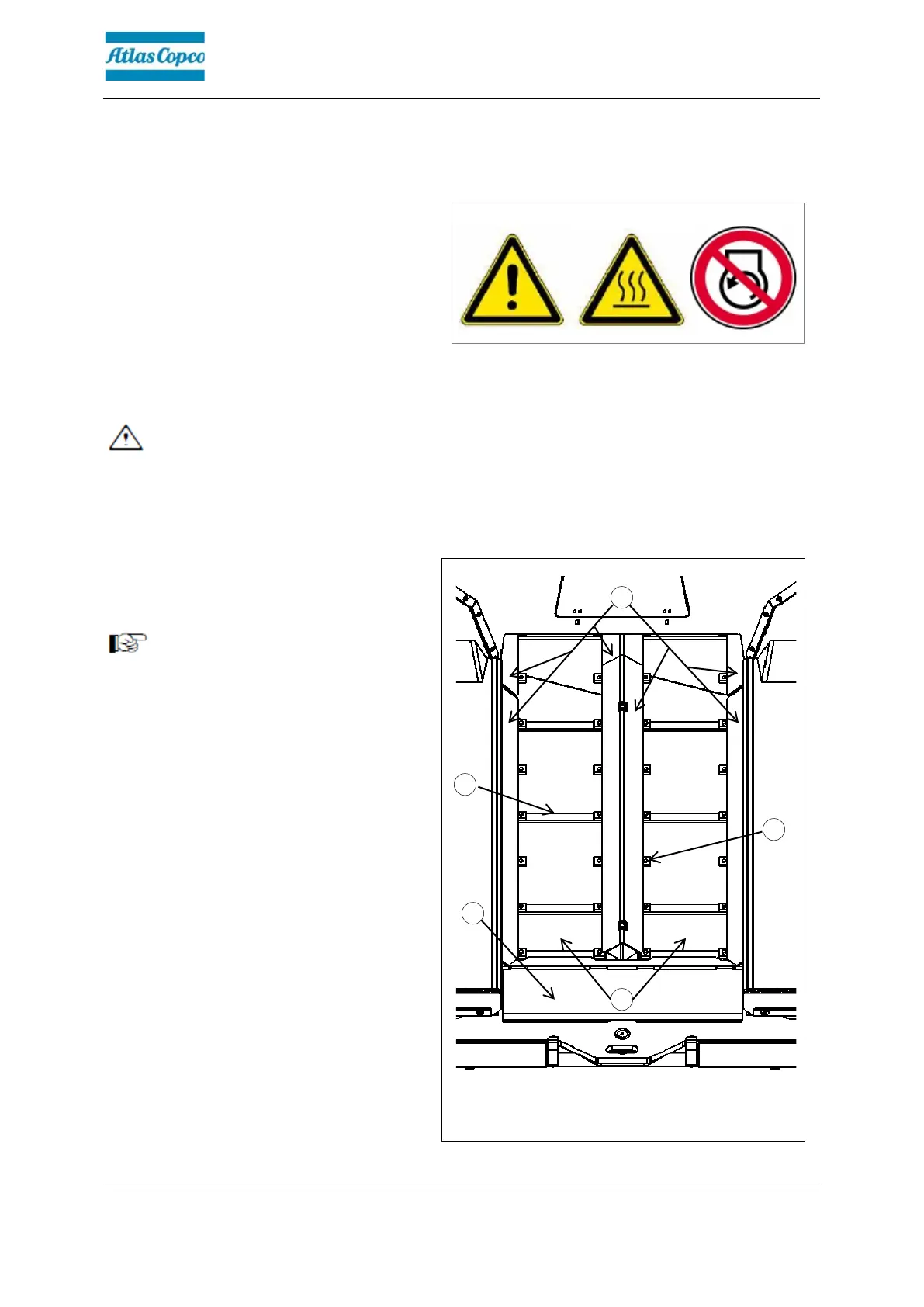

1.Conveyor deflector 2.conveyor 3.Guard plate
4.
chain 5.Bottom plate
