C11 11
5
Loading by crane
Use only lifting gear that can bear the load.
(See chapter B for weights and dimensions).
Attachment and loading equipment must meet the conditions of the applicable
accident prevention regulations!
The vehicle’s centre of gravity is dependent on the screed which is mounted.

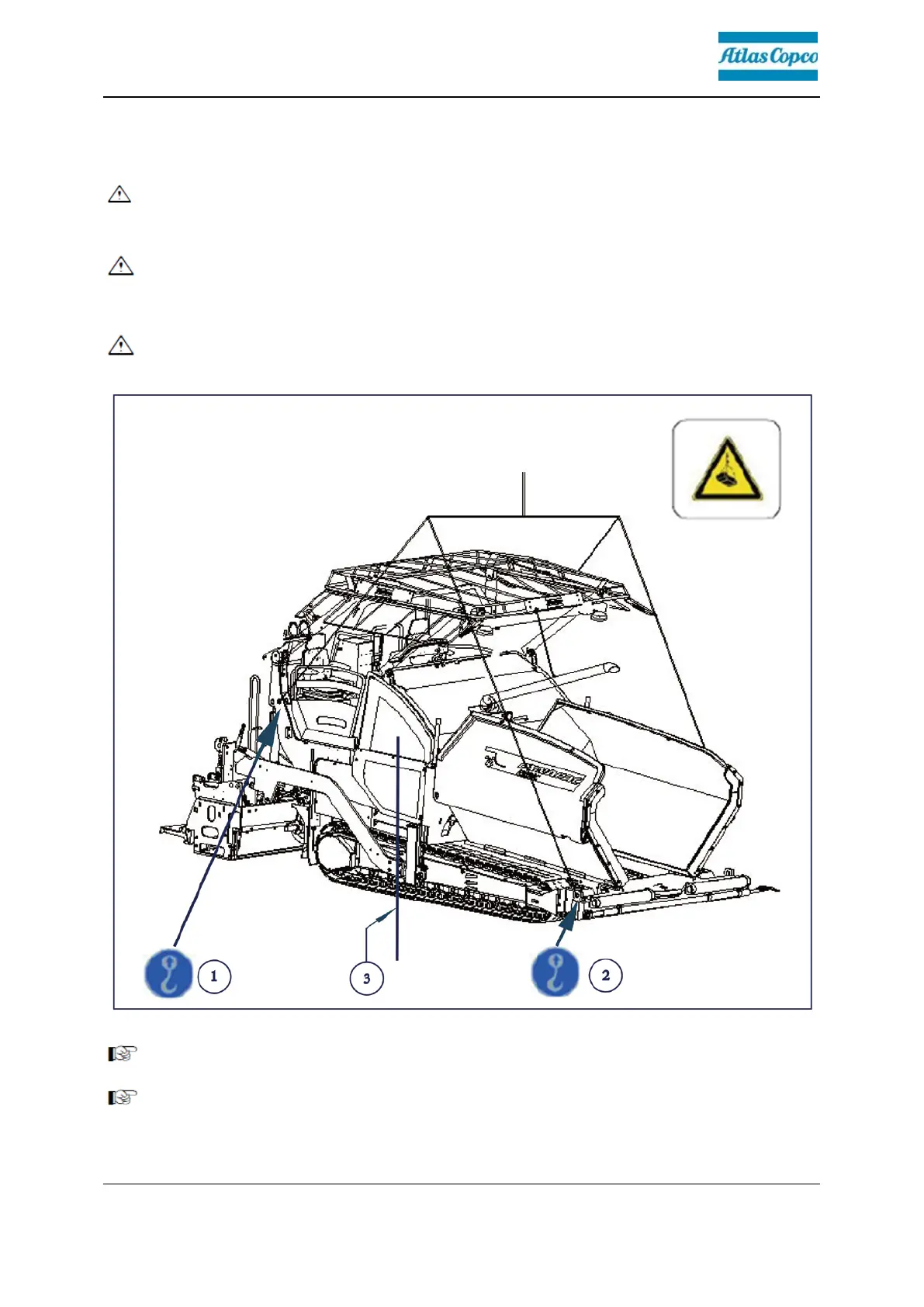

Four lifting eyes (1, 2) are provided for loading the vehicle with a crane.
Depending on the type of screed which is used, the paver finisher’s centre of
gravity, with the screed mounted, is located in the area of the drive unit’s rear
reversing roller (3).
