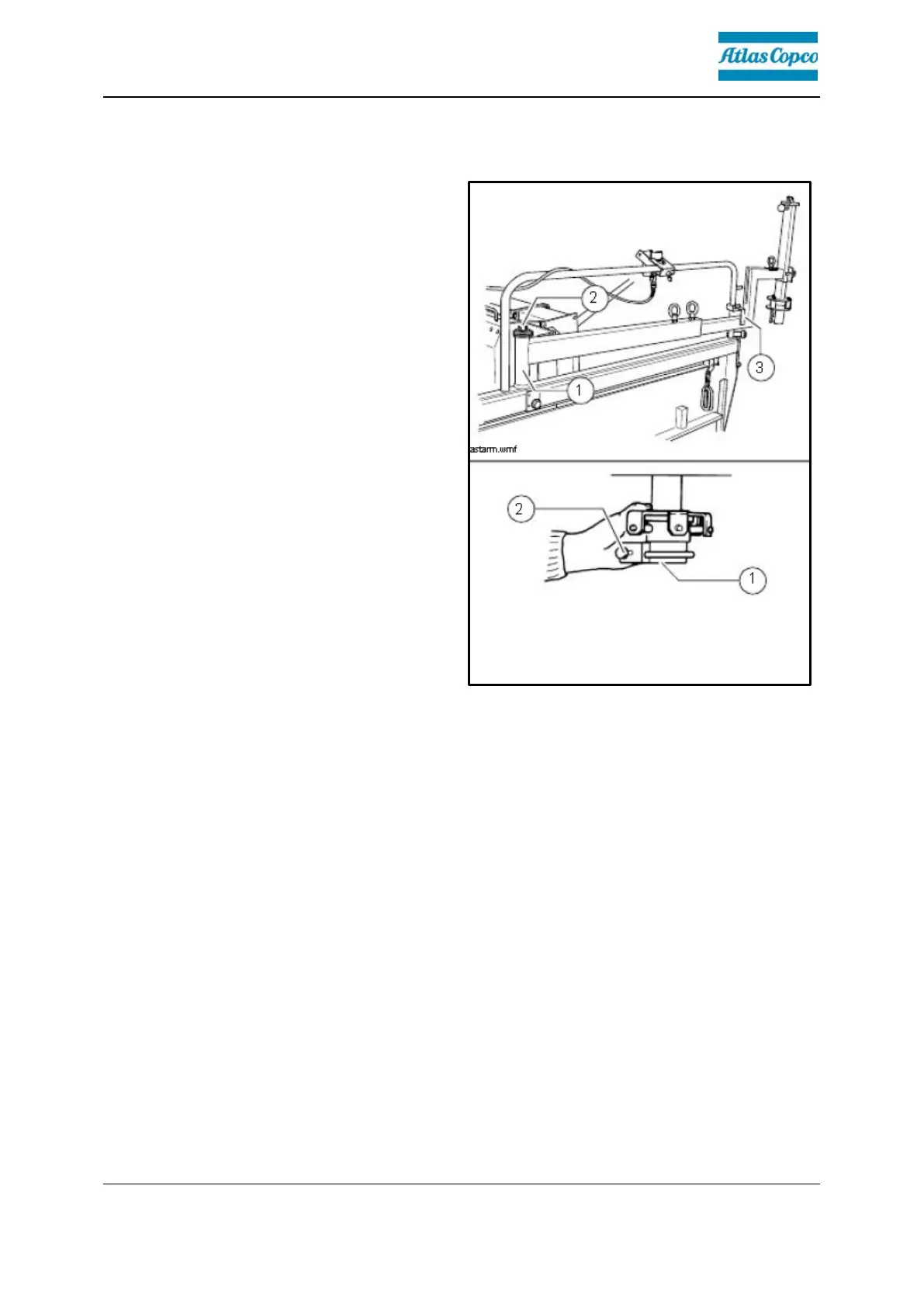

5.2 Mounting the sensor arm
- Position the sensor arm mounting
(1) on the corresponding journal of
the screed side board.
- Tighten the pin (2) so that the sensor
arm is just still able to swivel.
5.3 Mounting the grade control system
Insert the grade control system into
the clamp bracket (1) and secure with
the clamping bolt (2) to prevent
rotation.
