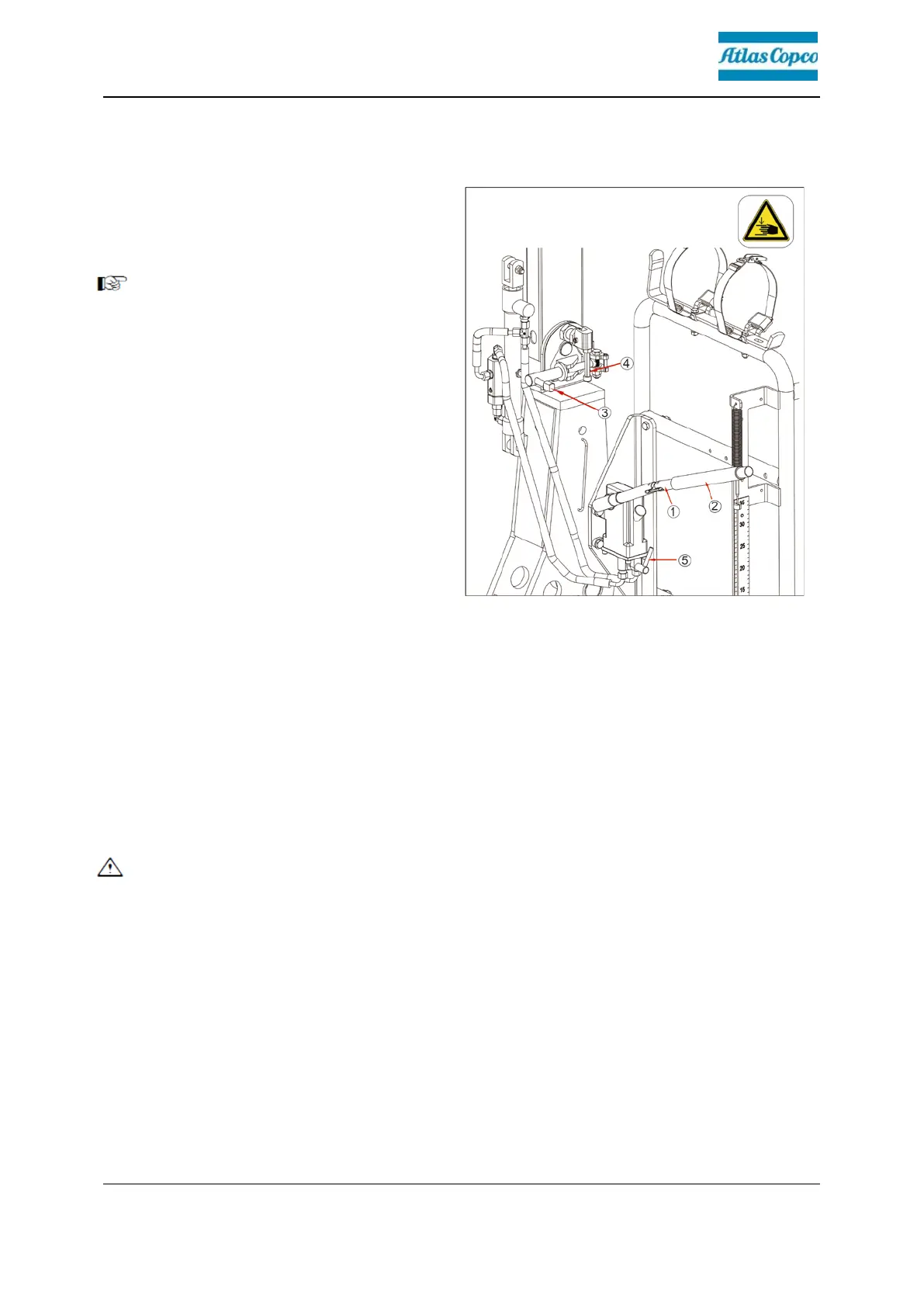

3.2 Fibre glass roof (O)
The fibre glass roof can be raised and
lowered with a manual hydraulic
pump.
The exhaust pipe is lowered or raised
together with the roof.
- Remove the lower section of the
pump lever (1) from the storage
compartment, and connect to the
upper section using a pipe (2).
- Lower the roof: the locks (3) on
both sides of the roof must be
released.
- Raise the roof: the locks (4) on
both sides of the roof must be
released.
- Set the adjustment lever (5) to the ‘raise’ or ‘lower’ position.
- Raise the roof: the lever points forwards.
- Lower the roof: the lever points backwards.
- Operate the pump lever (1) until the roof has reached the upper or lower limit
position.
- Roof in uppermost position: set the locks (3) on both sides of the roof.
- Roof lowered: set the locks (4) on both sides of the roof.
Duing the process of raising / lowering the protective roof, always keep away from
the roof coverage when operate the manual hydraulic pump/pump lever.
