D30 13

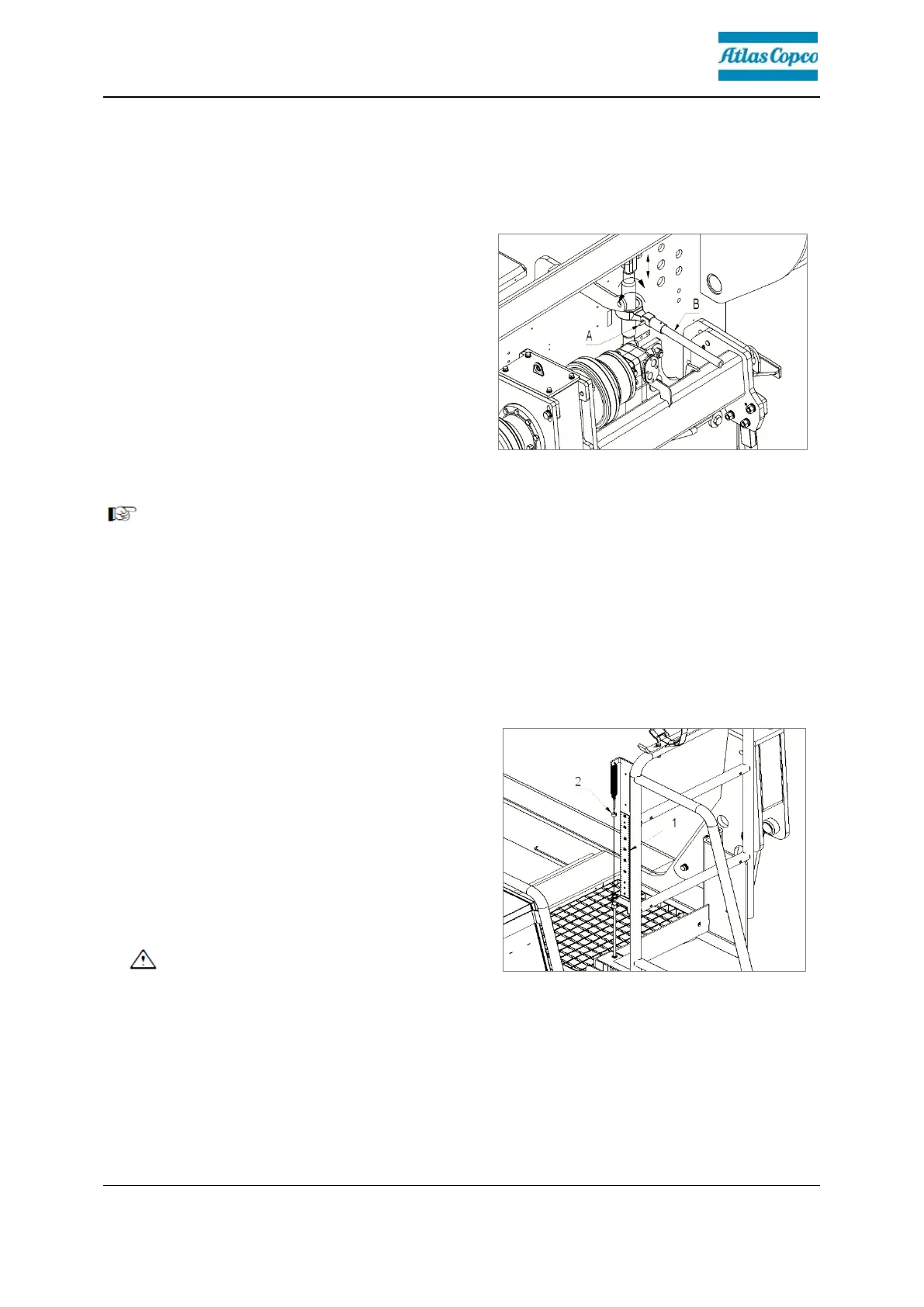

Auger height adjustment ratchet
Mechanical adjustment for the auger height.
Set the ratchet direction lever A to the
clockwise or anti-clockwise direction.
Turning anti-clockwise lowers the auger,
turning clockwise lifts the auger. Actuate
the ratchet lever B. Set the desired height
by alternatingly actuating the left and right
ratchets.
— The current height can be read on
both auger height indicators.
Observe the notes on adjusting the auger height in the chapter "set-up and
modification"!
Auger height indicators
As shown in pic., auger height indicators.
(1) is the scale and display in mm，the
auger height can be ready off. Item (2) is
the adjustable indicator which can be
move to the desired position.
When setting the auger height,
adjustment must be carried out evenly on both sides to prevent the auger from
jamming!
